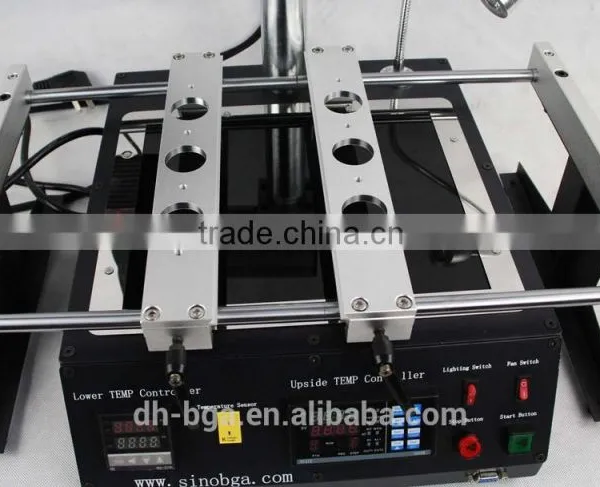

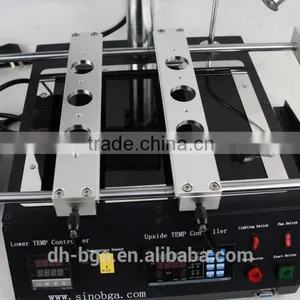

Bga reball machine DH-6500 infrared welding system with digital panel meter repair machine
| Detail pictures: |
|
Specification: |
- Total Power: 2300W
- Top heater: 450W
- Bottom heater: 1800W
- power: AC 110V / 220V
- Positioning: V-groove, PCB support
- Temperature control: K Sensor, Closed loop
- Temp accuracy: ±2 degree
- PCB size: Max 270x320mm Min 20x20mm
- BGA chip size: 5*5~55*55mm
- Minimum chip spacing: 0.15mm
- Dimension: approx 480x370x390mm
- Net weight: Approx 15.5KG
| Features |

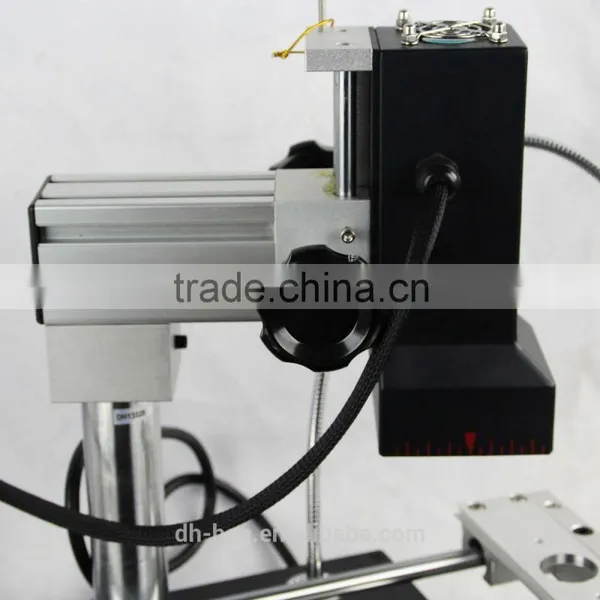

1.Adopt two-zone design: top infrared heating, bottom ceramic infrared pre-heating zone.
2.Two independent high precise digital panel meter controllers, can store 10 groups of temperature profiles. 8 segments (up/down) + 8 segments constant temperatures in one group.
3.High precise K-type thermocouple close-loop control + automatic temperature compensation system to enable precise temperature deviation on ±2℃.

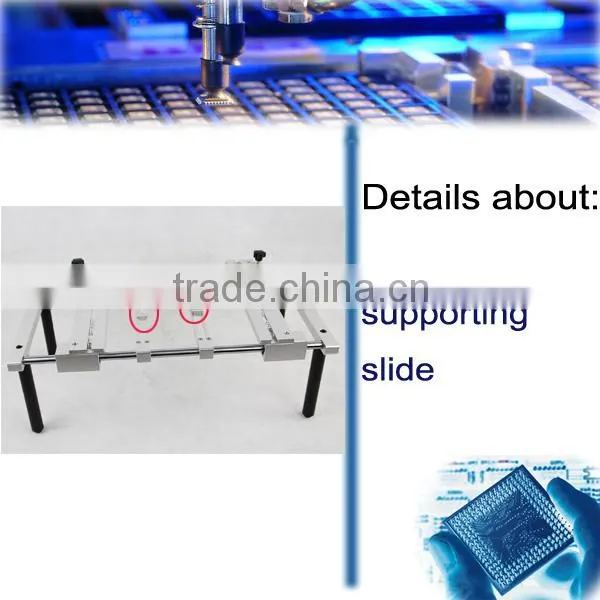

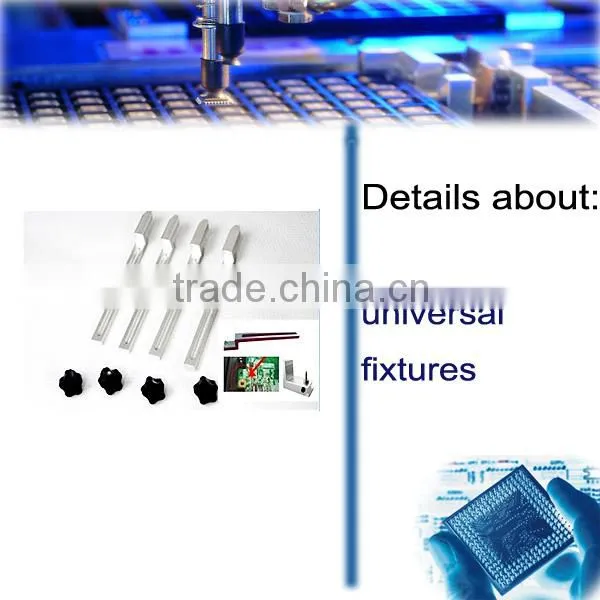

4.V-groove PCB table + universal fixture suitable for all kinds of PCB repairing, rapid, convenient and accurate positioning,

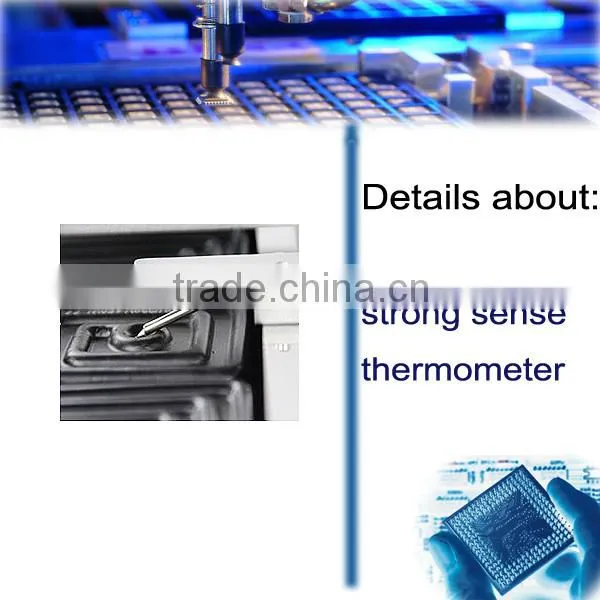

5.External Temperature Sensor, detect actual temperature of pcb and bga, adjust and correct temperature conveniently.
6.With powerful cooling fan, fast cooling for pcb and machine after heating.
7.With Voice warning 5-10 seconds before heating finish: remind operator to pick up bga chip on time.
8.Double protection: Overheating guard + emergency stop function.
9.CE certification approval.
| Accessories: |
| Packing: |
:
| Certification: |
| About our: |
Warranty and after-sale service:
1. We provide you the friendly English User manual for free.
2. Videos of operating the machine are available.
3. 24 hours technical support by email or calling. We promise to response in 3 minutes, solve the problems in 24 hours.
4. Warranty: 1 year free for the whole machine, 3 years free for the heaters and free life long for technical support always.
We always answer your questions: 24 hours a day, 7 days a week.
