Automatic soldering stations made in China for after-sale service of mobile, projector and TV etc. across the world
Specifications:
Power |
6800W |
Top heater |
Hot air 1200W |
Bottom heater |
Hot air 1200W,Infrared 4200W |
Power supply |
AC220V±10% 50/60Hz |
Dimensions |
L1022*W670*H850 mm |
Positioning |
V-groove, PCB support can be adjusted in any direction and with external universal fixture |
Temperature control |
K type thermocouple, closed loop control, independent heating |
Temp accuracy |
±2°C |
PCB size |
Max 500*400 mm Min 22*22 mm |
Workbench fine-tuning |
±15mm forward/backward,±15mm right/left |
Camera magnification |
10x-100x |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |

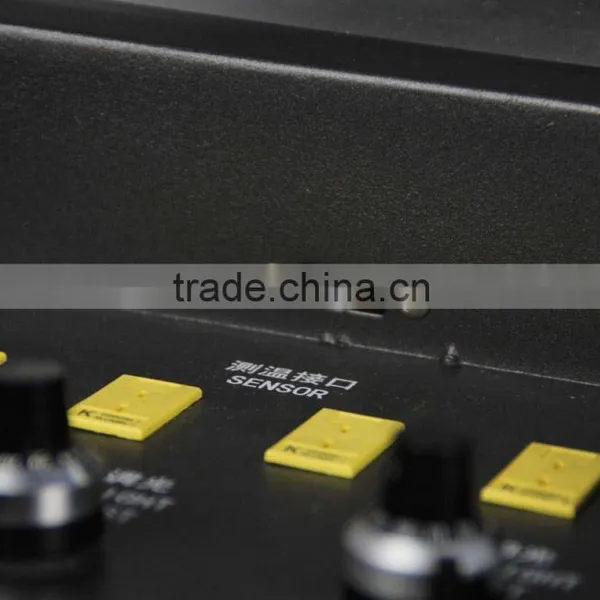

External Temperature Sensor |
1-5(optional) |
Placement Accuracy |
±0.01MM |
Net weight |
95kg |

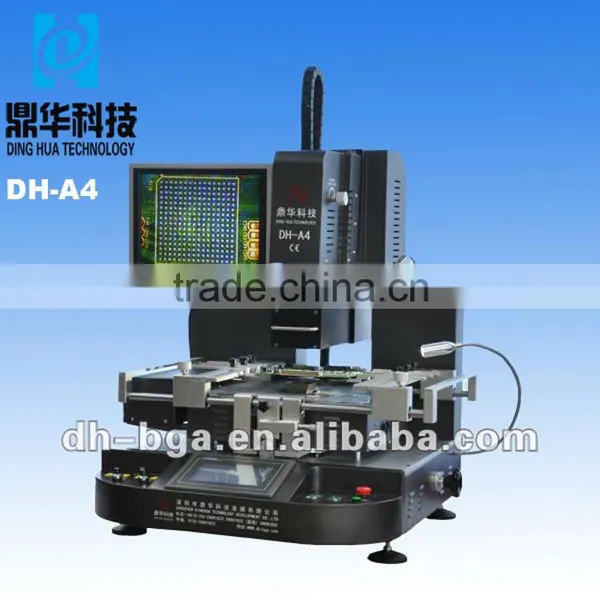

A4 Main Features
lHD touch screen interface, PLC control
lHD color optical alignment system, optical zoom up to 30 times. Alignment can move around to enlarge BGA observation range, fine-tuning accuracy can be 0.01mm
lTop heater and nozzle 2 in 1 design, alignment, placement, welding and remove automatic. Top heater height can be adjust after auto process, user-friendly. Placement height and height of top heater can be set or detect auto.

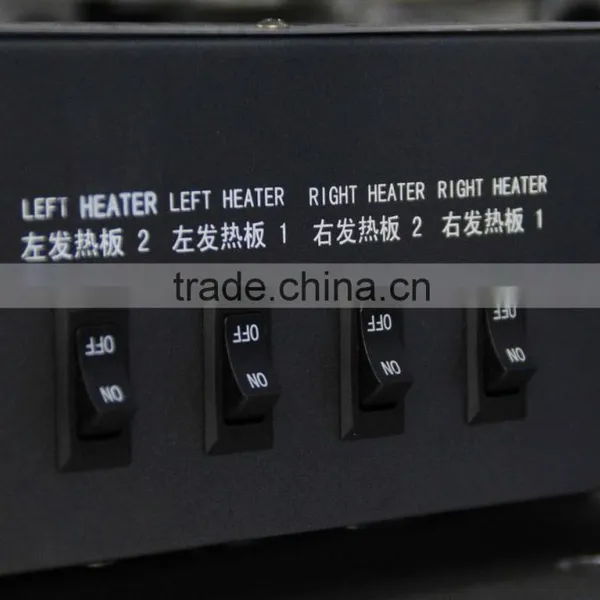

lThree independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
lK sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
lHot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
lV-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
lPowerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
lSound hint system. There is an alarm before the completion of each desoldering and soldering.
lCE certification, with emergency switch and automatic power-off protection device when emergency happens
Accessories
item |
name |
quantity |
unit |
1 |
Universal fixture |
6 |
pcs |
2 |
Plum blossoms knob |
6 |
pcs |
3 |
Supporting screw |
6 |
pcs |
4 |
Vacuum pad |
1 |
pcs |
5 |
Vacuum sucker |
3 |
pcs |
6 |
Nozzle 31*31(upper) |
1 |
pcs |
7 |
Nozzle 38*38(upper) |
1 |
pcs |
8 |
Nozzle 41*41(upper) |
1 |
pcs |
9 |
Nozzle 55*55(lower) |
1 |
pcs |
10 |
Nozzle 34*34(lower) |
1 |
pcs |
11 |
Brush |
1 |
pcs |
12 |
Manual |
1 |
pcs |
1. We provide you the friendly English User manual for free.
2. Videos of operating the machine are available.
3. 24 hours technical support by email or calling. We promise to response in 3 minutes, solve the problems in 24 hours.
4. Warranty: 1 year free for the whole machine, 3 years free for the heaters and free life long for technical support always.
We can accept Western Union, PayPal, T/T payment. If you want other payment methods, please kindly inform us.
