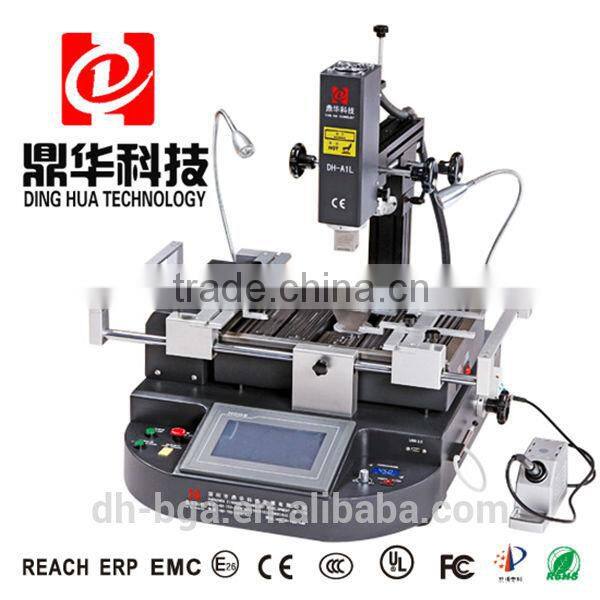

Dinghua mobile phone bga rework system with HD touch screen soldering iron DH-A1L
Specification of bga rework equipment DH-A1L:
- Total Power: 4900W
- Top heater: 800W
- Lower heater: 1200W Bottom heater: 2700W soldering iron: 80W
- power: AC 110V / 220V
- Positioning: V-groove, PCB support
- Temperature control: K Sensor, Closed loop
- Temp accuracy: ±2 degree
- PCB size: Max 420x400mm Min 20x20mm
- BGA chip size: 2*2~80*80mm
- Minimum chip spacing: 0.15mm
- Dimension: approx 640*630*560mm
- Net weight: Approx 42KG
1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.
2.It uses precise K-type close circuit control and automatic temperature adjustment system, with PLC and temperature module to enable precision temperature control of ±2 degree. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.
3.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
4.Flexible and convenient removable fixture on the PCB board which protects and prevent damage to PCB. It can also adapt to rework various BGA packages.
5.Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement;
6. Three temperature areas can independently heat and are multiple controllable and adjustable to ensure best integration of different temperature areas. Heating temperature, time, angle, cooling and vacuuming can all be set on the interface.
7.There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are all accessible via touch screen. Three heating areas adopts independent PID calculation to control heating process to enable more accurate and precise temperature control.
8.Temperature rise more balanced, temperature more accurate
9. It uses high powered blower to enable fast cooling of PCB board and prevent it from deformation. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.
10.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up
11. Laser positioning, it's more precise. Soldering iron, more convenient to operate.
12.CE certification, with emergency switch and automatic power-off protection device when emergency happens.
Detail picture of bga rework equipment DH-A1L:
| |

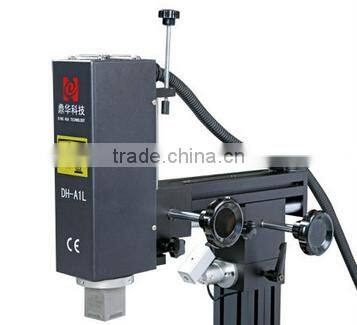

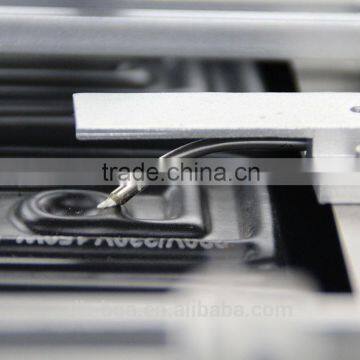

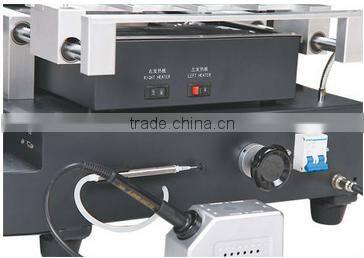

| upper heater | soldering iron |
| |

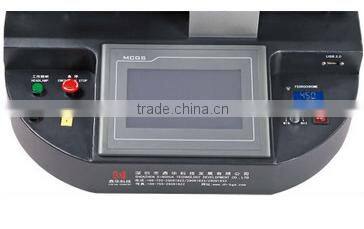

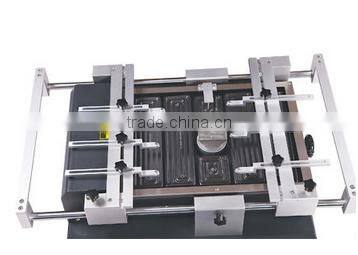

| PCB support | HD touch screen |
