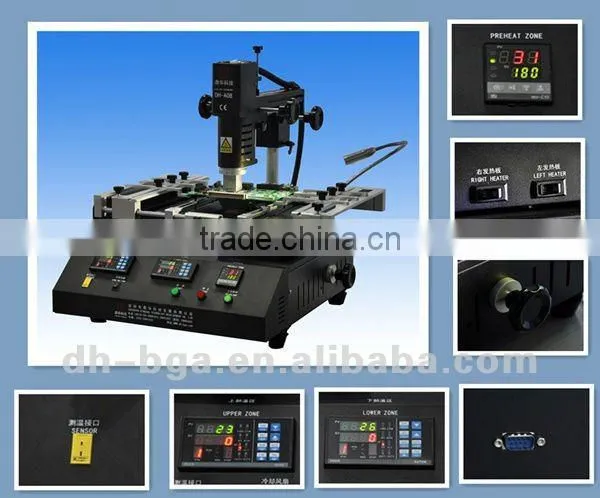

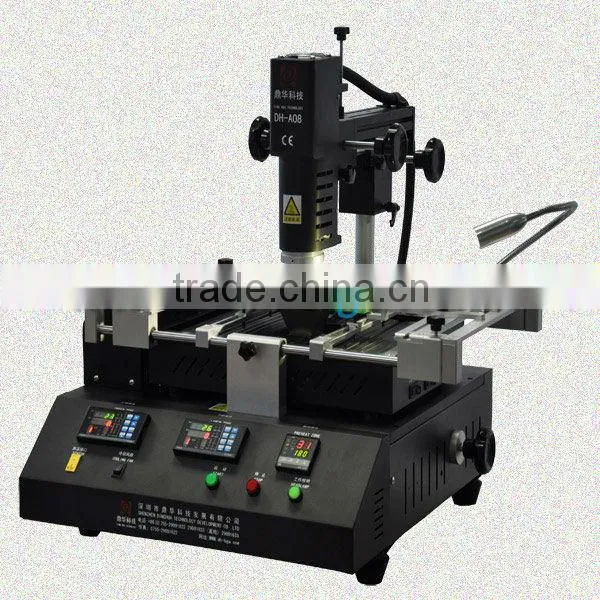

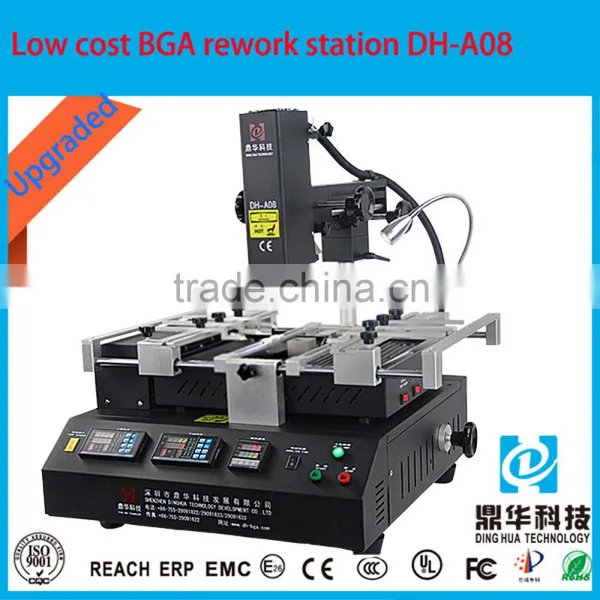

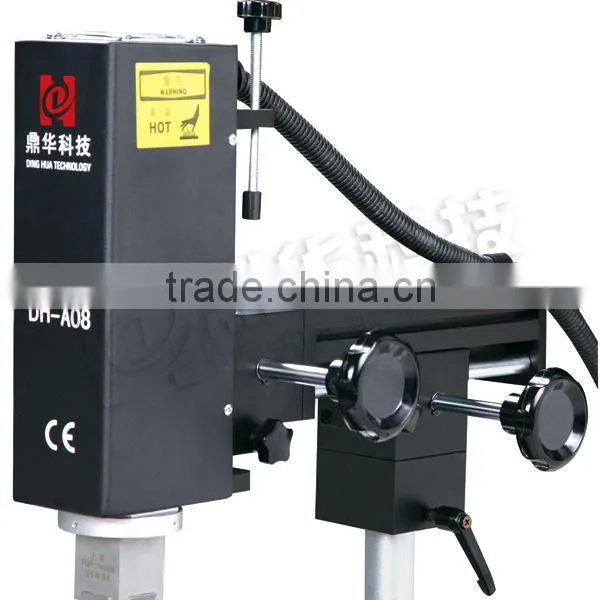

Dinghua DH-A08 bga soldering station high frequency welding machine for smart equipment
DH-A08 Specification
Total Power |
4800W |
Top heater power |
800W |
Bottom heater |
2nd 1200W, 3rd IR heater 2700W |
Power supply |
AC220V±10% 50/60Hz |
Dimension |
L570*W600*H600 mm |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control way |
K-type Sensor, Closed loop controlled |
Temp accuracy |
±2 degrees |
PCB size |
Max 400*350 mm Min 22*22 mm |
BGA chip |
5*5-55*55 mm |
|
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1(optional) |
Net weight |
30kg |
DH-A08 Main Features:

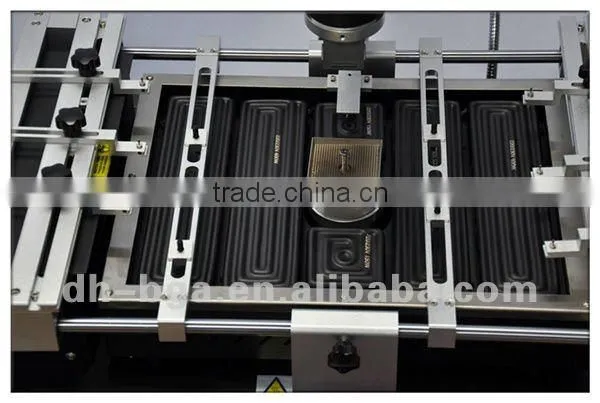

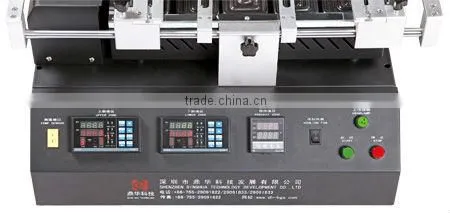

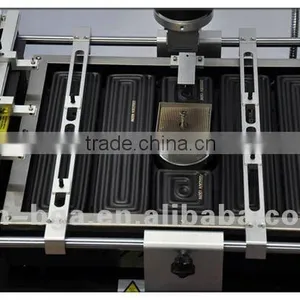

1. Designed in 3 temperature control. Upper and bottom are hot air heating, preheating area is IR heating. All control temperature individually with high precision temperature control panel.
2. It uses precise K-type thermocouple and close circuit control and automatic temperature adjustment system, with temperature module to enable precision temperature control of ±2 degrees. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.

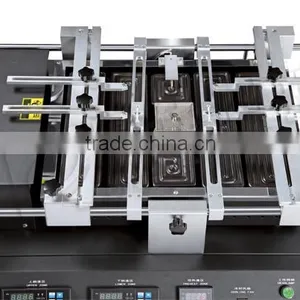

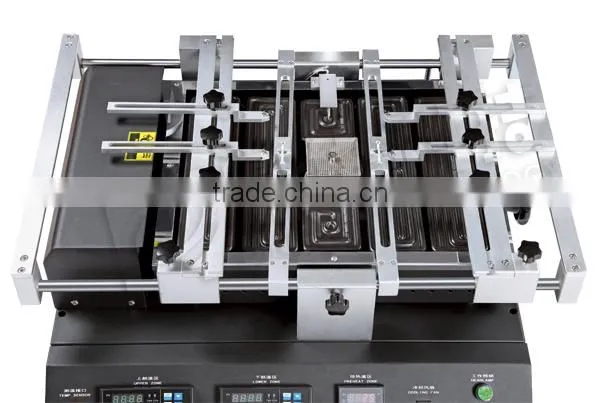

3. V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board
4. Flexible and convenient removable fixture on the PCB board which protects and prevent damage to PCB. It can also adapt to rework various BGA packages.
5. Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement, customized is avalibale.
6.8 segment temperature up (down) +8 segment constant temperature control. And can set 8 temperature up and down at the same time .Can save up to 10 sets of temperature settings simultaneously. External temperature sensor enables timely control, adjust and managing every temperature data.
7. Before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. After uninstalling or welding, high capacity horizontal airflow fan manually or automatically cools down PCB to prevent PCB deformation and ensure quality of welding.
8. CE certification, with emergency switch and automatic power-off protection device when emergency happens
Standard accessories of our machine
The machine is used for melting soldering balls on chips
Lead soldering ball and flux paste
Reballing holder/table 80*80mm
Reballing stencil 80*80mm
