LC-UV-4000S2 Round/Plane Surface UV Drying Machine

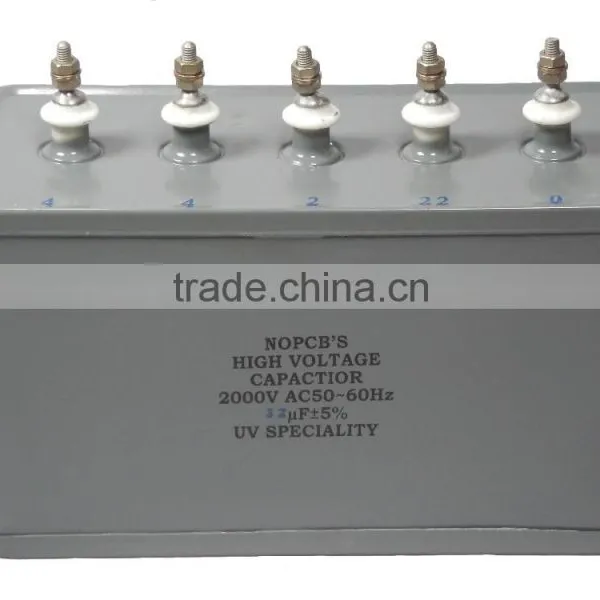

uv machine Capacitance
video link:
ttp://youtu.be/pSZfMFvkKxs
Specifications: | |
Max width of Work piece |
400mm |
Max height of Work piece |
320mm |
Conveyer size of Machine Inner |
400X120mm (WXH) |
Bottle mouth diameter |
12-24mm |
Conveyer size |
400mm |
Output |
1800~3000Pcs/Hr |
Conveyer transfer speed |
0-10m/min |
UV lamp power |
4KW |
General power |
5KW |
Power supply |
AC 380V/ 50Hz, 3-Phase |
Machine dimension |
2100X750X1810mm (LXWXH) |
Machine weight |
353kg |

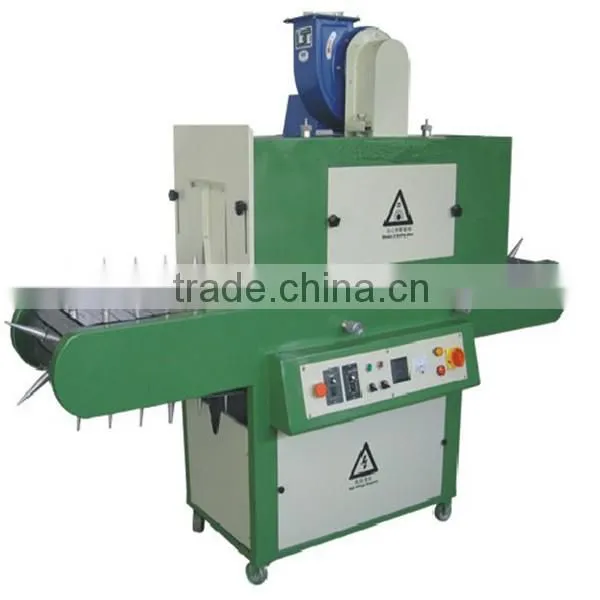

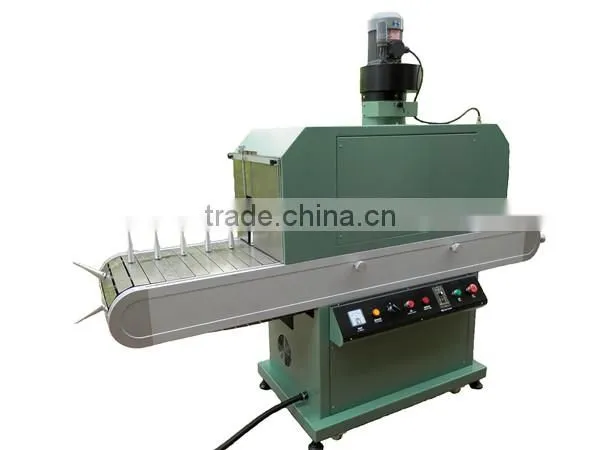

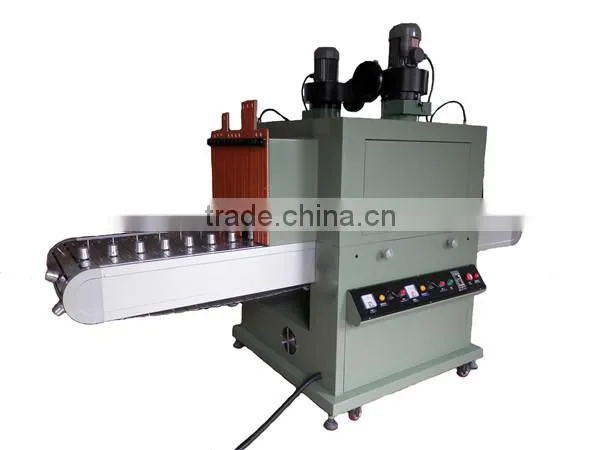

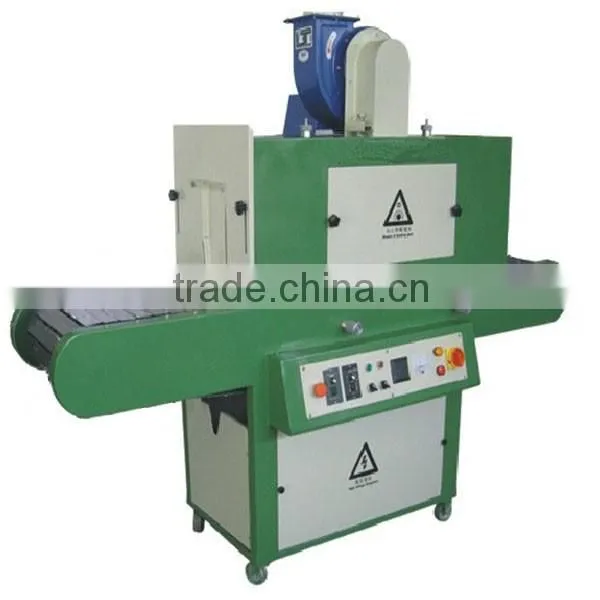

LC-UV-4000S2
Flat and Round UV Curing Machine
Application:

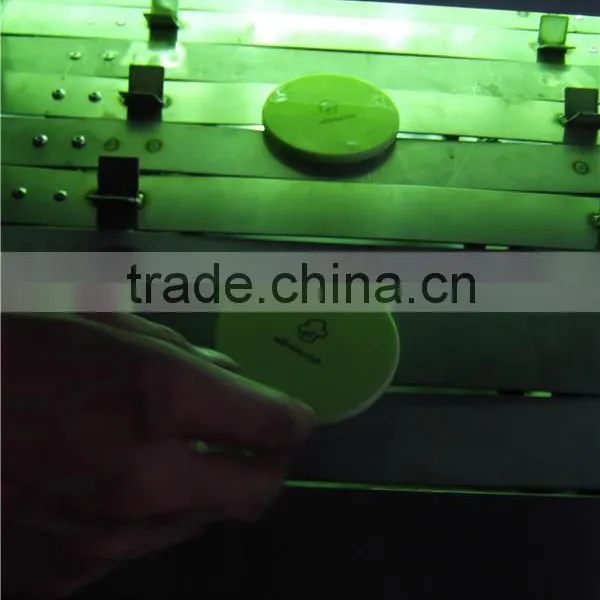

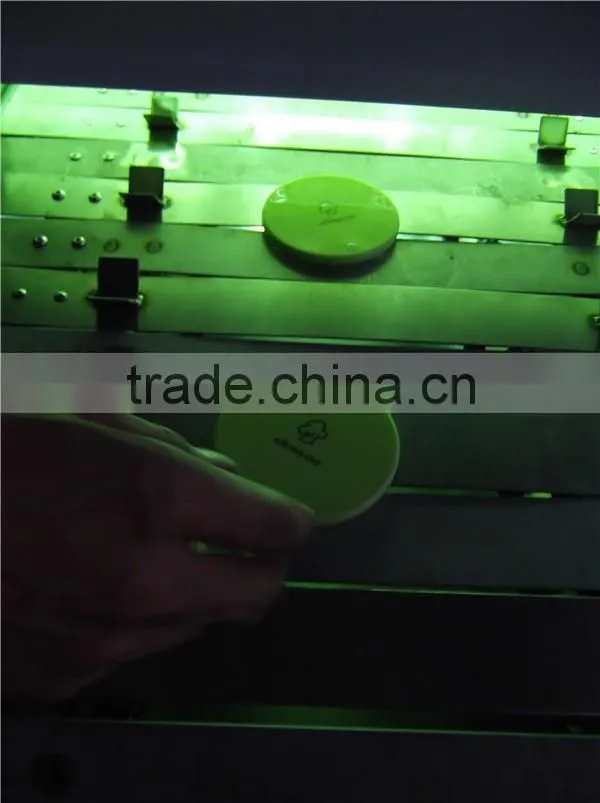

LC-UV-4000S2 Flat and Round UV Curing Machine is used for flat and round surfaces UV curing, it suite for bottle surface UV ink drying solid process and flat surface UV ink drying solid process.
Such as various of UV ink,UV adhesives,UV paint curing.
Features:
(1) With the high efficiency UV light, it can finish the UV curing quickly, the high level of UV light can be adjusted, and setting the right parameters for UV curing.
(2) LED display shows the conveyor running speed, convenient to process operation.
(3) The machine body adopts the extra-thick stainless steel for hardness and durable.
(4) UV lamp and transformers which are imported from United Kingdom that fit for special ventilation design, which can be max effectiveness.
(5) It suited for different UV curing process. This series of products is different with the traditional high-power, high-power UV equipment. In order to reduce the cost and improve output for our customer.
Packaging & Delivery
Packaging Detail: Wooden case
Delivery Time: Within 6 days after confirm payment
LC-UV-4000S1 Flat and Round UV Curing Machine
Tamprinter Printing Machinery Group Limited
As one of the most professional special printer supplier of Plastic Field in China,we have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification.
Due to business expansion, Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products : Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Advantages:
1. All the electrical components and control system are from Germany and Japan, guarantee the stable quality of the print.
2. Multi-purpose microcomputer operating panel and touch screen operation can easily achieve man-machine dialogue.
3. As high quality steel frame structure and High temperature of the lacquer that bake, so that our printer is light and solid, beautiful and practical.
Market Area:
More than 80 countries. Encluding Europe, the United States, Canada, Southeast Asia, the Middle East, etc. We cooperate with Omron, Emerson and Ruigao light, which are the world famous enterprises.
