Home > Products > Pad printing machine > TM-C1-1020 Mini Tabletop 1 Color Sealed Cup Tampo Printer
TM-C1-1020 Mini Tabletop 1 Color Sealed Cup Tampo Printer
- 50 Set / Sets per Month
- Shenzhen China
- T/T Credit Card PayPal
- TM-C2-MT Two Color Pneumatic Ink Cup Tampo Printer with Conveyor
- TM-C4-P 4 color base ball pad printer
- TM-S4 4-color ink cup lego printing machine
- TM-150s 1 color rolling printer for cup printing
- TM-S2 2-color ink well pad printing machine for SD card printing
- TM-S4N independent pad strokes lego printing machine
Product Details
Condition: | New | Plate Type: | Gravure | Place of Origin: | Guangdong, China |
Brand Name: | Tamprinter | Model Number: | TM-C1-1020 | Usage: | Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer |
Automatic Grade: | Semi-Automatic | Voltage: | 220V 60/50Hz | Gross Power: | 35W |
Dimensions(L*W*H): | 510X310X420mm (LXWXH) | Weight: | 200kg, 45kg | Certification: | CE Certification |
After-sales Service Provided: | Overseas third-party support available |
Packaging Details
plywood,TM-C1-1020 Mini Tabletop 1 Color Sealed Cup Pad Printer
Product Description

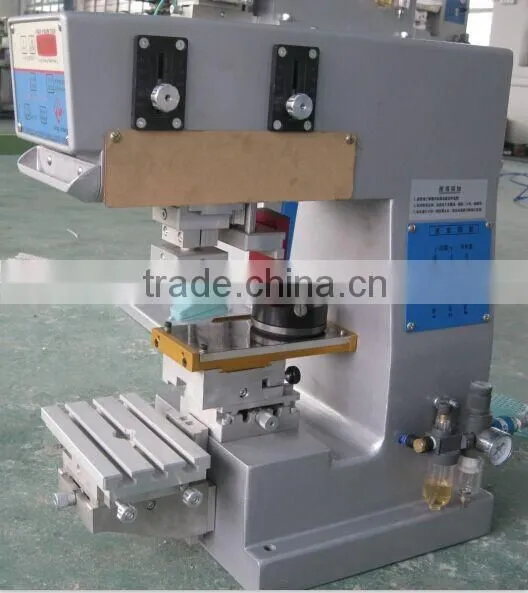

TM-C1-1020 Mini Tabletop 1 Color Sealed Cup Pad Printer
Technical Parameters
Plate area | 100*200mm |
Ink cup diameter | 90mm |
Max printing area | 80*80mm |
Max printing speed | 1500pcs/hr |
Power | 220V 50Hz, 35W |
Dimensions | 510X310X420mm (LXWXH) |
Weight | 45kg |
Desktop Pad Printer TM-C1-1020 is well suitable for pad printing on pens, toys, cups, cosmetic container, gift crafts, ball, mobile phone keypad, computer keyboard, household appliances etc.
Advantages:
1, It is with closed ink cup, can save 60% ink and 90% thinner comparing with open ink plate.
2, Desktop pad printer with close ink cup has advantages of beautiful exterior, small, easy operating, high quality, environment friendly /acceptable, competitive price, useful for small products, such as toys, pen, stationery, gift, etc.
Features:
1, Tabletop type pad printing machine;
2, With coin aluminum structure ensure more stabilization and long life.
3, Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate;
4, Both thick steel plates and thin steel plates installed, Choose according to customer requirements.
5, Can print almost small size objects. So sold very nice in the world.
6, Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
Company Profile

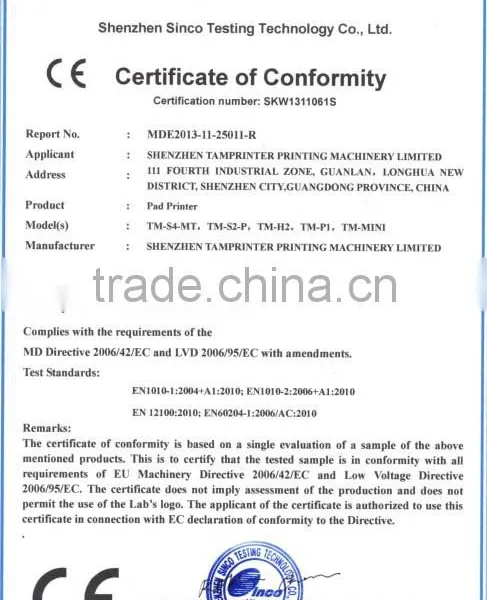

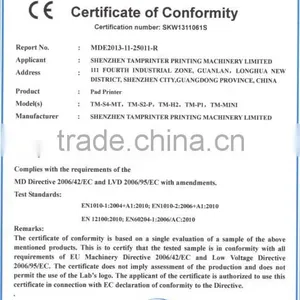

Tamprinter printing machinery group limited is one of the most professional special printer supplier of Plastic Field in China. We have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification.
Due to business expansion, Shenzhen Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products: Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Major market: Globle.
Business scopes:
1. Research, develop, produce and sell: Pad printer, Screen printer, Heat transfer machine, Hot stamping machine, Pre-post printer(UV curing machine, Flame treatment machine ,UV exposure clich machine, Coating emulsion machine, Silk mesh tighten machine, Screen stencil drying oven, Silk screen frame exposure machine, Steel pad plate oven, IR oven, IR drying tunnel conveyer, ) ;
2. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting ;
3. Valet Manufacture: flame treatment gun,screen frame, Screen Stencil,pad, steel plates, film , Drying Racks Trolley and the relative moulds, jigs and parts;
4. Sale by proxy the relative supporting materials: printing ink, Ink Adjustment tool, Rubber pads Materials, Pad Printing Blade, ink cup and ring, Pad holder, ink roller, Screen Silk, Aluminium Screen Frame, Rubber Squeegee, sensitive emulsion, Emulsion Coating tool, Etching powder, Sensor Switch, Tension meter,Spraying gun, Circuit board, Inkwell, Solenoid Valve, hot stamping foil ,High temperature tape,Stamp plate,Silicon rubber roller,Heat transfer paper,High temperature glue, UV lamp ,UV lamps Trigger etc;
5. Our engineer can communicate with clients at anytime in english, design development use UG, Proe, Autocad, Mastercam ;
6. Import and export business of the above items.
