Product Description

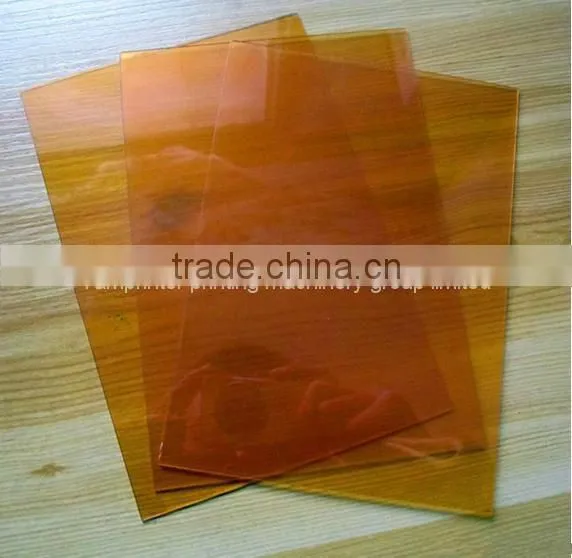

Hot stamping Water Washout Polymer cliches plate
Polymer cliches - Water Washout Photographic plate
Supply photographic plate is used for
1, Pad printing machine ,
Only for uv ink ,oily ink.
Not for Water-based ink,alcohol ink.
If need to perforated metal for locate,pls give us drawing.
2, Hot stamping machine,
3, Not for flexo.
4, What size of length, width, thickness ?What brand ,quantity, delivery?
5, Can be divided, Size according to customer requirements.
A. ORIGIN: Japan, brand: Toyobo.
Steel base Photographic plate, pad printer plate,
photopolymer plate, Sensitive resin version ,Flat printing, washable nylon printing plate , Washed with water plate, alcohol wash out plate, printing plate
size: 594X420*0.43mm(A2) 20PCS/package
EXW price: USD63~80/pcs, more order more discount.
Closed cup is available as well as doctor blade with excellent durability because of highly cross-linked photopolymer.
Key advantages
1 Easy processing
Possible to make plates in house due to easy and short processing.
2 Water washable
No necessity of any toxic solvent. Just water!
3 High reproducibility
Allow to print very fine dots and lines. Our recommendation is to use 95%/300lpi screen film.
4 High durability

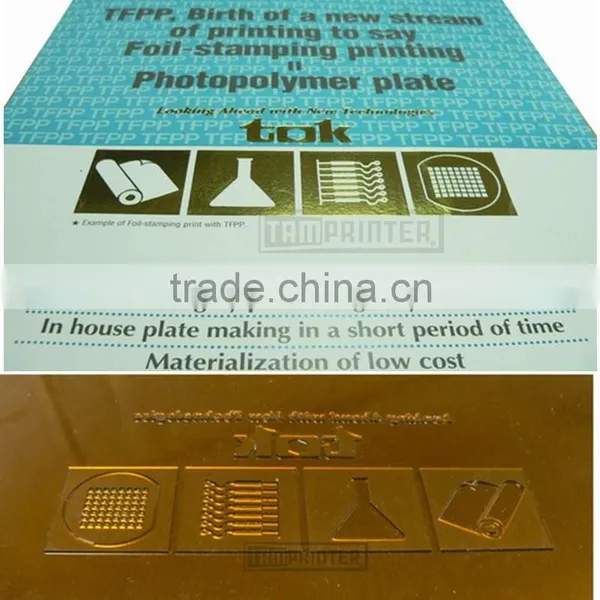

B. ORIGIN: Japan, brand: TOK
Water wash photopolymer plate , hot stamping plate
size: A4(297*210x1mm) 20PCS/package EXW price: USD31-40/pcs
|
Resolving capability
|
Minimum dot image
|
Minimum line image
|
133LPI |
0.20mm
|
0.04mm
|
Type |
Base Mtl. |
Mtl. Plate Thickness |
Relief Depth |
Base Mtl Thickness |
TFPP-100 |
Steel |
1.00mm |
0.68mm |
0.32mm |
TFPP-130 |
Steel |
1.30mm |
0.98mm |
0.32mm |
TFPP-145 |
Steel |
1.45mm |
1.13mm |
0.32mm |
C. Made in China, brand: Tamprinter.
Resin version, Photopolymer, Water-soluble solid photopolymer plate, Optical resin version, Quality resin plate
| exposure time | 4~8min |
| Washout time | 3~6 min |
| Washout Water Temperature | 40°C~50°C |
| Bake plate Time | 20~40 min |
| Bake plate Temperature | 60°C~80°C |
| Second exposure time | 5~10 min |
| Photosensitive layer height | 0.8~1.3mm |
size: A4(297*210x1mm) 20PCS/package
size: 594X420*0.43mm(A2) 20PCS/package
Can arbitrarily cut,EXW price: Min 5$/pcs
Additional Info.
Payment terms: T/T L/C Western Union
Packing: carton
Lead time: 2 days after confirmed payment
Sku: 10000pcs
Standard certification: CE
Minimum Order: 1 pcs
Price term: CIF/FOB/CFR/FCA/EXW
