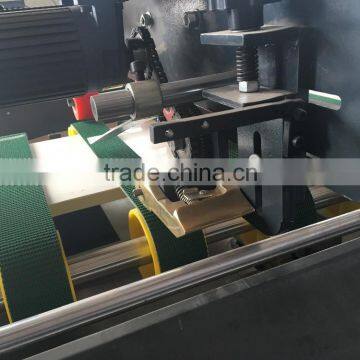

Semi-automatic folder Gluer Machine For Carton Box
Fetures:
- The JT-ZXJ series of corrugated carton box semi-automatic folder gluer is widely used in folding and gluing corrugated cardboard box.
- The machine is composed of the main structure and 2 conveyor unit.
-
The structure is consist of the following units:All the electrical components are imported named brand.
- Frame
- Lifting workbench
- Forepart paper feeding device
- Forepart correction device
- Midpiece conveying device
- Midpiece pressing device
- Finished products side outputting device
- Electrical control system
- All the electrical components are imported named brand.
- Equipped with a simple and reliable operation system.
- Quick changing order according to the different size of carton box.
- Automatic counting.
Specifications:
| Model | Unit | HY-ZXJ2000 | HY-ZXJ2400 | HY-ZXJ2800 |
| Max (length+width)*2 | mm | 2000 | 2400 | 2800 |
| Min (length+width)*2 | mm | 340 | 340 | 340 |
| Max (width+height)*2 | mm | 1515 | 1515 | 1515 |
| Min (width+height)*2 | mm | 240 | 240 | 240 |
| Feeding height | mm | 900 | 900 | 900 |
| Speed | m/min | 60 | 60 | 60 |
| Power | KW | 2.2 | 2.2 | 2.2 |
| Weight | T | 1.85 | 2 | 2.15 |
Our Company
Our company reference the foreign advanced technology & experience ,at the same time ,we seriously listen and absorb all the user's advice . We do our best to make our product to be low cost ,high efficiency, economical and practical.Now our company mainly make all kind printing machine , print fluting machine ,nail stick box machine,binding machine.Over the years ,our product sell very well all over the china ,and be favored by all the customers.
In order to achieve the corporate's growth goal, and to greet the international market competition,The Product diversification, scientific management, business diversification, market internationalization have become our printing Industries' brand core concept .High quality is our foundation for company development,we will do our best developing more and more high quality products ,and offer the best service to all the users .
