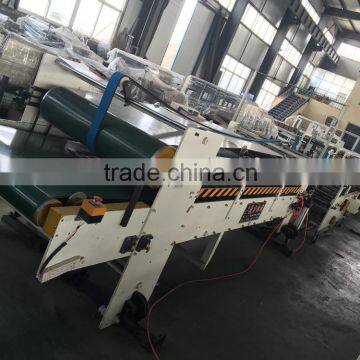

Automatic Crash Lock Bottom Folder Gluer Machine
Features:

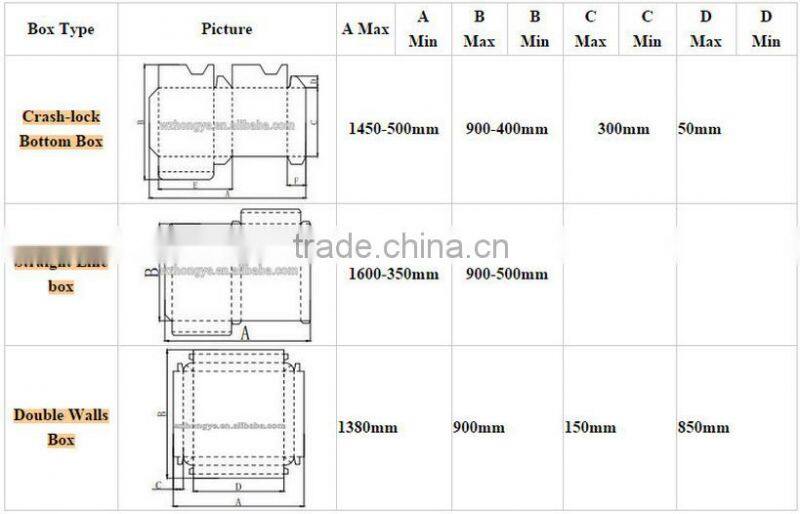

1) This machine is designed for Crash lock bottom box, straight line box and double walls box. In pre-folding part, the 1st fold at 180o, the 3rd fold at 90o. In the folding and forming part, the 2nd and 4th fold at 180o
2) It is equiped with good parts: Siemens Motor, Schneider Inverter/PLC/Electric, Japanese Nitta Belts, Japanese Bearing, Germany Continental Timing Belts etc.
3) Two gluing unit: Top gluing unit for bottom gluing and lower gluing unit for side glue. Both of them supply line glue, to help the box sticked more firmly.
4) Equipped with PLC and touch screen system to make the operation more convenient. Out-put quantity/Speed/Counting etc. is able to be set by this system. A wireless remote controlled included in this machine to help the operation more easy. Counting is through photo-electric sensor&electromagnet kicking.
5) Pressing unit designed with Pneumatic system, which make the gluing more firmly and stable.
6) For Corrugated box (E/B flute), optional designed with correction unit that could help the paper running and folding in the aligning line.
7) Feeding is controlled by separated motor. Feeding belts can designed with draft design (belts with holes). Paper is usually feed by severa thick belts unde the help of vibration moto. Feeding is continuous, exact and autoamtic with thsi system.
8) Grinders are provided in both sides of machine, to make gluing more stable and firm.
9) An Electric adjustment system in this macine make it conveniently whne adjusting the space of carriers which usually based on the double-face tooth rods adjusting system
10) Germany HHS spraying system and Plasma device are for optional.
11) Special design is also available according to your box type
