Hot Sale Semi-automatic Press-type Corrugated Carton Box Folder Gluer Machine

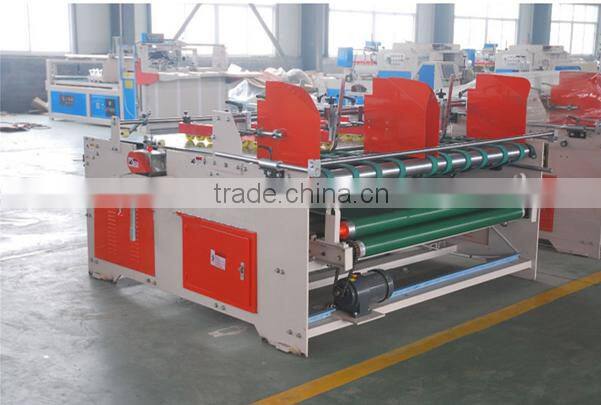

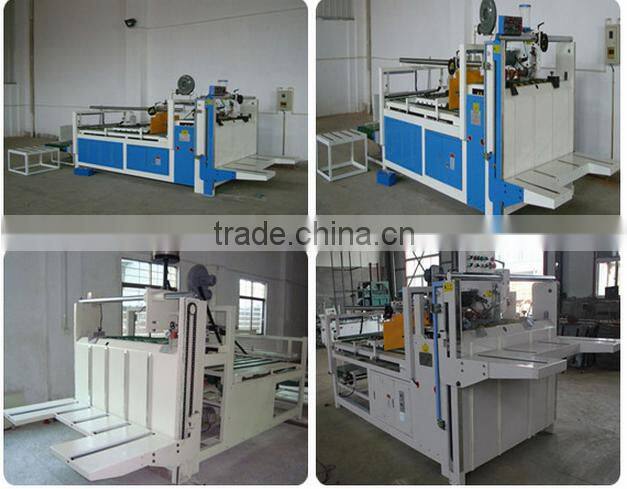

Hot Sale Semi-automatic Press-type Corrugated Carton Box Folder Gluer Machine photo-1

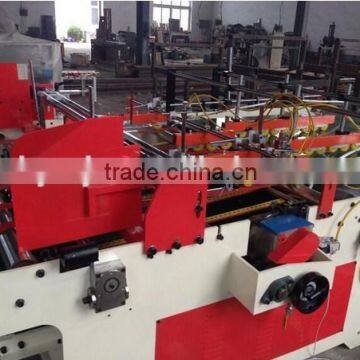

Hot Sale Semi-automatic Press-type Corrugated Carton Box Folder Gluer Machine photo-2

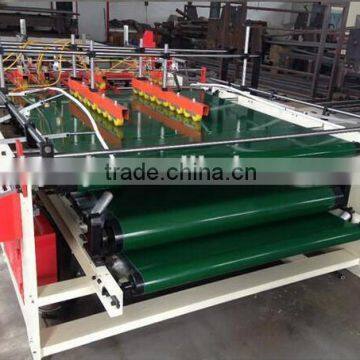

Hot Sale Semi-automatic Press-type Corrugated Carton Box Folder Gluer Machine photo-3
Hot Sale Semi-automatic Press-type Corrugated Carton Box Folder Gluer Machine photo-4
Hot Sale Semi-automatic Press-type Corrugated Carton Box Folder Gluer Machine photo-5
US$ 2,800 - 3,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Semi Automatic Press-fit corrugated carton box folder gluer machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Type Semi Automatic Press-fit corrugated carton box folder gluer machine

Semi-automatic corrugated board folder glue machine



 Hot Sale Semi-automatic Press-type corrugated carton box folder gluer machine



YHQ type semi automatic pressing type gluing machine, in recent years, small and medium-sized orders, according to user needs of heterosexual carton, carton production of the latest research and development of new environmental protection equipment. Its small size to cover an area of little, operation is simple and does not require experience, very suitable for small batch production and varieties of replacement; wide application scope, ordinary cardboard boxes, specialshaped box sheet forming adhesive, double carton and earth covered carton; save the glue, the glue quantity is only equivalent to manual gluing 1 / 3; artificial equipment, a maximum speed of 56 M / min, efficiency is the manual operation of the 3times; bonding firm, clean overflow of glue, patents are polished to remove UV optical coating, or coating plastic layer, improve the glue stick relay, lifting the carton plant in some seasonal carton easy open problem. This machine adopts manual folding, improves the efficiency and is suitable for automatic processing of the indentation is not good, special sex and the paper surface with fenestration products.



Main Specifications:



Model HY-1800 HY-2000 HY-220
voltage 3-380VAC 3-380VAC 3-380VAC
HZ 50/60 50/60 50/60
Power 2.7KW 2.7KW 2.7KW
Current 6.3A 6.3A 6.3A
Weight 0.85T 1.0T 1.3T
Overall size 2200×2400×1300mm 2200×2600×1300mm 2200×2800×1300mm
Max. Size of box 1100×1100mm 1100×1100mm 1100×1100mm
Min. Size of box 180×160mm 180×160mm 180×160mm
