550KW China Brand Silent Diesel Generator Powered With Yuchai Engine

550KW china brand silent Diesel Generator set

This 550kw diesel generator set is powered with Yuchai engine.

Specification of genset

Genset model:HL550GF

Prime power: 550KW/687.5KVA

Standby power: 600KW/750KVA

Power factor: 0.8

Rated Voltage: 400/230V

Rated frequency (HZ): 50

Dimensions (mm) (L×W×H): 5600*2300*2700

Weight (kg): 7000

Specification of diesel engine

Engine Model: YC6C1020L-D20

Manufacturer: YUCHAI (china famous brand)

Governor: M/E

Cylinders/Arrangement: 6/L

Bore× Stroke(MM): 200×210

Fuel Consumption Rate(L/h): 195

Lubricating oil capacity(L): 180

Engine speed (rpm): 1500

Max Power (kW): 748

Starting Method: DC24V electrical starting

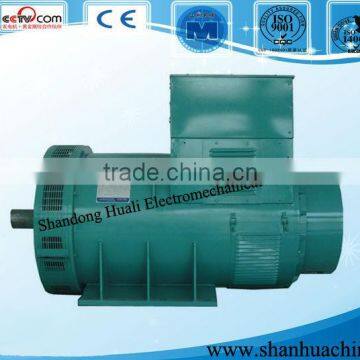

Specification of alternator

Alternator model: HLF550

Connecting Type: 3 Phase and 4 Wires

Number of Bearing: 1

Protection Grade: IP21

Altitude: ≤1000m

Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire

Insulation Class: H

Telephone Influence Factor (TIF):≤50

Voltage Regulation, Steady State: ≤±1%

Transient State Voltage: ≤-15%~+20%

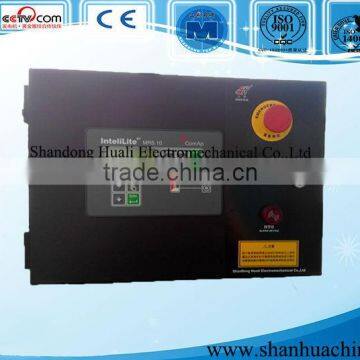

Control System

Operating temperature: -20°C~60°C

Relative Humidity: 95%

Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )

Standard functions: Engine Control/Generator Monitoring/Generator Protection/Engine Monitoring/

                               Clear Text Display

Shutdown: Loss of Speed Signal,Alternator Under / Over Voltage,Alternator Under/ Over Frequency,

                  Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,

                  High Engine Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)

Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,

               Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,High Engine                              Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance

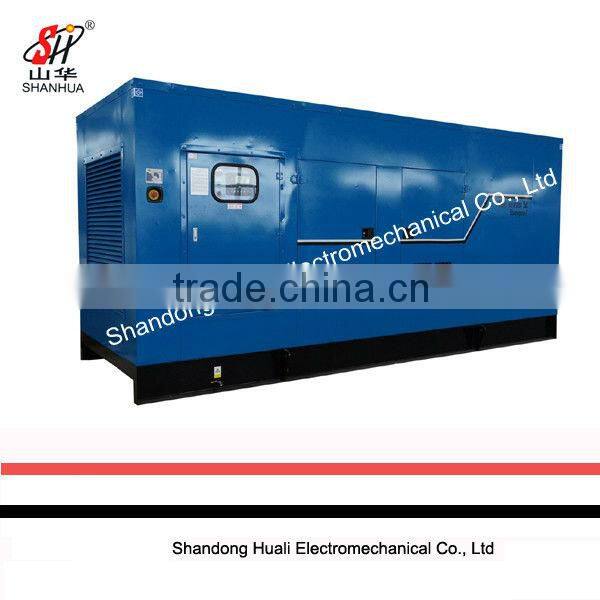

Finished 550kw diesel genset silent type powered with Yuchai engine.

GENEST TYPE:

OPEN TYPE

SILNT TYPE

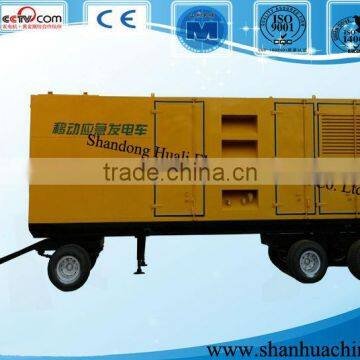

TRAILER TYPE

PRODUCTION LINE:

 PACKING:

CERTIFICATES:

OUTLOOK OF OUR FACTORY:
