Ningbo Blue Industrial SIGHT GLASSES
US$ 1 - 10
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Blue
Model Number:
BLR/
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
Blue
Model Number
BLR/
Type
Other, VAVLE
Application
Refrigeration Parts
Certification
CE

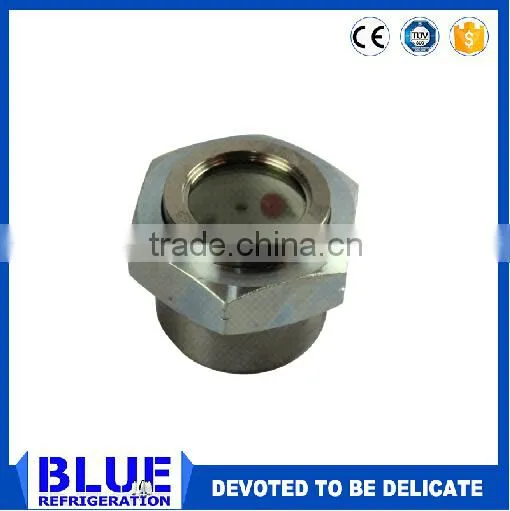

ningbo blue industrial SIGHT GLASSES
SIGHT GLASS
Used to control level of liquid and oil.

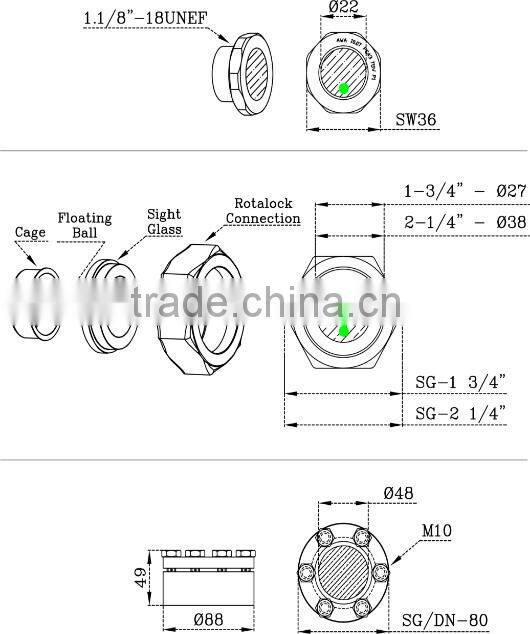

SW36, SG-1 3/4" and SG-2 1/4" sight glasses have a ball inside them in order to make it easier to see oil / liquid level.

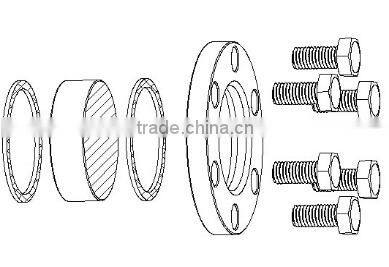

There is no ball in model DN80.
Sight glasses provided in standard products may be changed with any model of sight glasses that you wish.
Model |
Glass Diameter (mm) |
Total Diamater (mm) |
N.W (g) |
Maximum Working Temperature [°C] |
Test Pressure [bar] |
Best Working Temperature [°C] |
Maximum Working Pressure [bar] |
Media |
BLR/SW36 |
22 |
36 |
119.57 |
-10°C +120°C |
42 bar |
-50°C -10°C
|
23 bar |
Refrigerant pursuant to EN 378-1 |
BLR/SG-1 3/4 |
27 |
57 |
298.2 |
|||||
BLR/SG-2 1/4 |
38 |
74.4 |
605 |
|||||
BLR/DN-80 |
54 |
88 |
500.94 |
