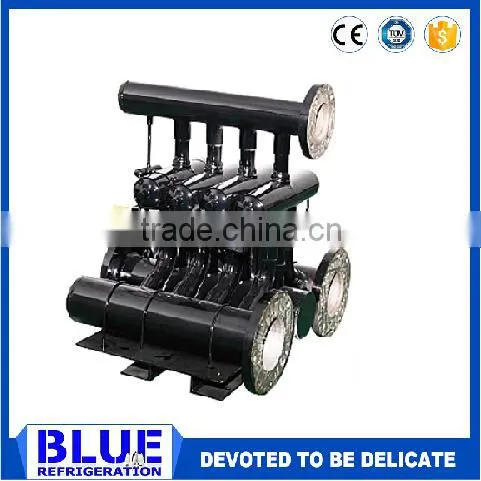

BLR/FRV Series 4 Ways Reversing Valve

BLR/FRV Series 4 Ways Reversing Valve thumbnail-1
BLR/FRV Series 4 Ways Reversing Valve photo-1
US$ 1 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Blue
Model Number:
BLR/
Contact Supplier Request Quote Chat Now
Ningbo Blue Refrigeration Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Blue
Model Number BLR/
Type Other, VAVLE
Application Refrigeration Parts
Certification CE

BLR/FRV Series 4 Ways Reversing Valve

BLR/FRV Series Four-Way Reversing Valves are specially designed for Heat Pump Systerms, like Commercial and Industrial Air Conditioning System,Swimming Pool System. The 4-way Reversing Valve is the key component to provide Heating and Cooling from the system to the air conditioned space by reversing the flow direction of refrigerant. It is widely used at room air conditioners, packaged and central air conditioners. The reversing Valves are designed for Heat Pump Systems with capacity from 3kW to 580kW. They are suitable for most refrigerants as R407C - R410A - R134A.

Capacity Range: 3 US Ton to 240 US Ton (Based On R22 Nonical Capacity)
Advantage: Wide Application Range;Low Leakage Risk;Minimum Pressure Drop;High Reliability; Energy Saving;
Application Refrigerant: R22,R407C,R410A,R134A etc.
Fluid Application Temperature: -25℃~120℃
Application Ambient Temperature: -25℃~50℃
Relative Humidity: 95% RH
Service Life: 20000 times
Max Using Pressure: 4.17 Mpa (Pressure Gauge Pressure)
Bellow Test Pressure: 3.0 Mpa (Air)
Temperature Endurance: 120℃
Coil Insulated Resistant: >1000MΩ
Coil Termperature increase :<70K
Coil Max Using Temperature: +130℃

Model

R22 Nonical

 Capcity
Connection Size

Port

Size

Internal

Leakage

(ml/min)

Reversing

Pressure(Mpa)
CES Outlet
D Inlet
(us ton)
Inch
mm
Inch
mm
mm
Max
Min
Max
BLR/FRV-005C
6
7/8"
22.3
1/2"
12.7
16
4000
0.5
3.1
BLR/FRV-005K
3/4"
19.05
1/2"
12.7
4000
0.5
3.1
BLR/FRV-010B
10
7/8"
22.23
5/8"
15.9
10
6000
0.15
3.1
BLR/FRV-010C
7/8"
22.23
3/4"
19.05
6000
0.15
3.1
BLR/FRV-010E
1/ 1/8"
28.58
5/8"
15.88
6000
0.15
3.1
BLR/FRV-010F
1/ 1/8"
28.58
3/4"
19.05
6000
0.15
3.1
BLR/FRV-010S
1/ 1/8"
28.58
7/8"
22.23
6000
0.15
3.1
BLR/FRV-015A
15
1/ 3/8"
34.93
1
25.4
25
15000
0.25
2.5
BLR/FRV-015B
1/ 1/8"
28.58
7/8"
22.23
25
6000
0.25
2.5
BLR/FRV-020A
20
1/ 1/4"
31.75
1
25.4
26
10L
0.25
2.5
BLR/FRV-020B
1/ 1/4"
31.75
1
25.4
26
10L
0.25
2.5
BLR/FRV-020C
1/ 3/8"
34.93
1/ 1/8"
28.58
26
10L
0.25
2.5
BLR/FRV-030A
30
1/ 1/2"
38.1
1/ 1/4"
31.75
35
10L
0.25
2.5
BLR/FRV040A
40
1/ 3/4"
44,45
1/ 1/2"
38.1
41
15L
0.25
2.5
BLR/FRV-040B
1/ 3/4"
44,45
1/ 1/2"
38.1
41
15L
0.25
2.5
BLR/FRV-050A
50
2/ 1/8"
53.98
1/ 1/2"
38.1
46
20L
0.25
2.5
BLR/FRV-050B
2/ 1/8"
53.98
1/ 1/2"
38.1
46
20L
0.25
2.5
BLR/FRV-060A
60
2/ 5/8"
66.68
1/ 5/8"
41.28
50
20L
0.25
2.5
BLR/FRV-060B
2/ 5/8"
66.68
1/ 5/8"
41.28
50
20L
0.25
2.5
BLR/FRV-080A
80
3/ 1/8"
79.38
2/ 5/8"
66.68
41
30L
0.34
2.25
BLR/FRV-080B
3/ 1/8"
79.38
1/ 5/8"
53.98
41
30L
0.34
2.25
BLR/FRV-120A
120
3/ 1/8"
79.38
2/ 5/8"
66.68
41
45L
0.34
2.25
BLR/FRV-120B
3/ 1/8"
79.38
3/ 1/8"
79.38
41
45L
0.34
2.25
BLR/FRV-160A
160
3/ 1/8"
79.38
3/ 1/8"
79.38
41
60L
0.34
2.25
BLR/FRV-160B
3/ 1/8"
79.38
2/ 5/8"
66.68
41
60L
0.34
2.25
BLR/FRV-200A
200
4/ 3/5"
118
3/ 1/8"
79.38
46
80L
0.34
2.25
