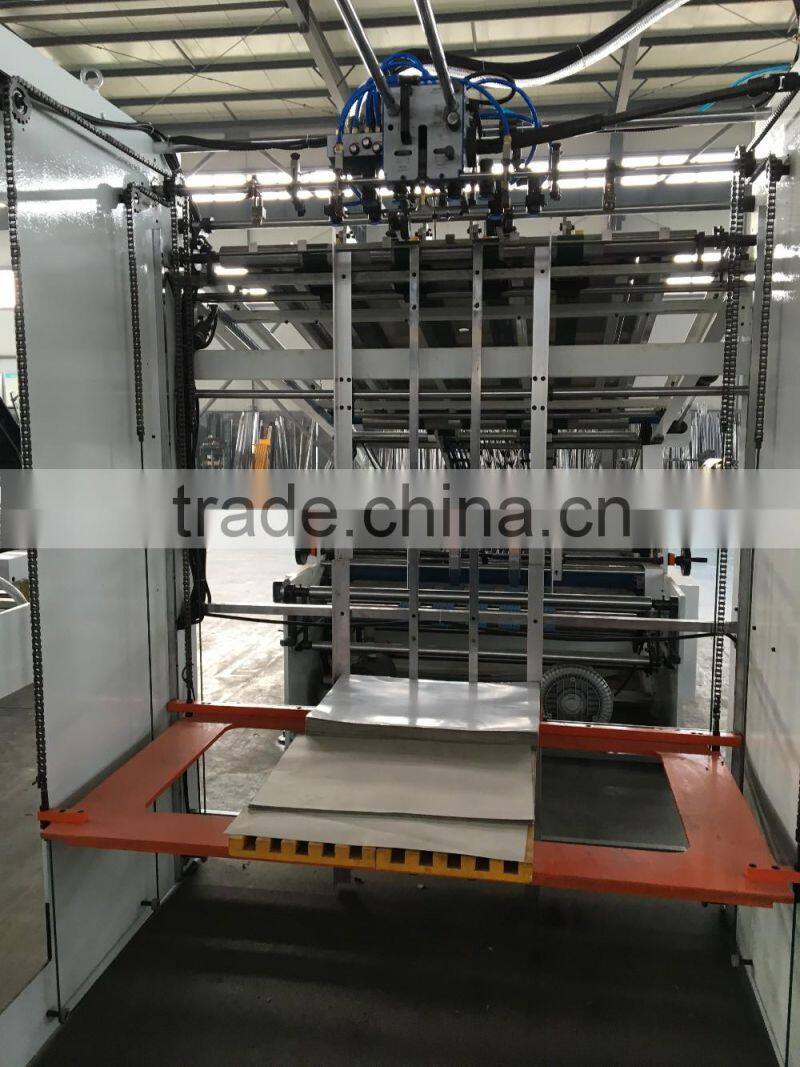

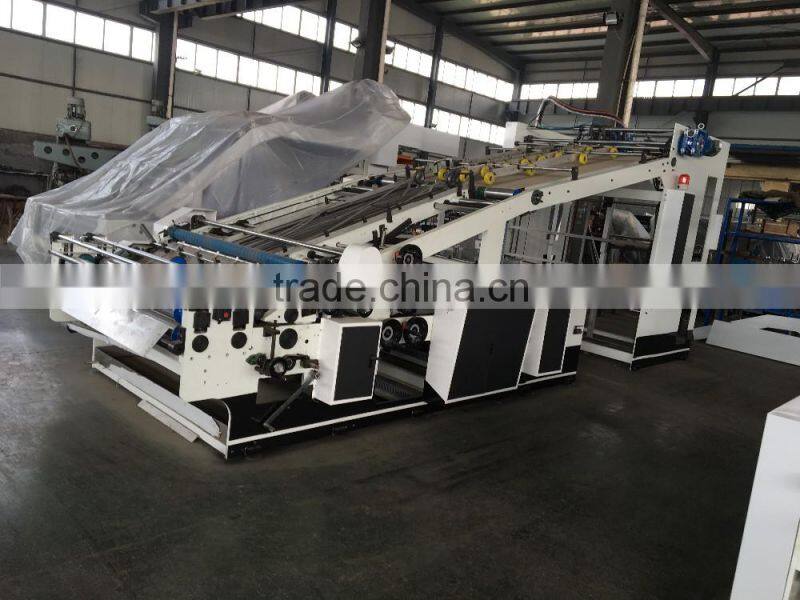

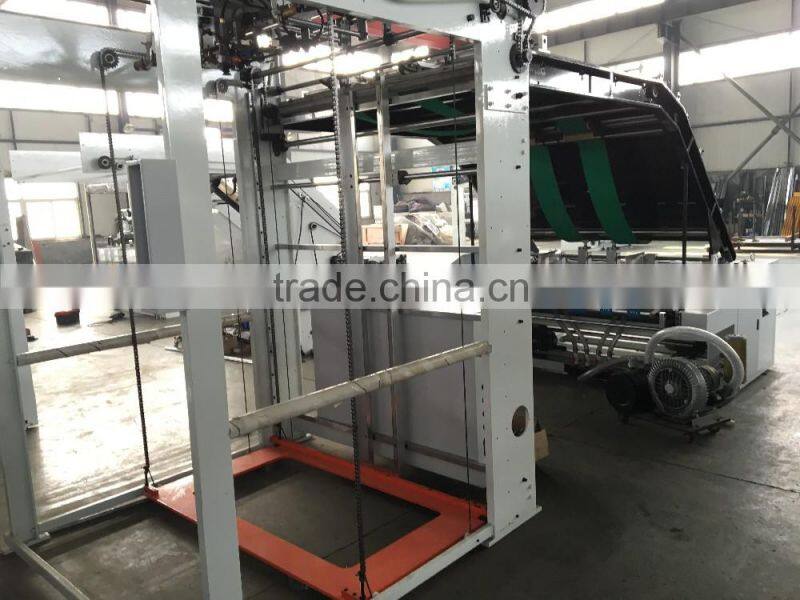

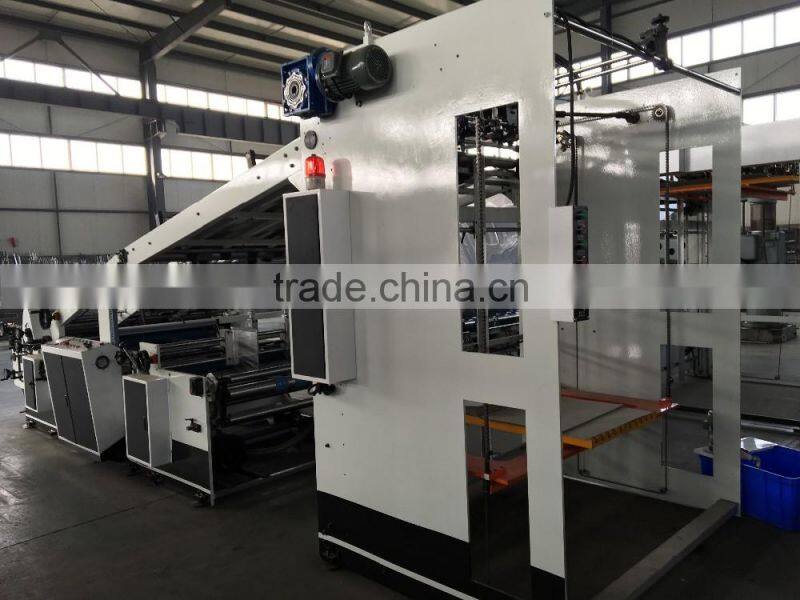

High Speed Automatic Flute Laminator Machine
- Tianjin Port
- T/T
You May Like
-
Semi-automatic Flute Laminator Machine
-
Hot Sell Semi-automatic Flute Laminator Machine
-
Semi Automatic Flute Laminator Machine
-
HOT SELL Automatic High Speed Flute Laminator Machine for Carton
-
HOT Sell Semi-automatic Flute Laminator Machine for Box
-
Fully Automatic High Speed Flute Laminator Machine for Box
Product Details
| Type | High Speed Automatic Flute Laminator Machine |
Product Description
The main technical parameters
| Machine Model: | HY1307 | HY1310 |
| Maximum paper: | Width 1300mm×length 700mm | Width 1300mm×length1000mm |
| Minimum paper: | Width 500mm×length 300mm | Width 500mm×length 300mm |
| Down paper thickness: | 300g-8mm thickness | 300g-8mm thickness |
| Surface paper thickness: | 150g-700g | 150g-700g |
| Maximum speed: | 12000pcs/hour | 10000pcs/hour |
| Fitting accuracy: | ±0.5mm (standard flat paper) | |
| Apply glue: | resin glue, starch paper jam glue, etc. (PH6-8 use bonding glue) | |
| Weight: | 6500KG | |
| Power supply: | 380V | |
| Applicable paper: | Thin paper, cardboard, coated paper, gray cardboard, thick cardboard, etc | |
| Applicable corrugated: | High strength formal single A, B, E, F three, five etc. mounted paper Lenz | |
Product Description:
1. This machine stations and body are all made by large processing center and complete in one time to ensure the accuracy of each station and equipment operation more stable.
2. Cardboard feed mechanism: Configuring high speed dedicated feeder head, regardless of thick or thin paper it can ensure the paper feed speed and smooth.
3. Cardboard lifts: In line with the highspeed feeder, equipped high strength worm reducer, to ensure the instant speed stability.
4. Cardboard loader: The E-type double-notch unique design, the production of paper can be pushed directly into the hand truck, shorten the stacking paper time and improve efficiency.
5. The end of the paper system: servo motor control system, high sensitivity, high speed, to ensure the smooth end of paper out of paper, no paper jams and other characteristics.
6. The end of paper adsorption system: Frequency jams and agility with the solenoid switch, to ensure that the end of paper completely adsorbed, and the operation is simple.
