500kw Diesel Generator Set Powered With Shangchai Engine

500kw Diesel Generator Set

This 500kw diesel generator set is powered with Shangchai engine.

Specification of genset

Genset model:HL500GF

Prime power: 500KW/625KVA

Standby power: 550KW/687KVA

Power factor: 0.8

Rated Voltage: 400/230V

Rated frequency (HZ): 50

Dimensions (mm) (L×W×H): 3560×1550×2100

Weight (kg): 4355

Specification of diesel engine

Engine Model: 12V135BZLD1

Manufacturer: SHANGCHAI

Governor: E

Air intake way: Turbocharger

Cylinders/Arrangement: 12/L

Bore× Stroke(MM): 135×155

Fuel Consumption Rate(L/h): 198

Engine speed (rpm): 1500

Max Power (kW): 555

Starting Method: DC24V electrical starting

Specification of alternator

Alternator model: HLF500

Connecting Type: 3 Phase and 4 Wires

Number of Bearing: 1

Protection Grade: IP21

Altitude: ≤1000m

Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire

Insulation Class: H

Telephone Influence Factor (TIF):≤50

Voltage Regulation, Steady State: ≤±1%

Transient State Voltage: ≤-15%~+20%

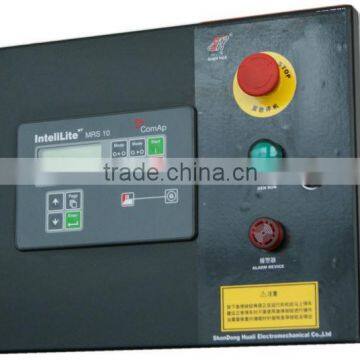

Control System

Operating temperature: -20°C~60°C

Relative Humidity: 95%

Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )

Standard functions: Engine Control/Generator Monitoring/Generator Protection/Engine Monitoring/

                                Clear Text Display

Shutdown: Loss of Speed Signal,Alternator Under / Over Voltage,Alternator Under/ Over Frequency,

                 Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,

                 High Engine Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)

Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,

               Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,High Engine                              Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance

GENEST TYPE:

OPEN TYPE

SILNT TYPE

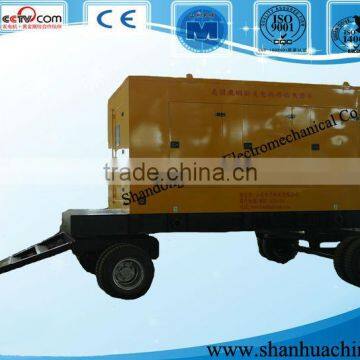

TRAILER TYPE

PRODUCTION LINE:

 PACKING:

CERTIFICATES:

OUTLOOK OF OUR FACTORY:
