Specifications
- High Quality YUCHAI 375kva portable generator price with spare part made in china Details- 100% copper wire
- Yuchai OEM
High Quality YUCHAI 375kva portable generator price with spare part made in china Details
Specification of genset:
Genset model:HL375GF
Prime power: 300kW/375kVA
Standby power: 330kW/412.5kVA
Power factor: 0.8
Rated Voltage: 400/230V
Rated frequency (HZ): 50
Dimensions (mm) (L×W×H): 3100×1150×1540
Weight (kg): 2550
Specification of diesel engine:
Engine Model: YC6MJ470L-D20
Manufacturer: YUCHAI
Governor: M/E
Cylinders/Arrangement: 6/L
Bore× Stroke(MM): 131×145
Fuel Consumption Rate(L/h): 195
Lubricating oil capacity(L): 28
Engine speed (rpm): 1500
Max Power (kW): 344
Starting Method: DC24V electrical starting
Specification of alternator:
Alternator model: HLF375
Connecting Type: 3 Phase and 4 Wires
Number of Bearing: 1
Protection Grade: IP21
Altitude: ≤1000m
Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class: H
Telephone Influence Factor (TIF):≤50
Voltage Regulation, Steady State: ≤±1%
Transient State Voltage: ≤-15%~+20%
Control System:
Operating temperature: -20°C~60°C
Relative Humidity: 95%
Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )
Standard functions: Engine Control/Generator Monitoring/Generator Protection/
Engine Monitoring/Clear Text Display
Shutdown: Loss of Speed Signal,Alternator Under / Over Voltage,Alternator Under/ Over Frequency,
Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,High Engine Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)
Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,High Engine Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance

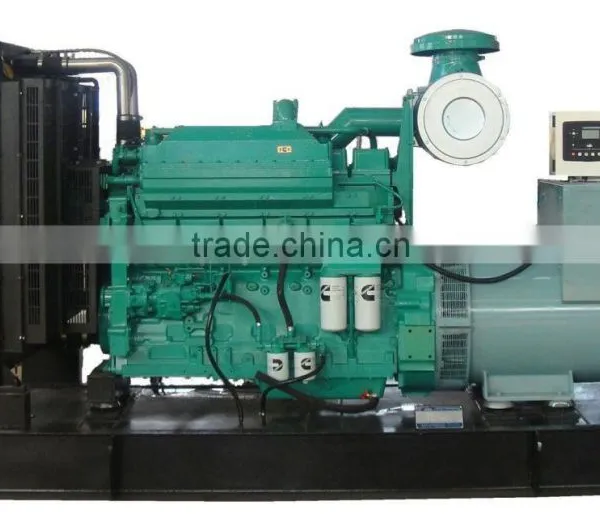

Finished Products :

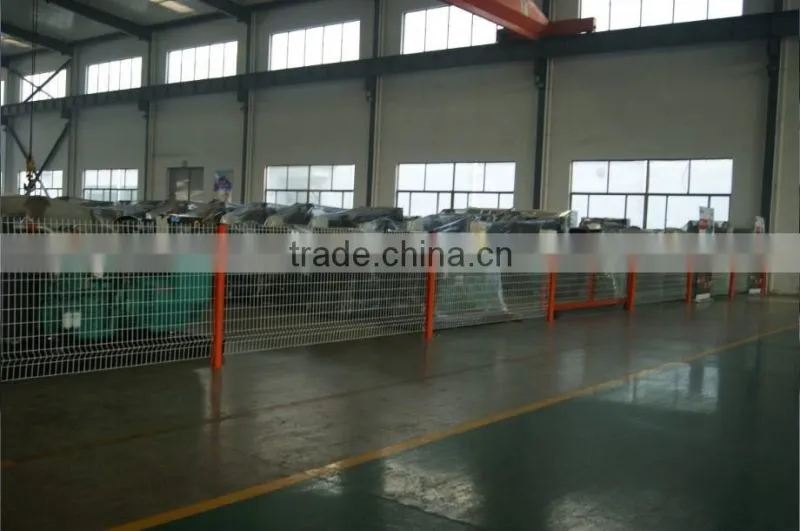

Workshop :
Dubai Exhibition :
Certificates:
Contact Us :
