Specifications
- 250 kva power diesel generators with self start- China Yuchai engine
- 100% copper wire
- Prompt delivery
Shandong Huali Electromechanical Co.,LTD

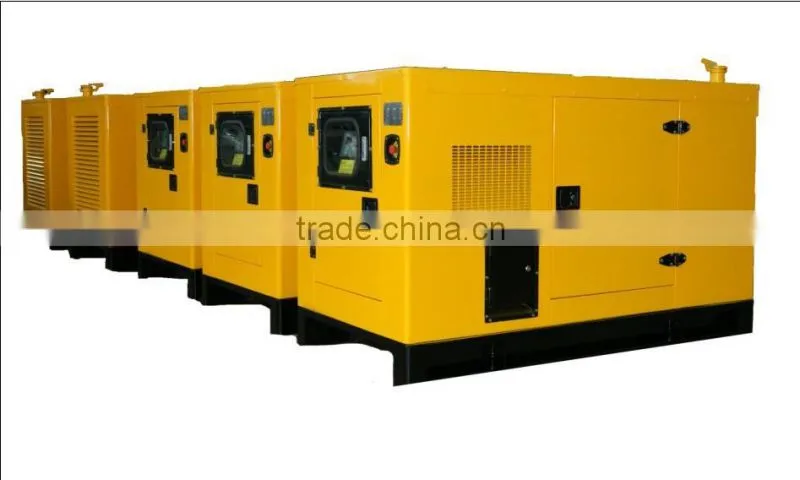

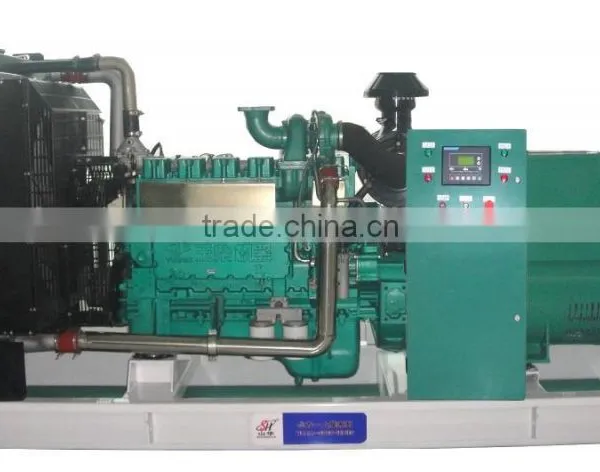

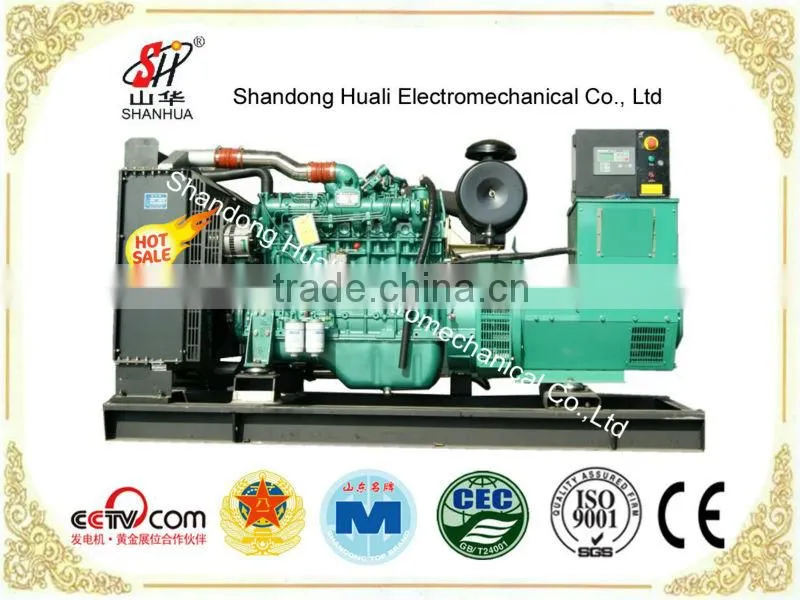

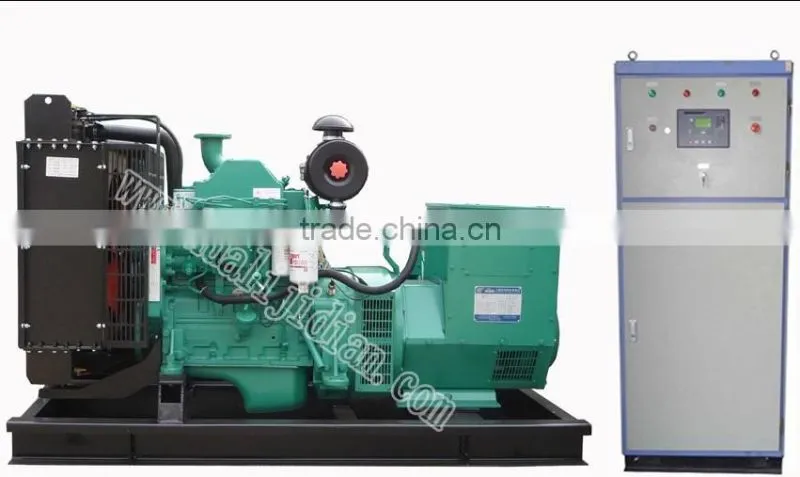

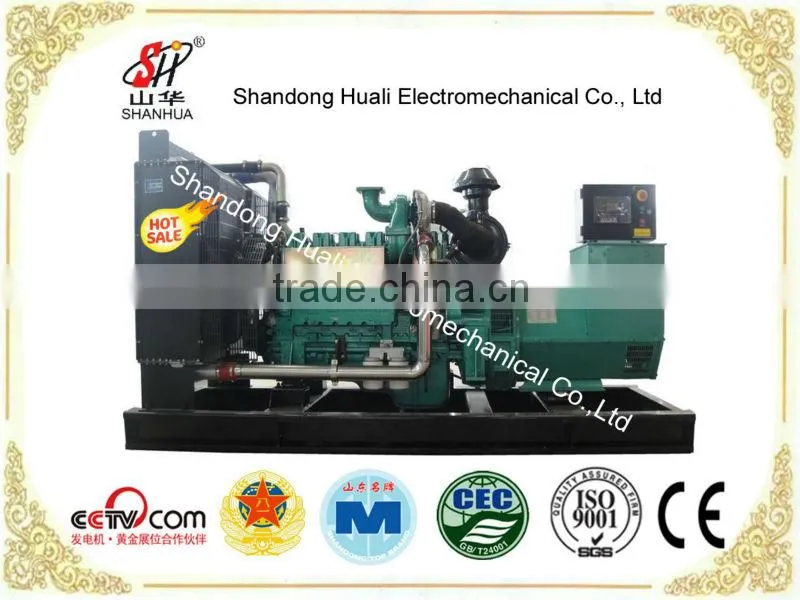

250 kva power diesel generators with self start
Specification of genset
Genset model:HL250GF
Prime power: 200KW/250KVA
Standby power: 220KW/275KVA
Power factor: 0.8
Rated Voltage: 400/230V
Rated frequency (HZ): 50
Dimensions (mm) (L×W×H): 2950×1050×1665
Specification of diesel engine
Engine Model: YC6M350L-D20
Manufacturer: YUCHAI
Governor: M/E
Air intake way: NA
Cylinders/Arrangement: 6/L
Bore× Stroke(MM): 120×145
Fuel Consumption Rate(L/h): 197
Lubricating oil capacity(L): 28
Coolant capacity (L): NA
Compression ratio: 17.5:1
Displacement, total (L): 9.84
Net weight (kg): 370
Engine speed (rpm): 1500
Max Power (kW): 258.5
Starting Method: DC12V electrical starting
Specification of alternator
Alternator model: HLF250
Connecting Type: 3 Phase and 4 Wires
Number of Bearing: 1
Protection Grade: IP21
Altitude: ≤1000m
Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class: H
Telephone Influence Factor (TIF): ≤50
Voltage Regulation, Steady State: ≤±1%
Transient State Voltage: ≤-15%~+20%
Control System
Operating temperature: -20°C~60°C
Relative Humidity: 95%
Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )
Standard functions: Engine Control/Generator Monitoring/Generator Protection/
Engine Monitoring/Clear Text Display
Shutdown: Loss of Speed Signal,Alternator Under / Over Voltage,Alternator Under/ Over Frequency,
Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,High Engine Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)
Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,High Engine Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance
Products Exhibition :

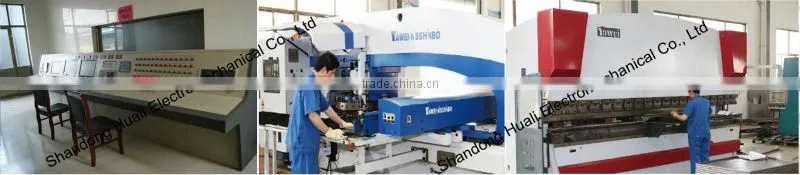

Production Line:
