300KW Open Type Diesel Generator Set Powered by Cummins Engine

300KW Open Type Diesel Generator Set Powered by Cummins Engine thumbnail-1
300KW Open Type Diesel Generator Set Powered by Cummins Engine photo-1
US$ 1,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
SHANHUA
Model Number:
HL300GF
Contact Supplier Request Quote Chat Now
Shandong Huali Electromechanical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name SHANHUA
Model Number HL300GF
Output Type AC Three Phase
Speed 1500/1800
Frequency 50/60
Rated Power 300KW
Rated Voltage 380V
Rated Current 540A

Specifications

Model: HL300GF
Prime Power (KVA / KW): 375/300
Standby Power (KVA / KW): 410/330
Rated Ammeter (A): 540

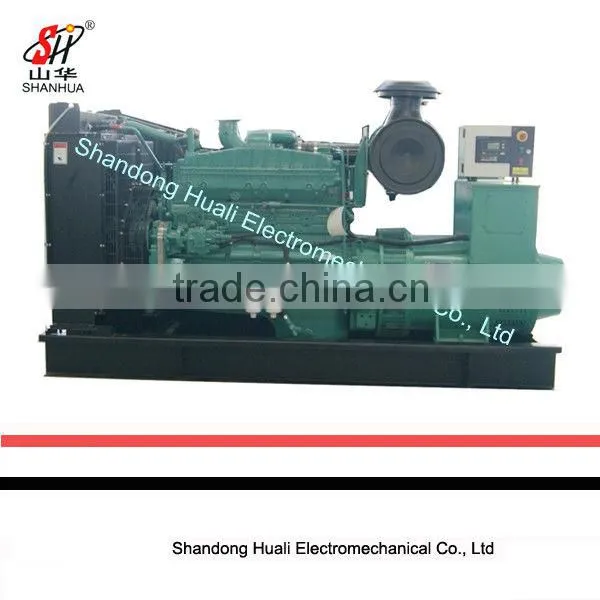

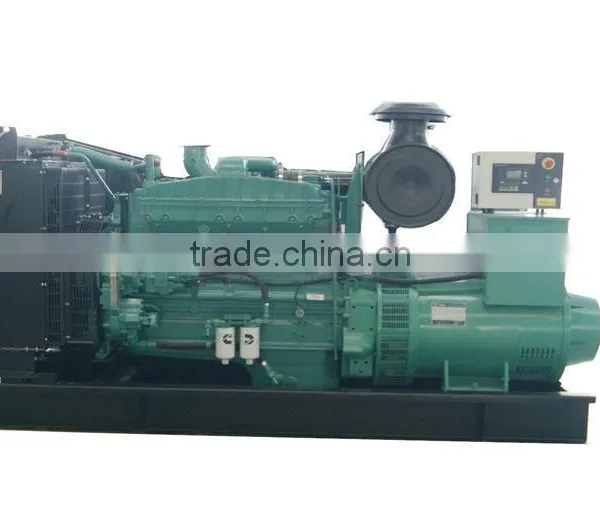

300KW Open type diesel generator set powered by Cummins engine

Genset :

Model: HL300GF

Prime Power (KVA / KW):  375/300

Standby Power (KVA / KW):  410/330

Rated Ammeter (A):  540

Dimensions (mm) (L×W×H): 4700×1850×2050

Net Weight (kg): 5100

Engine:

Manufacturer: CCEC

Model: NTAA855-G7A

Number of cylinders: 6

Aspiration: Turbo

Bore×Store(mm): 140 × 152

Compression ratio:  14:1

Displacement, total (L):  14

Speed Governor: Electric

Cooling System: Forced Water Cooling Cycle

Fuel Consumption at 100% Load (L): 85.4

Starting Method: DC24V electrical starting

Alternator:

STAMFORD, MARATHON, SHANHUA, 3 Phase and 4 Wires, 100% copper wire Brushless, Self-exciting, IP21-IP23, and Insulation Class:  H

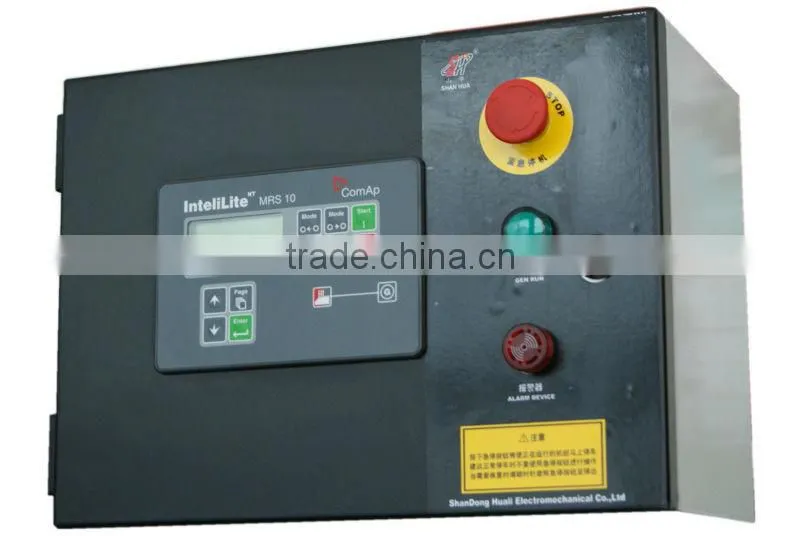

Control System:

Smartgen (HGM6110, HGM6320)   DeepSea (DSE7320,DSE7510) , ComAp (AMF20 , AMF25,MRS10)



300KW Open type diesel generator set powered by Cummins engine



300KW Open type diesel generator set powered by Cummins engine



300KW Open type diesel generator set powered by Cummins engine



300KW Open type diesel generator set powered by Cummins engine
