Home > Industrial Equipment & Components > Valve > Ball Valve > SUS316 Flange End Water Steam Pneumatic Steam Cutting O-Type Ball Valve

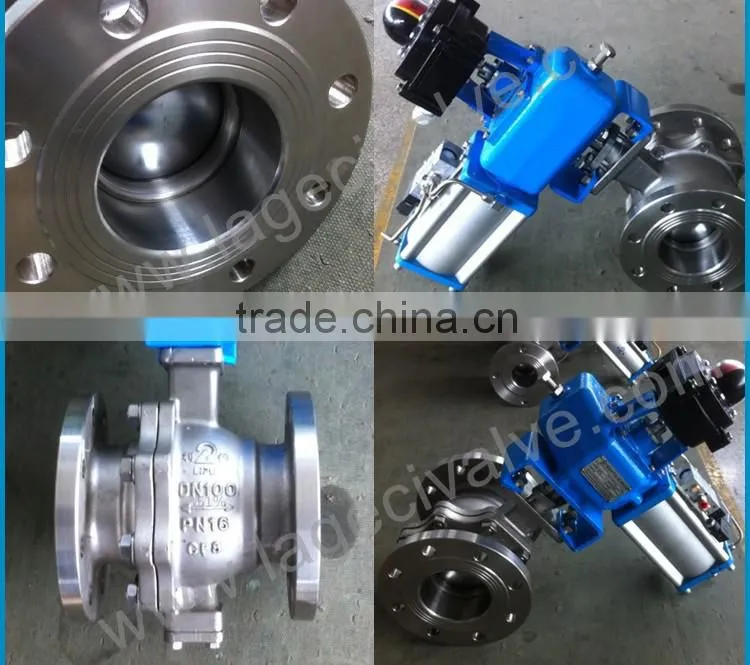

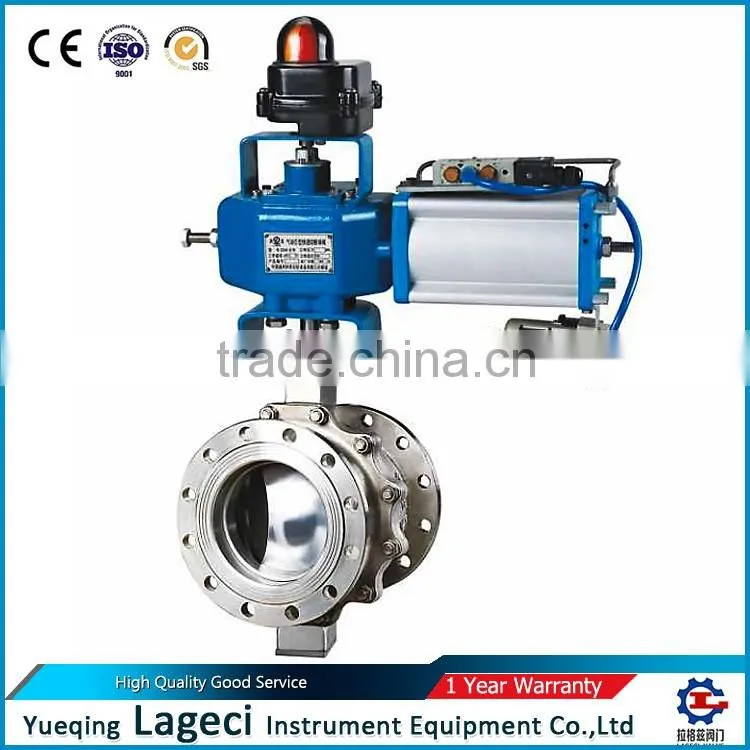

SUS316 Flange End Water Steam Pneumatic Steam Cutting O-Type Ball Valve
US$ 1 - 500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
High Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Nongbi Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gear Type Pneumatic Actuating O-Type Cutting Ball ValveUS$ 1 - 500MOQ: 1 Piece -
Pneumatic Knife Gate Valve Pneumatic Slurry Valves Parallel Slide ValvesUS$ 1 - 500MOQ: 1 Piece
-
Pneumatic Stainless Steel Knife Gate ValveUS$ 1 - 500MOQ: 1 Piece
-
Pneumatic Knife Gate Valve,knife Gate Valve With Pneumatic Actuator,air Actuated Knife Gate ValveUS$ 1 - 500MOQ: 1 Piece
-
Pneumatic Penetrating Type Knife Gate ValveUS$ 1 - 500MOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Ball
Pressure
High Pressure
Power
Pneumatic
Material
Stainless Steel
Temperature of Media
High Temperature
Media
Gas
Port Size
DN10-DN500
Place of Origin
Zhejiang, China
Model Number
PSSR-ED316
Brand Name
Lageci
Application
General
|
|

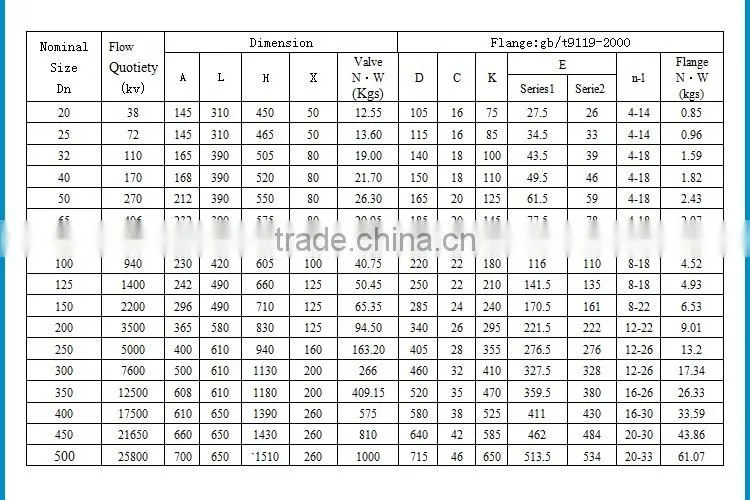

SUS316 Flange End Water Steam Pneumatic Steam Cutting O-Type ball valveNominal Pressure Rating:1.6 Mpa, 2.5 Mpa, 4.0Mpa Working Temperature:-20~300℃ Nominal Diameter:DN10-500mm Rated Flow Coefficient:25~25800Kv Main Material:Valve Body 304,316,316L Valve Plug 304,316,316L Control voltagel:1.24VDC 2.220VAC Seal Type: 1.Self-adjusting Stainless Steel Hard Seal 2.Teflon soft Seal Leakage:1.GB/T4213-2008IV 2.no leakage Actuator Type:Double Acting Air Supply Pressure:0.4-0.6Mpa Accessories:1.Solenoid valve 2.Air Filter 3.Position limit switch box 4.Flange
|
|
|
|
|
|
|
|
|
|
|
|
|
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2014
Factory Size
Below 1,000 square meters
Total Employees
11 - 50 People
