Home > Industrial Equipment & Components > Valve > Ball Valve > Flange End Water Steam Pneumatic Regulating Valve

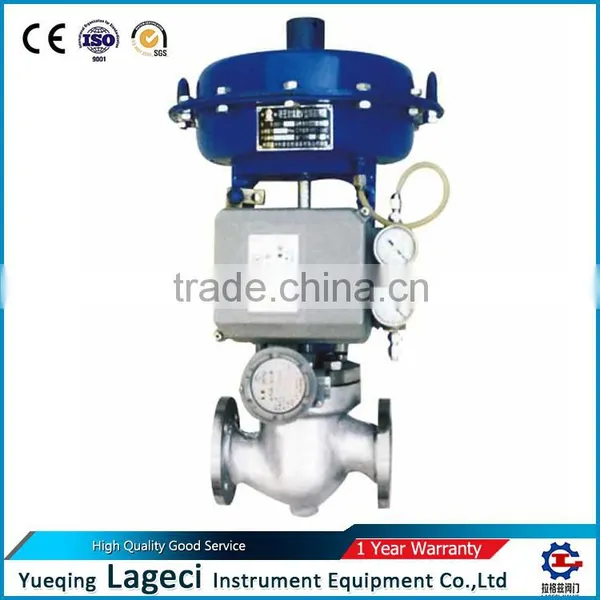

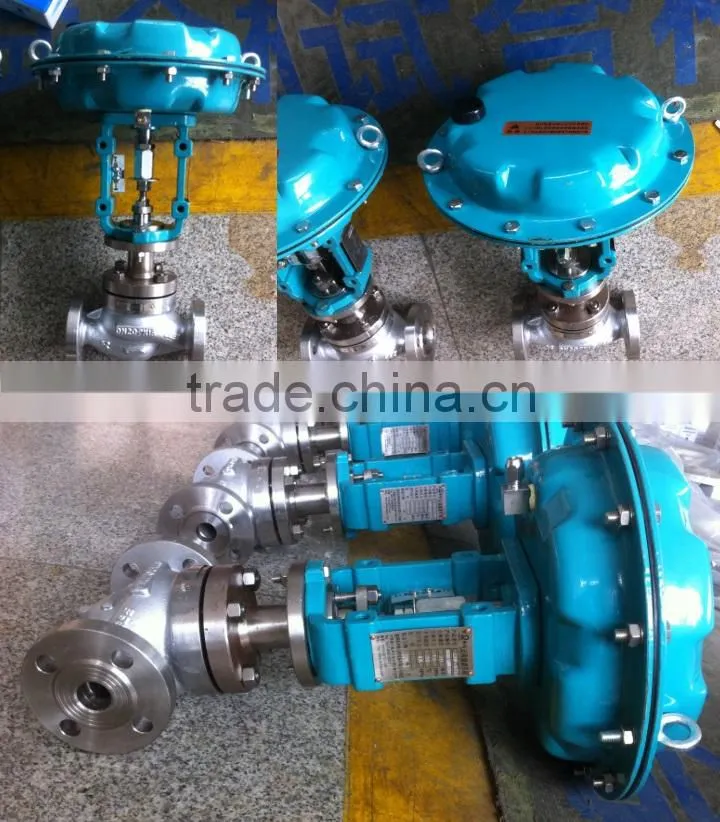

Flange End Water Steam Pneumatic Regulating Valve
US$ 1 - 500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Diaphragm
Pressure:
High Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Nongbi Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SUS316 Flange End Water Steam Pneumatic Steam Cutting O-Type Ball ValveUS$ 1 - 500MOQ: 1 Piece -
Gear Type Pneumatic Actuating O-Type Cutting Ball ValveUS$ 1 - 500MOQ: 1 Piece
-
Pneumatic Knife Gate Valve Pneumatic Slurry Valves Parallel Slide ValvesUS$ 1 - 500MOQ: 1 Piece
-
Pneumatic Stainless Steel Knife Gate ValveUS$ 1 - 500MOQ: 1 Piece
-
Pneumatic Knife Gate Valve,knife Gate Valve With Pneumatic Actuator,air Actuated Knife Gate ValveUS$ 1 - 500MOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Diaphragm
Pressure
High Pressure
Power
Pneumatic
Material
Casting
Temperature of Media
Normal Temperature
Media
Gas
Port Size
DN20-DN300
Place of Origin
Zhejiang, China
Model Number
PJHP-T200
Brand Name
Lageci
Application
General
|
|
flange end water steam pneumatic regulating valve
Nominal Pressure Rating:1.6 Mpa, 2.5 Mpa, 4.0Mpa Working Temperature:-20~300℃ Nominal Diameter:DN20-300mm Rated Flow Coefficient:6.9~1440Kv Main Material:Valve Body WCB,304,316,316L Valve Plug WCB,304,316,316L Input Signal:4-20mADC Leakage:GB/T4213-2008IV Actuator Type:Single Acting Air Supply Pressure:0.4-0.6Mpa Accessories:1.Positioner 2.Air Filter+Regulator 3.Flange
|
|
|
|
|
|
|
|
|
|
|
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2014
Factory Size
Below 1,000 square meters
Total Employees
11 - 50 People
