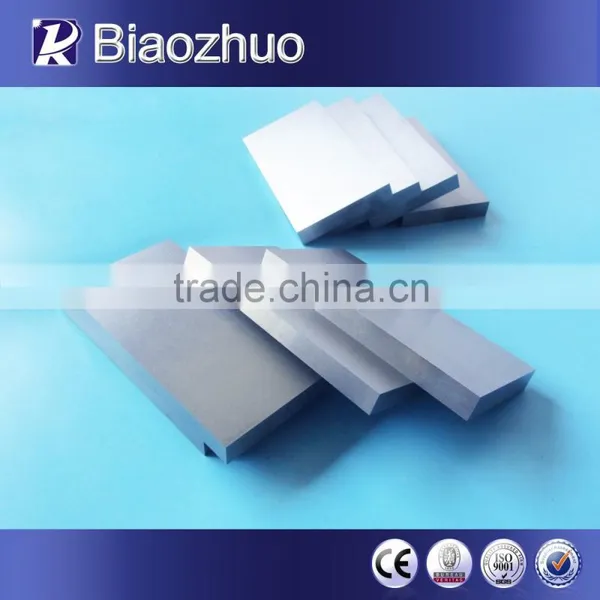

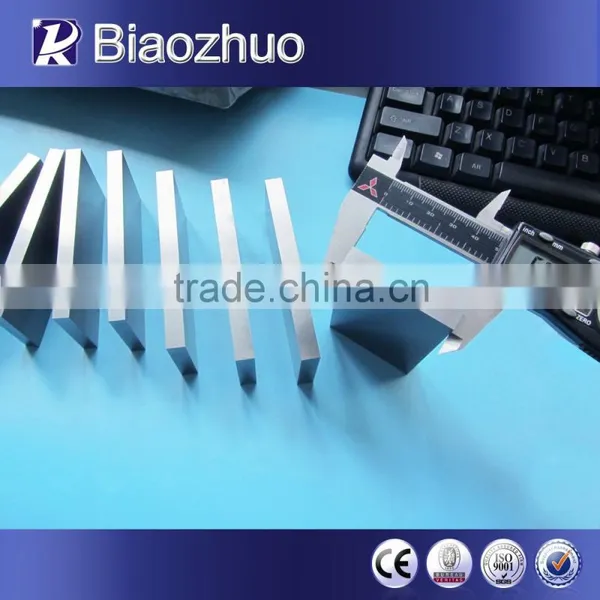

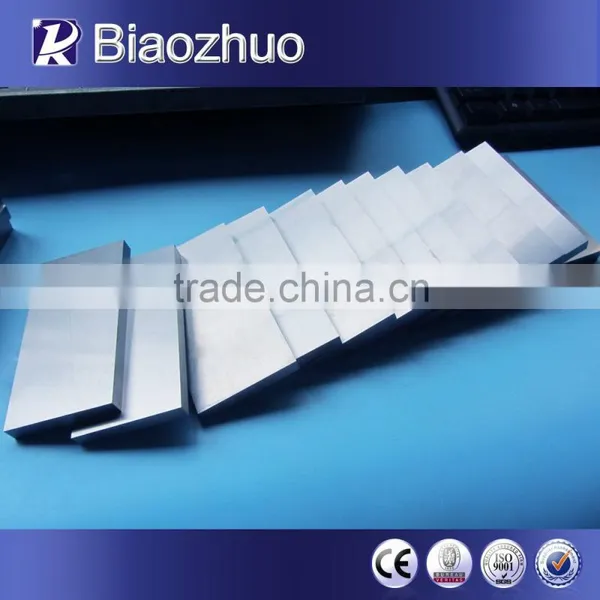

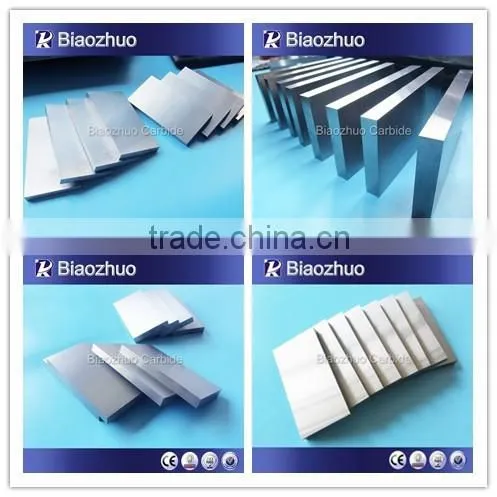

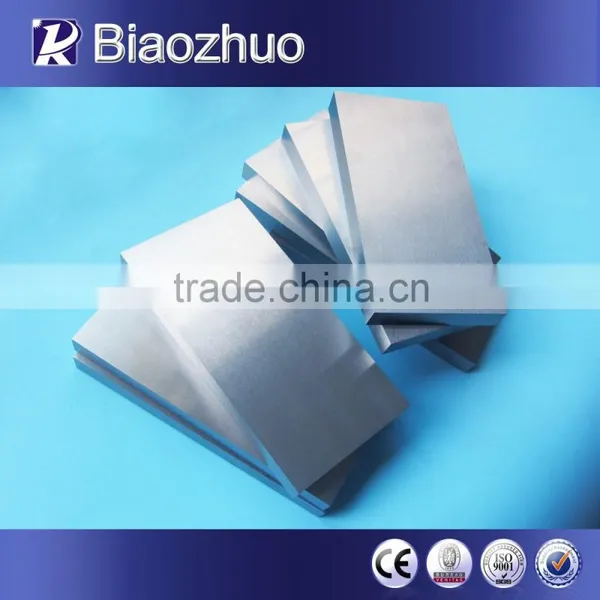

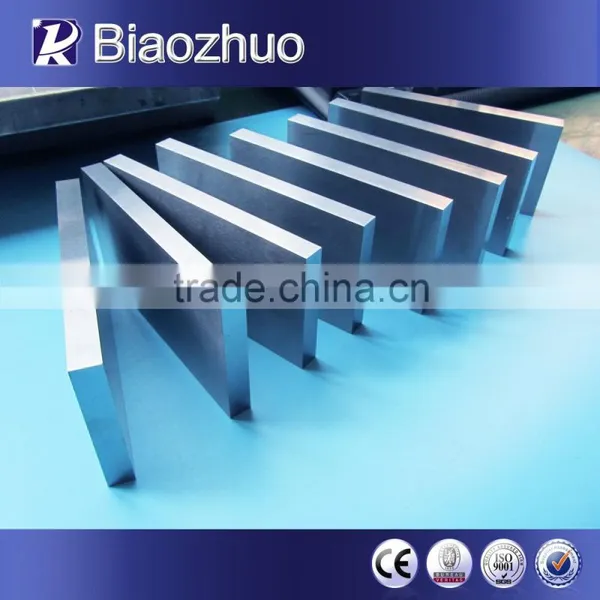

High hardness, excellent wear-resistance cemented carbide plate for cutting metals
Product Features of cemented carbide plate
Biaozhuo tungsten carbide plate, made from 100% virgin raw materials. It can be used in wide application field. Biaozhuo carbide plate have high hardness, good red hardness, excellent wear-resistance, high elastic modulus and compressive strength. The chemical properties of our tungsten carbide plates is stable, also the impact toughness & dialatation coefficient is low. The heat-conducting property and electrical conductivity of tungsten carbide plate is close to iron or iron alloy.
It is a very good material to produce the parts to resist high temperature & corrosion, also it is widely used as wear parts and shielding parts. We provide you high quality tungsten carbide plate which can enhance your productivity and save your cost.

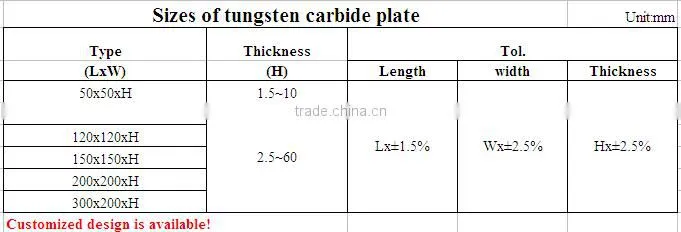

Product types and grades of cemented carbide plate
Below are the product type and grade of cemented carbide plate for your reference. For more details, please inform us.
High hardness cemented carbide plate for cutting metals
| Grades of cemented carbide plate used for electric motor | |||||||
| ISO Grade | WC % | CO % | Density | HRA | HRC | Bending Strength | Application field |
| g/cm3 | N/mm2 | ||||||
| K20 | 92 | 8 | 14.7 | 90 | 76 | ≥3500 | silicon steel sheet,upper mould |
| K30 | 89 | 11 | 14.3 | 88.5 | 73 | ≥3650 | silicon steel sheet of upper mould,the upper and lower mould of cold-rolled sheet materials |
| K40 | 85 | 15 | 14 | 87 | 70.4 | ≥3800 | the upper and lower mould of silicon steel sheet and cold-rolled sheet. |
| K40 | 80 | 20 | 13.7 | 84.5 | 66 | ≥4200 | the upper and lower mould of silicon steel sheet(good choice for thick plate with high impact) |
High hardness cemented carbide plate for cutting metals
| Grades of cemented carbide plate used for IC molds | |||||||
| ISO Grade | WC % | CO % | Density | HRA | HRC | Bending Strength | Application field |
| g/cm3 | N/mm2 | ||||||
| K10 | 94 | 0.8 | 14.9 | 91.55 | 78.4 | ≥3200 | for machining copper, aluminum and non-ferrors metal sheet. |
| K20 | 92 | 0.8 | 14.7 | 90.5 | 77 | ≥3600 | for machining copper sheet, aluminum sheet etc. |
| K40 | 87 | 1 | 14.3 | 88.5 | 73 | ≥3850 | has widely usage, like for copper sheet, aluminum sheet etc. |
| K40 | 85 | 1 | 14 | 88 | 72.2 | ≥4000 | processing for EI sheet, SPCC/stainless steel sheet etc. |

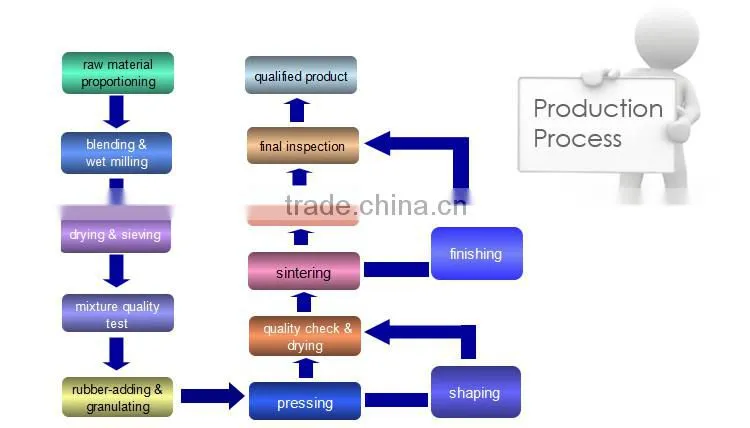

Product process of cemented carbide plate
Below are the production processes of cemented carbide plate, to ensure high quality, we assureed our customers that:
1. All raw materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
All goods would be checked well and packed safely before shipping.

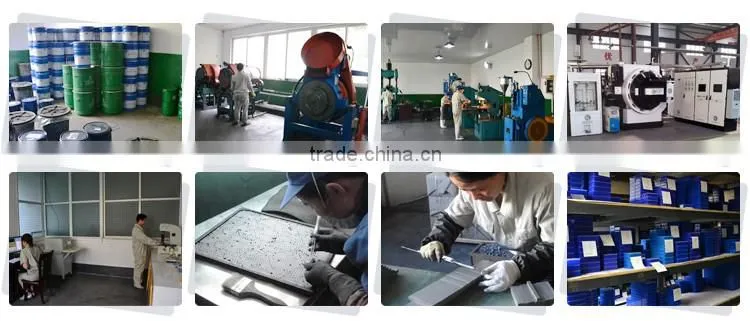

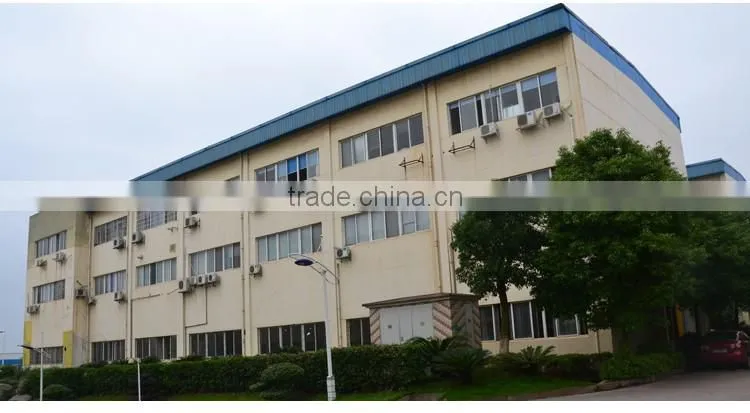

Zhuzhou Biaozhuo Cemented Carbide Material Co., Ltd. is a professional tungsten carbide manufacturer and exporter. Located in Zhuzhou City, the world renowned cemented carbide base in China, we have advantages in researching, designing and manufacturing various carbide products.

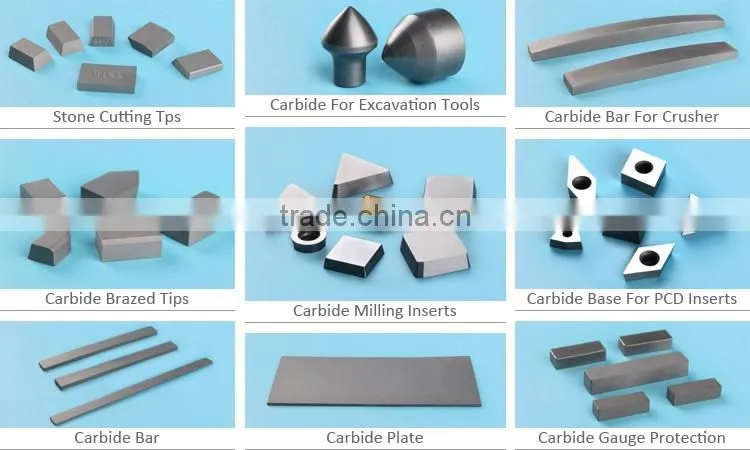

With more than 15 years experience in this field, we have won a reputation as “the pioneer in carbide field”, and we have been assessed by Alibaba and BV as a professional manufacturer. And our product range covers carbide rods, plates, buttons, stone cutting tips, brazed tips, milling inserts, wear parts as well as carbide bars and strips.
Up to now, our products have been exported to many countries such as USA, Canada, Russia, Romania, Italy etc. And we are committed to be a reliable and faithful cooperation partner to our customers. To win your satisfaction and to build a win-win relationship is our goal.
Welcome to contact us!
| 24 hours online service, welcome to contact us. | |
| Inquiry note | To quote best price for your inquiry, please inform us your ideal type in terms of grade, type or drawing with dimension and tolerance, quantity etc. |
| MOQ | MOQ could be 100 pieces or 1kg. |
| But the price will be a little bit high when the quantity below 50kg or 2000USD. | |
| Sample | 1. Samples are available upon customers request. ; |
| 2. Sample time is 7 days | |
| 3. Sample sent by DHL,UPS,FEDEX, EMS, China Post Airmail etc | |
| Delivery time | For standard types, the delivery time is normally 20~25 days. |
| For nonstandard type or further processed type, the delivery time is 25~35 days. | |
| For urgent needs, delivery time may be pushed by negotiation. | |
| Payment method | 1.T/T, 30% Deposit; |
| 2. Balance payment before shipment ; | |
| 3. Other payment methods such as Paypal, West Union, L/C are negotiable. | |
