Specifications

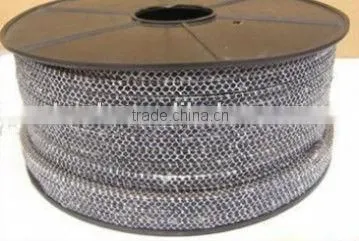

Size : From 3 x 3 mm to 50 x 50mmAramid fiber packing(Kevlar fiber packing)
1 .Description: Aramid fiber packing(Kevlar fiber packing) is made of Du Pont's Kevlar yarn impregnated with PTFE dispersion and processed with lubricant.braided into square cross section.
As the strength and module of Kevlar is as high as the steel-like strength. So this packing compared with other kinds of braided packing. they can resist more serve media and higher pressure. It can be installed separately or as end rings with other kinds of packing to combine different characteristics into packing set.
2.Specifications:
1).Working temperature: -100 oC - +360oC
2).Working pressure: 100 Bar
3).Dia: 3mm-70mm
lor: yellow
4. Application:
Can be used for pumps in all types of industry such as chemical,petrochemical,pharmaceutical,food and sugar industries,pulp and paper mills,power ststions etc.Tt is also a durable packing able to withstand granular and abrasive applocatons,it is recommended for serve on superheated lvents,liquefied gases,sugar syrups and other abrasive fluids.For hot water applications it can be used uncooled up to 160 degree C
Stock dimension :
mm sq. |
4 |
5 |
6 |
8 |
10 |
11 |
12 |
14 |
16 |
18 |
20 |
22 |
25 |
m/kg abt. |
34 |
25 |
15 |
10 |
7.1 |
5.3 |
4.1 |
3.6 |
2.8 |
2.3 |
1.8 |
1.4 |
1.1 |
Technical data:
| valve | Piston pump | Centrifugal pump | |
| T oC | -100 oC - +360oC | ||
| P bar | 100 | 100 | 70 |
| V m/s | 2 | 1.5 | 20 |
| PH | 2---13 | ||
