PZ673H knife-type gate valve
- 40000 Piece / Pieces per Month
- Tianjin port; Qingdao port; Shanghai port
- T/T
Product Details
Standard or Nonstandard: | Standard | Structure: | Gate | Pressure: | Other, 1.0~1.6(Mpa) |
Power: | Other, Manual, worm gear and worm drive, electric, pneumatic | Material: | Stainless Steel | Temperature of Media: | Other, ≤425℃ |
Media: | Other, Water, steam, oil, nitric acid kind of corrosive medium, acetic acid c | Port Size: | 50-1200(mm) | Place of Origin: | Tianjin, China |
Model Number: | PZ673H type | Brand Name: | DUNHUI |
Product Description
The best quality and faith bring us the good market, such as USA, CANADA, BRAZIL, AUSTRALIA, UK, GERMANY, ITALY, SPAIN, TURKEY, ALGERIA, DUBAI, RUSSIA, UKRAINE, SINGAPORE, MALAYSIA etc. “Made in DUNHUI” in many Countries.
“DUNHUI” is your correct choice. Welcome to visit

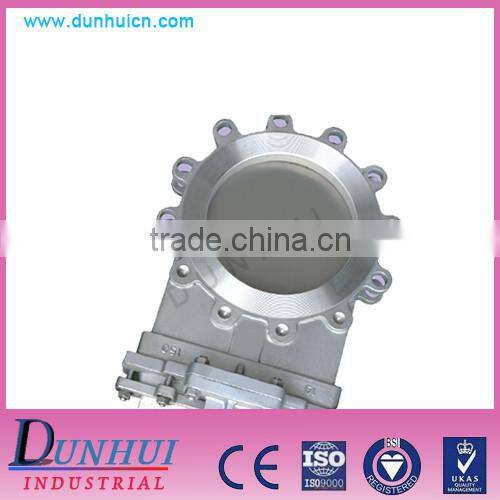

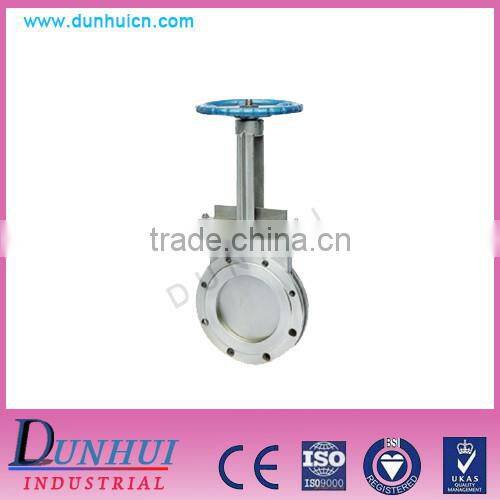

1. PZ673H knife-type gate valve
2. Main performance indicators
Name | Body,bonnet, bracket | Valve plate | Sealing surface | Stem | Seat |
Meterical | Stainless steel, carbon steel, gray cast iron | Stainless steel, carbon steel | Rubber,ptfe,Stainless steel ,hard alloy | Stainless steel | 25 304 316 |

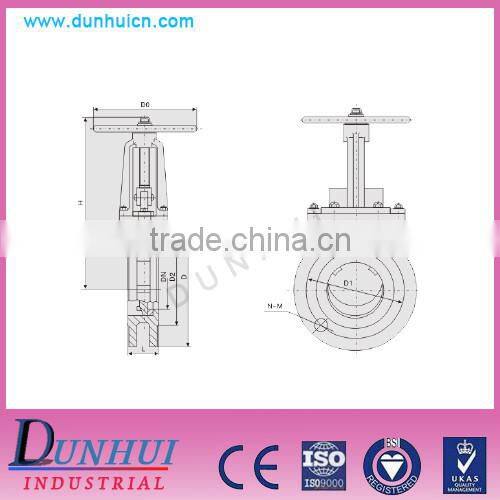

3. Product drawings
4. Main Dimensions
PN(Mpa) | DN | L | D | D1 | D2 | H | Weight(kg) |
1 | 50 | 43 | 160 | 125 | 100 | 285 | 8 |
100 | 52 | 215 | 180 | 155 | 365 | 14 | |
150 | 56 | 280 | 240 | 210 | 475 | 29 | |
200 | 60 | 335 | 295 | 265 | 540 | 38 | |
250 | 68 | 390 | 350 | 320 | 630 | 66 | |
1.6 | 50 | 43 | 160 | 125 | 99 | 285 | 8.5 |
100 | 52 | 220 | 180 | 155 | 365 | 15 | |
300 | 78 | 460 | 410 | 375 | 780 | 107 | |
500 | 127 | 715 | 650 | 609 | 1200 | 410 | |
1200 | 254 | 1485 | 1485 | 1325 | 2800 | 1480 |
5. Inspection Process

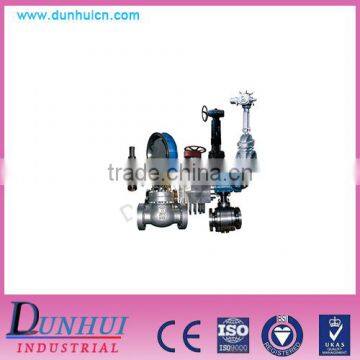

6. Valve total picture
7. Technical Standard:
Design: EN593
Face to face: EN558-1
Flange drilling: EN1092
Upper flange connection: ISO 5211
8. Personnel station:
Have professional salesmen, and 6 Engineers, More than 30 inspectors.
9. Quality and Safety:
We have a very strict and complete quality control system, which promises that goods we produced are always of the best quality, the enough inspectors to ensure that each product can meet the quality requirements of customers. We do the final inspection in own factory with ISO 9001:2008.
10.Location:
DUNHUI has a convenient location at the city’s exporting business zone, Dongli District. We are only 19 km to Tianjin International Airport, and very close to major highways,TIANJIN port. We look forward to work with your business!
