Home > Construction & Decoration > Pipe Fittings > Tee > Flange Ductile Iron Pipe Fittings

Flange Ductile Iron Pipe Fittings

Name: Flange Ductile Iron Pipe Fittings
Brand: DUNHUI
SKU: 120790763
Availability: InStock

Flange Ductile Iron Pipe Fittings thumbnail-1

Flange Ductile Iron Pipe Fittings thumbnail-2

Flange Ductile Iron Pipe Fittings photo-1

Flange Ductile Iron Pipe Fittings photo-2

US$ 900 - 1,020 MOQ: 20 Pieces

Key Specifications

Get Latest Price

Material:

Iron

Technics:

Casting

Type:

Flange

Contact Supplier Request Quote Chat Now

Tianjin Dunhui Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin; Qingdao; Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Iron

Technics Casting

Type Flange

Place of Origin Tianjin, China

Model Number ductile iron pipe

Brand Name DUNHUI

Connection Other, push on

Shape Reducing

Head Code Other, circle, Round

Ductile iron pipe fitting

DUNHUI is specialized in producing a full range of ductile iron pipe fittings, and Construction Products. Including the following aspects:

·Flanged pipe fittings as per EN545/ISO2531

·Loosing flange fitting

·Ductile iron push-in socket pipe fitting

·Mechanical Joint socket pipe fittings(MJ)

·Express Joint socket pipe fittings(EX)

·Fittings for PVC pipes

·AWWA C110 Flanged Fittings

·AWWA C153 MJ Fittings

·Other pipeline Accessories and according to customers’ drawing

“DUNHUI” is your correct choice. Welcome to visit

1. Flange ductile iron pipe fittings

Made of ductile iron.

Blue epoxy painted finish.
According to UNE-EN 545 norms.
Same body dimensions for PN10, PN16 andPN25.

2. Products description and Main dimensions

Material	Ductile iron, grade 500-7/450-12 in accordance with ISO10083
Gasket	Rubber EPDM in accordance with EN681.1
Pressure	PN10, PN16 andPN25
Fluid Temperature	0°C-50°C, excluding frost
Internal lining	Fusion bonded epoxy
External Coating	Epoxy applied by FBE
Reference rules	Dimensions and testing in accordance with EN545
Usage	Connected by flange

Nominal Size and Weight of PN10 Flange
DN	D1	D2	D3	DE	a	c	S	r	L	weight(Kg)
40	150	110	84	56	19	3	15	6	36	1.7
50	165	125	99	66	19	3	15	6	36	2.1
80	200	160	132	98	19	3	15	6	36	2.9
100	220	180	156	118	19	3	15	6	36	3.3
150	285	240	211	170	19	3	15	8	34	4.9
200	340	295	266	222	20	3	16	8	36	6.8
300	455	400	370	326	24.5	4	19.5	10	46	12.8
500	670	620	582	532	26.5	4	21	12	46	21.8
800	1015	950	901	842	35	5	24.5	16	54	54.8
1000	1230	1160	1112	1048	40	5	28	16	61	81.4
1100	1340	1270	1218	1152	42.5	5	30	20	66	105
1400	1675	1590	1530	1462	46	5	32	20	66	148
1600	1915	1820	1750	1668	49	5	34.5	20	69	206

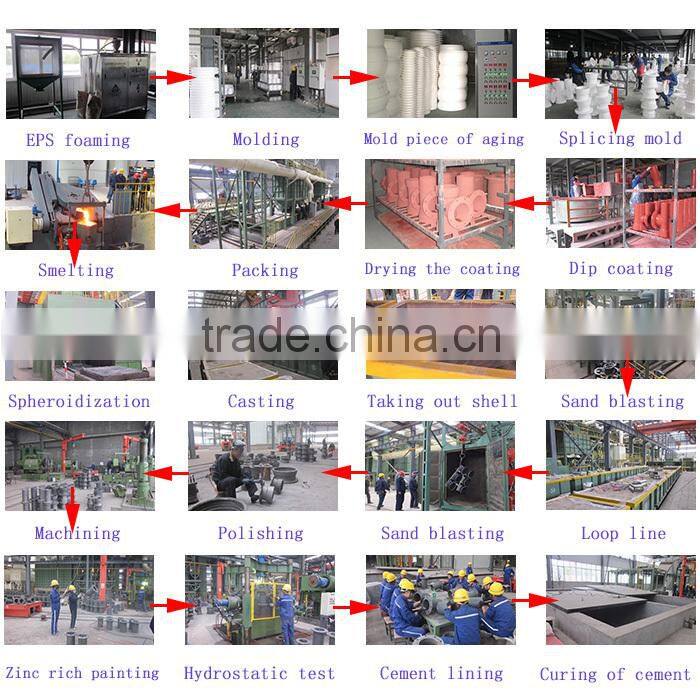

3. Production process

Quality Control Groups

Dimensions Test
Manufacture process Inspection
Process Inspection including sand cleaning, assembling, packing and coating
Final Inspection including delivery marks and etc.
Particular Tests for different products, such as Load Test, Hydro Test and etc.

Process

Raw Material Inspection

Raw Material inspection including chemical
components analysis, tensile strength test and etc.

Laboratory

Chemical Components
Microstructure Test
Tensile Strength

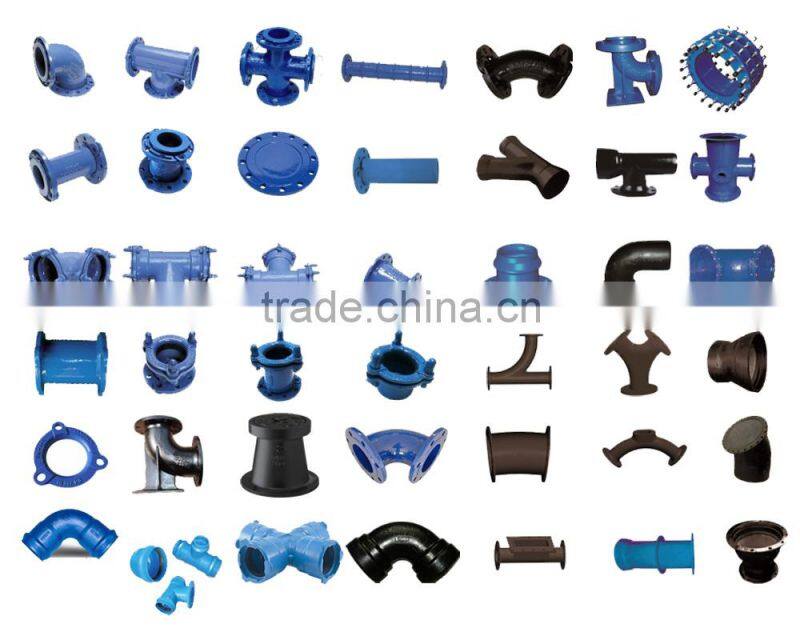

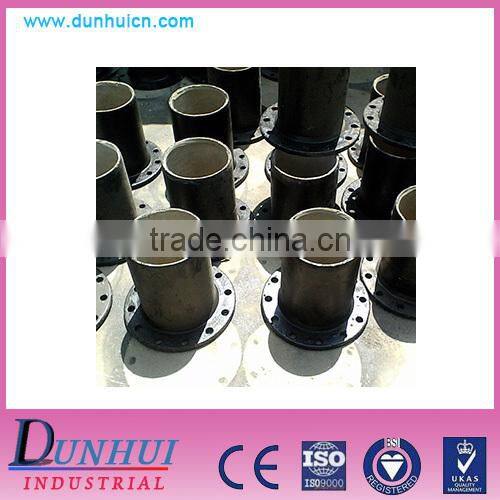

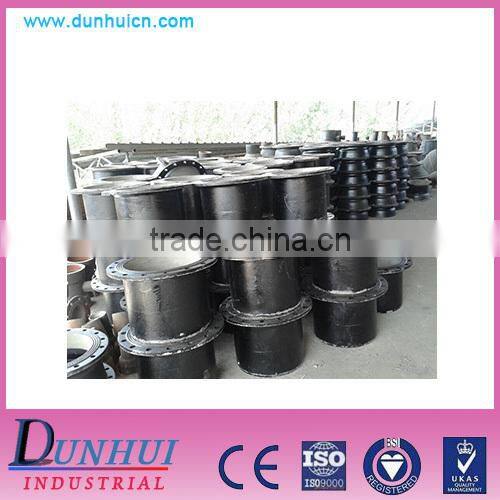

4. Ductile iron pipe fitting pictures

5. Technical Standard:

Design: EN545
Certification: ISO9001:2008

6. Personnel station:

Have professional salesmen, and 6 Engineers, More than 30 inspectors.

7. Quality and Safety:

We have a very strict and complete quality control system, which promises that goods we produced are always of the best quality, the enough inspectors to ensure that each product can meet the quality requirements of customers. We do the final inspection in own factory with ISO 9001:2008.

8.Location:

DUNHUI has a convenient location at the city’s exporting business zone, Dongli District. We are only 9 km to Tianjin International Airport, and very close to major highways,TIANJIN port. We look forward to work with your business!
