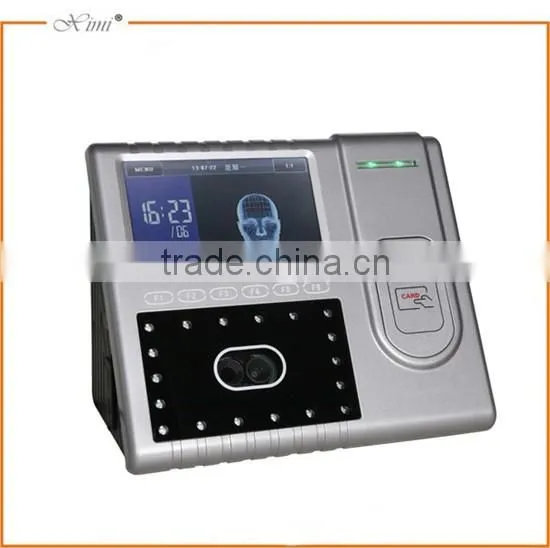

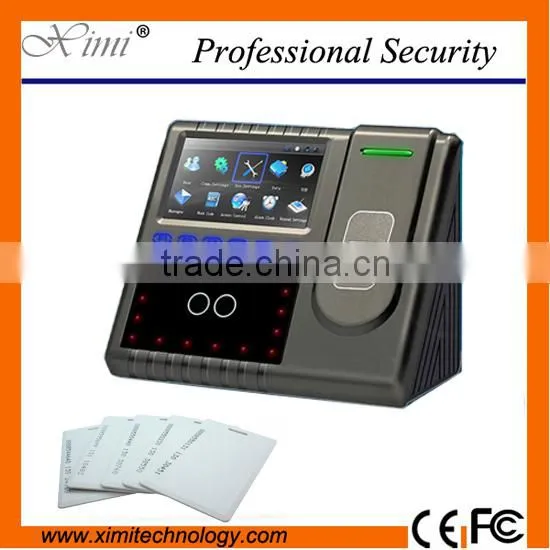

Standalone TCP/IP GPRS/WIFI communication and back up battery 400 face user RFID facial time attendance and access controller

CPU

Multi-Bio  CPU 630 MHz

Memory

256M Flash, 64M SDRAM

Hardware Platform

XM600 Multi-Medium Development Platform

Fingerprint Sensor

Optical Fingerprint Sensor without film

Camera

High Resolution Infrared Camera

Display

4.3’’ TFT touch screen

Face capacity

400 (1:N)

Card capacity

10000

Logs capacity

100,000

Algorithm Version

 Face 7.0 & Finger 10.0

2000mAh backup battery

Optional

Communication

TCP/IP,RS232/485

USB-HOST

Two USB-Host

Wireless Wi-Fi

Optional

Time attendance Standard functions

ID Card(302 Optional), Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST

Access control interfaces for

3^rd party electric lock, door sensor, exit button

Wiegand Signal

Output

Optional functions

serial printer, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, GPRS

Power supply

12V3A

Verification Speed

≤2 sec

Operating temp

0°C- 45 °C

Operating Humidity

20%-80%

Dimension

193.6*146.8*111 mm (Length*Width*Thickness)

Gross Weight

1.9 kg
