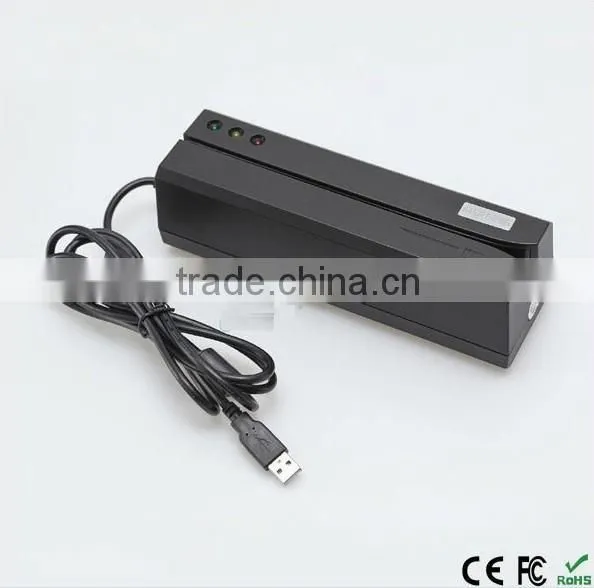

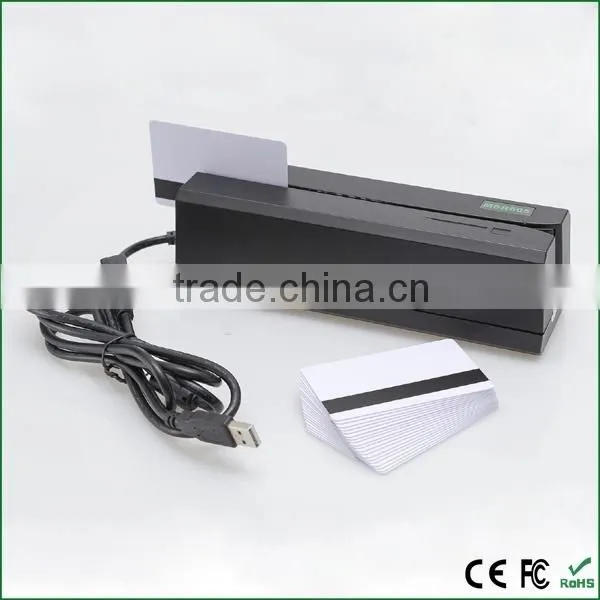

Magnetic Stripe Card Encoder MSRE206
US$ 140 - 160
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
QBF
Model Number:
MSRE206 605
Interface:
USB
Payment & Shipping
Payment Methods:
Port of Shipment:
Fob Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MSRE206 605 Magnetic Card Reader Writer for Track 1 2 3US$ 140 - 160MOQ: 1 Piece -
Electronic Cash Register,black Color Factory PriceUS$ 90 - 118MOQ: 1 Piece
-
Electronic Cash Register Factory Price ( ECR1000-K4) Quality ChoiceUS$ 95 - 120MOQ: 1 Piece
-
Electronic Cash Register( ECR1000-A5)US$ 90 - 118MOQ: 1 Piece
-
Black Color Electronic Cash Register ECRUS$ 90 - 110MOQ: 1 Piece
Brand Name
QBF
Model Number
MSRE206 605
Interface
USB
Card Slots
Single
Installation
External
Place of Origin
Guangdong, China
Magnetic Stripe Card Encoder MSRE206
MSR magnetic card reading and writing machine, compatible with MSRE206 completely. It is ideal for access control, time keeping, banking, credit verification and related applications. In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR 605 reader/writer.
MSRE206 605 magnetic card reader writer for track 1 2 3
1. Compatible with MSR206 606
2. USB interface
The MSR 605 is designed to offer a reading and writing solution of high and/or low coercivity cards that will attractively complement an existing system.
Specification:
| 1). Communication: Standard USB |
| 2). 3-track version can read/write all three tracks data, 300-4000 oe |
| 3). Program software for Windows 98/Me/XP/Vista |
| 4). Reading/Writing magnetic stripe card complied with ISO formats |
| Mechanical: |
| 1). Body: ABS 94V-0 / Metal housing optional |
| 2). Swipe: Manual, single direction |
| 3). Outline: 212Lx64Wx63H mm |
| 4). Weight: 1.4Kg approx. |
| Environment: |
| 1). Operation: -10oC to 60oC 10 to 85% humidity, non condensing |
| 2). Storage: -30oC to 70oC 10 to 90% humidity, non condensing |
| Consumption: |
| 1). Current/operating Typical 350mA Max |
| 2). 600mA plus for each writing track |
| 3). Power supply: External switching Power, Input: 100-240VAC, Output: 24VDC 2.5A |
| Performance: |
| 1). Read Circuit: Track 1&3: 210bpi Track 2: 75 or 210 bpi |
| 2). Bit per Char: 5-7 bit per char. |
| 3). Media Speed: Read, 5-50 ips (read speed 5-40 ips for track 2 at 210bpi) |
| Write, 5-30 |
| 4). Media Coercivity: Read 300-4000 Oe Mag. Card |
| Write 300-4000 Oe Mag. Card |
| 5). Jitter Card: Read bit to bit interval <+/-15% card |
| Write bit to bit interval <+/-10%,Sub interval<+/-12% at 30ips |
| 6). Low amplitude Card: Read 60% for both 75& 210bpi |
| 7). Error Rate: Read < 0.5% Write < 0.8% |
| 8). Media Swipe: Head life 1,000,000 passes for both read & write head |
| 9). Configuration( MSRE206): Read/Write Track: 1&2&3 |
| Hi-C: R/W |
| Lo-C: R/W |
| Rate: |
| CE, FCC, UL, CUL |
|

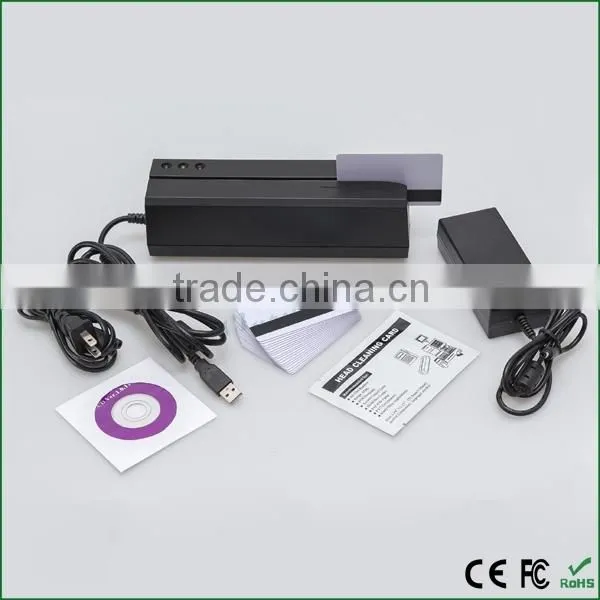

Package Includes:
1).1 x Brand New Magnetic Card Reader/Writer, MSR. 605
2). 1 x Software CD including USB Driver, Demo Software, User Manual
3). 1 x Power adaptor: AC 100~240V in / DC 24V, 2.2~3A out.
4). 1 x Clearning Card
5). 20 x Free Blank HiCo Magnetic Card
