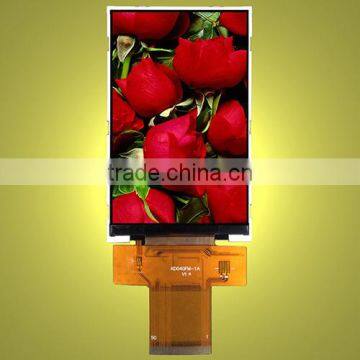

Detiled Descriptions:
| 1 | LCD name | 4 inch IPS electronic display |
| 2 | Part No. | KD040FM-1A-01 |
| 3 | Compatible part No. | KD040FM-1-TP |
| 4 | Size. | 4.0 inch |
| 5 | Display type | IPS |
| 6 | Display colors | 65K/262K /16.7M |
| 7 | Resolution (pixels) | 480(RGB)*800 |
| 8 | Pixel pitch | 0.108(H)*0.108(V) |
| 9 | Viewing direction | ALL (160°) |
| 10 | Controller IC | ILI9806E |
| 11 | Luminance | 330cd/m2 |
| 12 | Contrast | 500 |
| 13 | Display mode |
Transmissive Normally Black |
| 14 | Pin NO. | 50pins |
| 15 | Pin pitch | 0.5mm |
| 16 | Connecting type | FPC Socket |
| 17 | Overall size | 58.26*98.1*2.2 mm |
| 18 | Viewing area | 53.44*88.0 mm |
| 19 | Active Area | 51.84*86.40mm |
| 20 | Interface type |
8/9/16/18 bit MCU 16/18/24 bit RGB 3 wire SPI |
| 21 | Input voltage | 3.3V |
| 22 | Backlight type and color | LED backlight /White |
| 23 | Backlight |
8 LED in series Vled =12.8V, Iled=40mA |
| 24 | Life span | 100000h |
25 |
Operating temperature range |
-20----70 °C |
| 26 | Storage Temperature range | -30----80°C |
| 27 | Certification of registration | ISO9001:2008 |
| 28 | Compliant | RoHS |
Lead time:
Sample (1---30 PCS) immediately
31---100 PCS 1 week
101---500 PCS 1--2 weeks
501---1000 PCS 2--5 weeks
1001---5000 PCS 3--5 weeks
5000 PCS+ 5--7 weeks

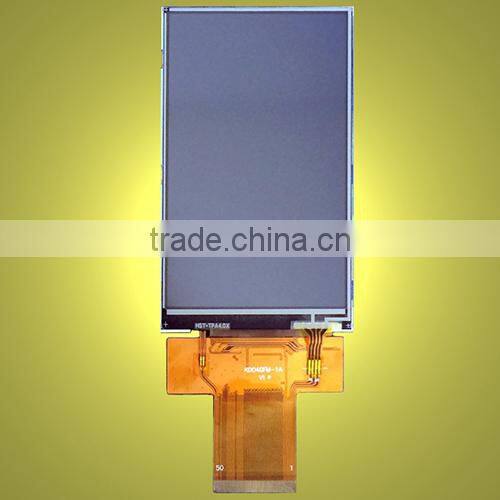

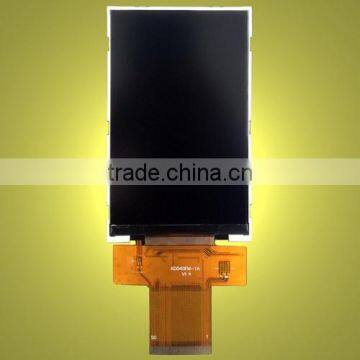

Pic 2: the photo of the front of the non-working LCD module

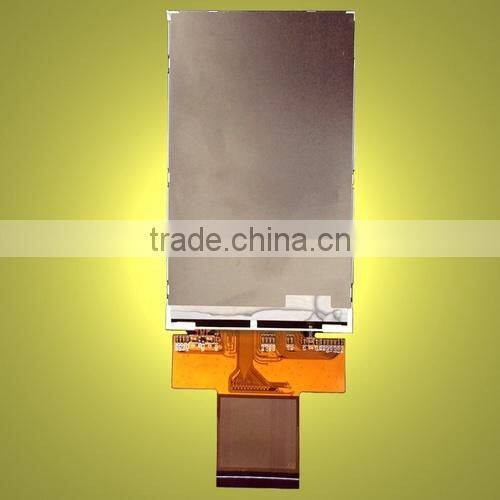

Pic 3; the photo of the back of the LCD module

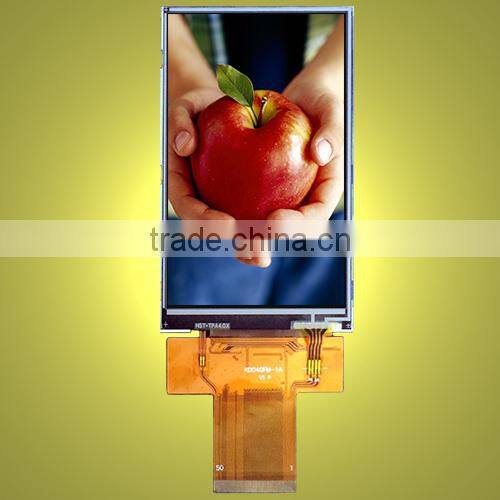

KD040FM-1A-TP is a very special LCD module,the display effect is very similar to OLED.
Compared with the usual LCD module, it has great difference:
| KD040FM-1A-TP | Usual LCD module | |
| contrast | 500:1 | 300:1 |
| Brightness | 330 nits | 200 nits |
| Sunlight readability | Yes | No |
| Response speed | 0.1mS | 10mS |
| viewing angle | Full viewing angle | 12:00/6:00 |
| Side viewing | No color change | Color get dark and dim |
| Anti-static | Strong | Weak |

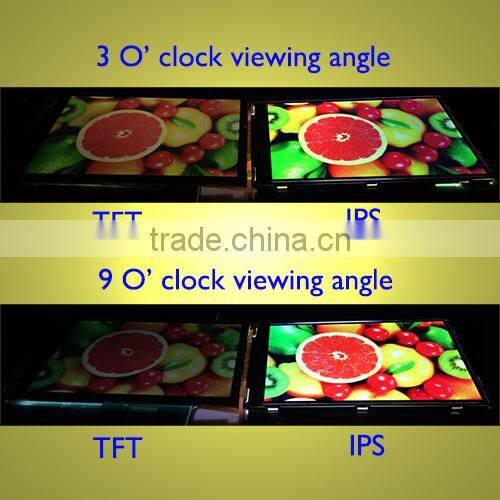

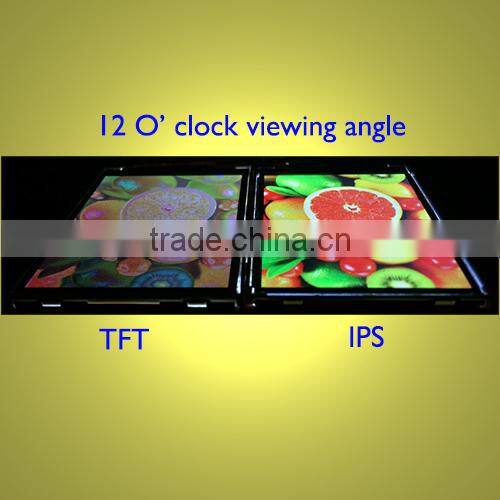

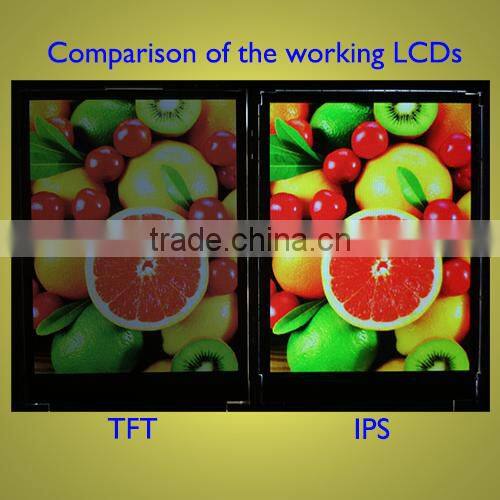

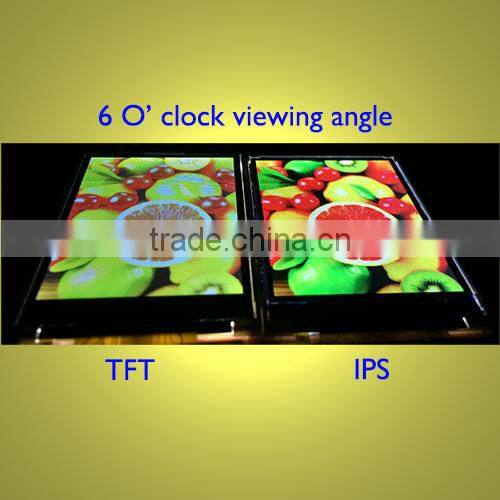

PIC 4-7: Pictures of Comparison

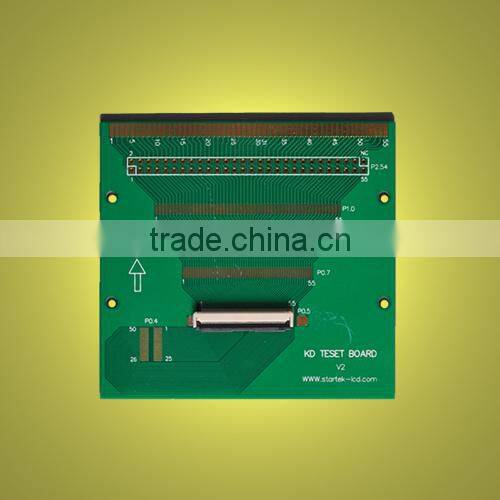

Pic 8.Transferring board is used to amplify the LCD interface so that we can
easily and quickly to function the LCD.We tend to like making the LCD work
before designing the product

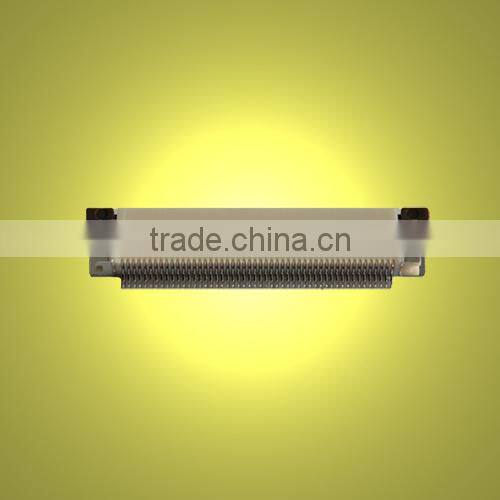

Pic 9:Conector is used to connect the LCD to the PCB via FPC
