Help Center3.5 Inch 320*480, ILI9486L, Full Viewing Angle, Sunlight Readable, 8/9/16/18 MCU, 16/18 RGB, 3/4 SPI Interface IPS LCD Module
Related Products
-
2.4 Inch 240*320 ILI9325C, Full Viewing Angle, Sunlight Readable, Transflective Display MCU/RGB/SPI Interface LCD ModuleNegotiableMOQ: 1 Piece -
2.4 Inch 240*320, ILI9325C, Full Viewing Angle, Sunlight Readable, MCU/RGB/SPI Interface IPS LCD ModuleNegotiableMOQ: 1 Piece
-
2.4 Inch 240*320, ST7789V, Full Viewing Angle, Sunlight Readable, 8/9/16/18MCU, 16/18 RGB, 3/4 SPI Interface IPS LCD ModuleNegotiableMOQ: 1 Piece
-
Panel Display 2.6 Inch IPS Graphic Panel and Sunlight Readable IPS Screen Panel With High ContrastNegotiableMOQ: 1 Piece
-
Touch Screen Display 2.6 Inch IPS Graphic Panel and High Brightness IPS Screen Panel With Full Viewing AngleNegotiableMOQ: 1 Piece
Detailed descriptions:
| 1 | LCD name | Landscape TFT 3.5 inch display |
| 2 | Part No. | KD035FM-7-01 |
| 3 | Compatible part No. | No |
| 4 | Size. | 3.5 inch |
| 5 | Other model Part No | No |
| 6 | Display type | TFT |
| 7 | Display colors | 65K/262K |
| 8 | Resolution (pixels) | 320 (RGB)*480 |
| 9 | Pixel pitch | 0.153 (H) x 0.153 (V) |
| 10 | Viewing direction | ALL (160°) |
| 11 | Controller IC | ILI9486L |
| 12 | Display mode |
Transmissive Normally white |
| 13 | Overall size | 54.58*83.58*2.1mm |
| 14 | Viewing area | 50.56*70.04mm |
| 15 | Active Area | 48.96*73.44mm |
| 16 | Luminance | 700cd/m2 |
| 17 | Contrast | 700 |
| 18 | Interface type |
8080 8/9/16/18bit MCU interface 16/18bit RGB interface 3/4 wire SPI interface |
| 19 | Pin NO | 50pins |
| 20 | Pin pitch | 0.5mm |
| 21 | Connecting type | FPC Socket |
| 22 | Input voltage | 3.3V |
| 23 | Backlight type and color | LED backlight/white |
| 24 | Backlight |
8 LED parallel, common anode If=160mA, Vf =3.2V |
| 25 | Life span | 100000h |
| 26 | Operating temperature range | -20----70 °C |
| 27 | Storage Temperature range | -30----80 °C |
| 28 | Certification of registration | ISO9001:2008 |
| 29 | Compliant | RoHS |
| 30 | Quality grade | Industrial grade quality |
| 31 | Business policy 1 | Stock for sale |
| 32 | Business policy 2 | Long time supply |
| 33 | Business policy 3 | No MOQ |
| 34 | Business policy 4 | Full Range |
Lead time:
Sample (1---30 PCS) immediately
31---100PCS 1 week
101---500 PCS 1--2 weeks
501---1000 PCS 2--5 weeks
1001---5000 PCS 3--5 weeks
5000 PCS+ 5--7 weeks

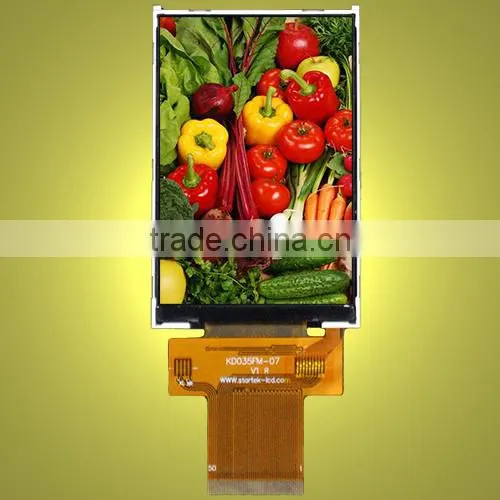

Pic 1:the photo of the front of the working lcd
Pic 2.the photo of the front of the non-working lcd module
Pic 3.the photo of the back of the lcd module
KD035FM-7 is a very special LCD module,the display effect is very similar to OLED.
Compared with the usual LCD module, it has great difference:
| KD035FM-7 | Usual LCD module | |
| contrast | 700:1 | 300:1 |
| Brightness | 700 nits | 200 nits |
| Sunlight readability | Yes | No |
| Response speed | 0.1mS | 10mS |
| viewing angle | Full viewing angle | 12:00/6:00 |
| Side viewing | No color change | Color get dark and dim |
| Anti-static | Strong | Weak |
PIC 4-7: Pictures of Comparison
Pic14.Transferring board is used to amplify the LCD interface so that we can
easily and quickly to function the LCD.We tend to like making the LCD work
before designing the product
