Sc503 RFID Card Time Attendance and Access Control System With 30000 ID Card Capacity

Name: Sc503 RFID Card Time Attendance and Access Control System With 30000 ID Card Capacity
Brand: XIMI
SKU: 120760851

US$ 1 - 110 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

XIMI

Model Number:

sc503

Shenzhen Ximi Technology Co.,ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name XIMI

Model Number sc503

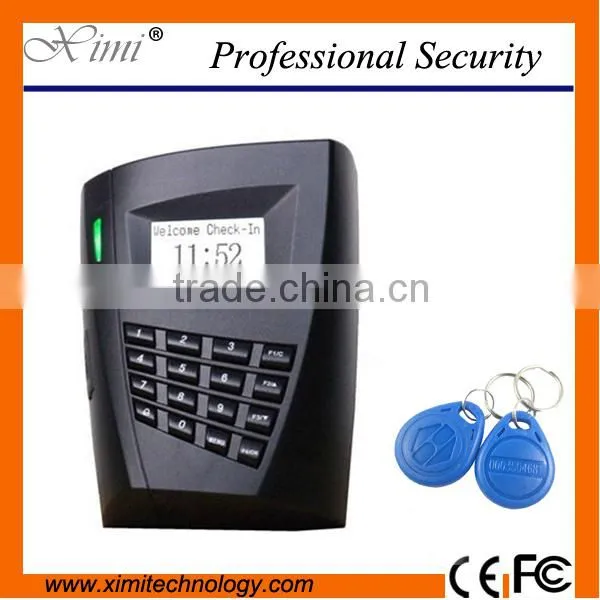

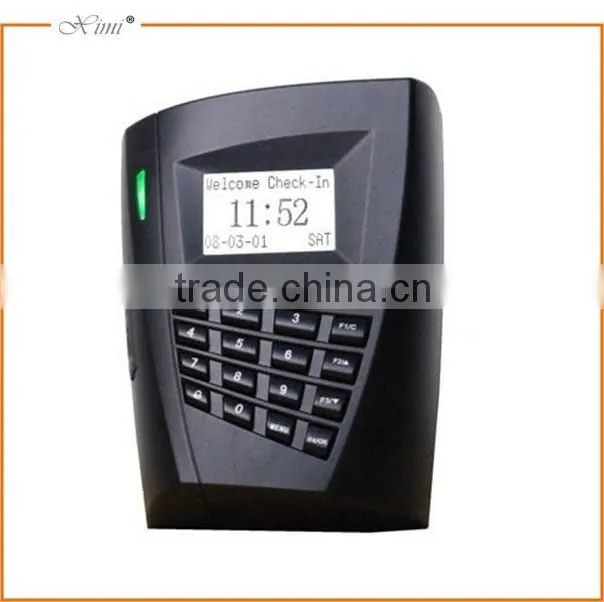

SC503 is an access control devices produced by XIMItech ,which is made with elegant design

and professionalsurface treatment.

The device have lock control, alarm, exit button, door sensor.

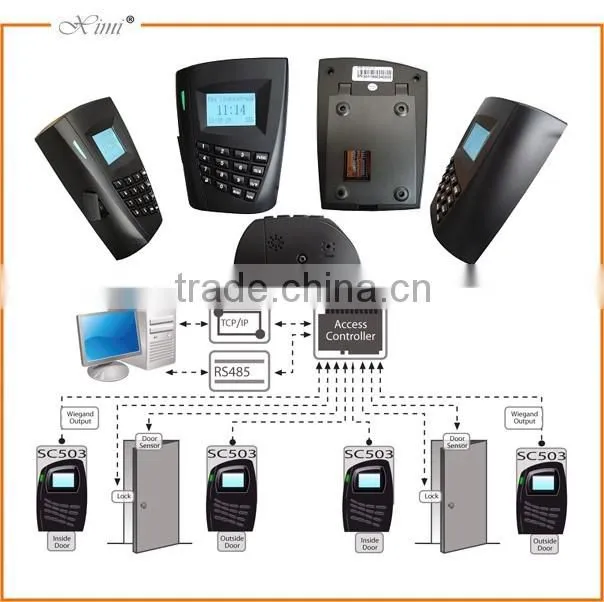

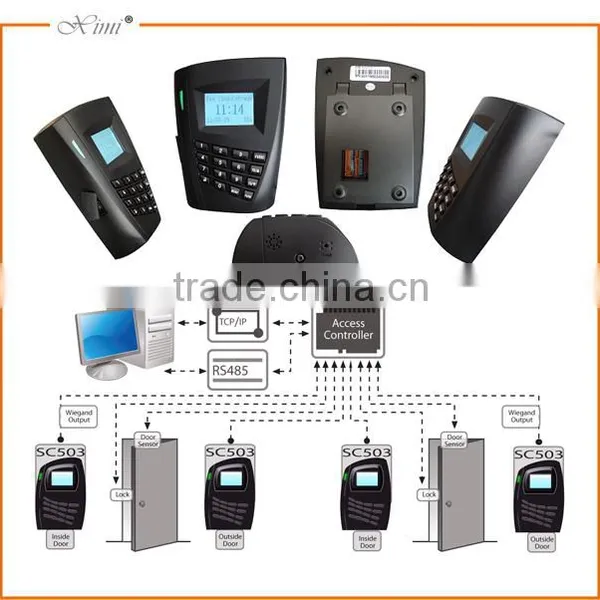

The wiegandin interface is used to connect external reader to construct master and slave system.

Also the device can be used to connect with a control panel as a reader by wiegandout interface.

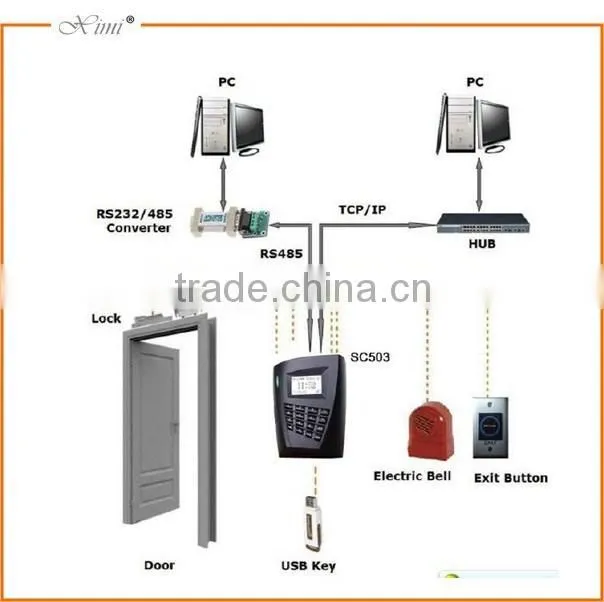

The operation can be done on PC software and upload to the device through TCP/IP, RS232/485

communication.

The USBhost is used for data download and upload, including user data and record etc.

S100 is suitable for house, small office and factory etc.

1. Elegant casing design

2. Easy installation, safe and reliable

3. Simple and convenient operation method

4. ID card standard, IC card optional

5. Full door lock control system

6. Wiegand out to connect with control panel

7. Wiegand in to construct master and slave system

8. Audio prompt and LED feedback guide the user to operate

ID card Capacity	30000
Transaction Capacity	50000
Communication	TCP/IP, RS232/485, USB-Host
Access Control Interface for	3rd party electric lock, door sensor, exit button, alarm, Door Bell
Wiegand Signal	Output&Input
Standard Functions	Anti-passback, SMS
Optional Functions	Proximity, Workcode, Webserver
Display	LCD
Power Supply	12V DC
Operating Temperature	0 °C- 45 °C
Operating Humidity	20%-80%
