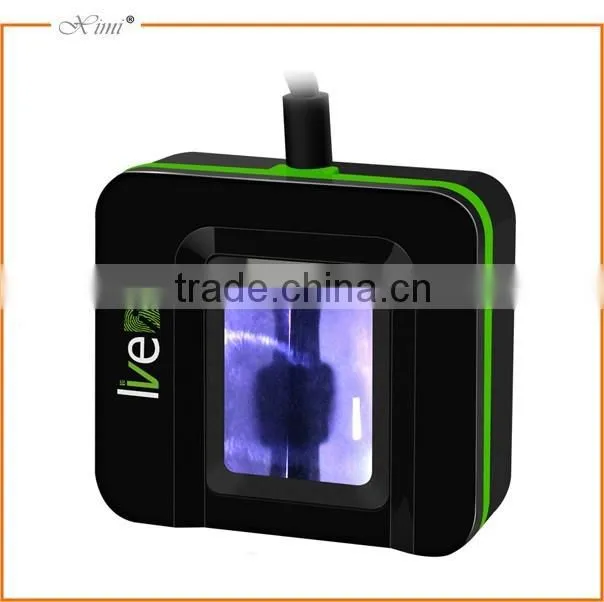

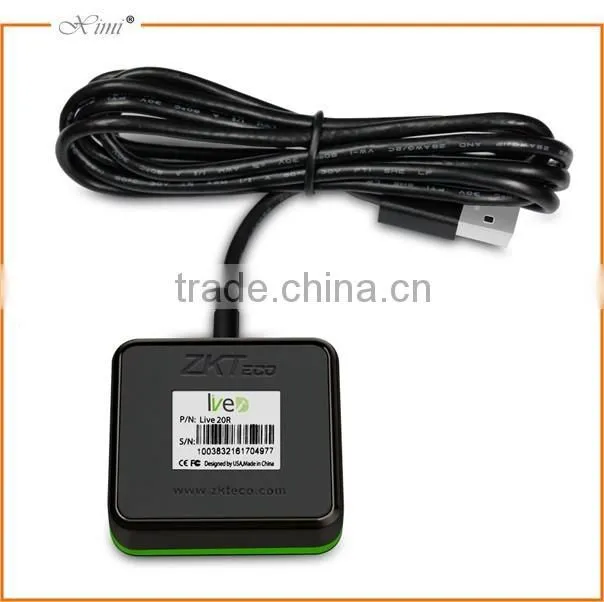

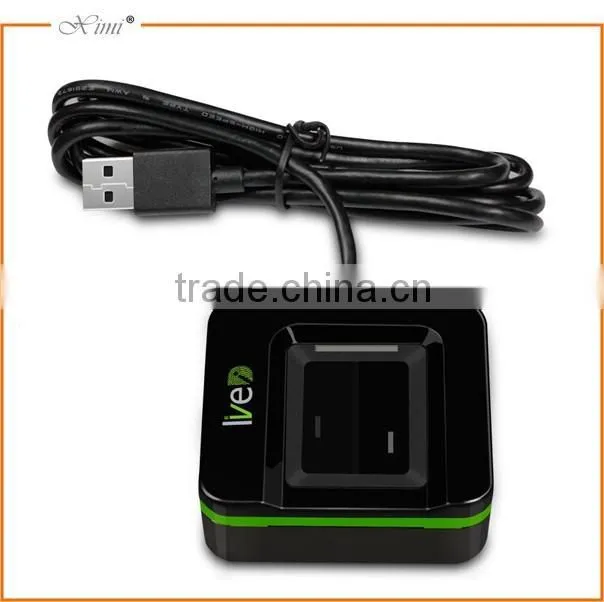

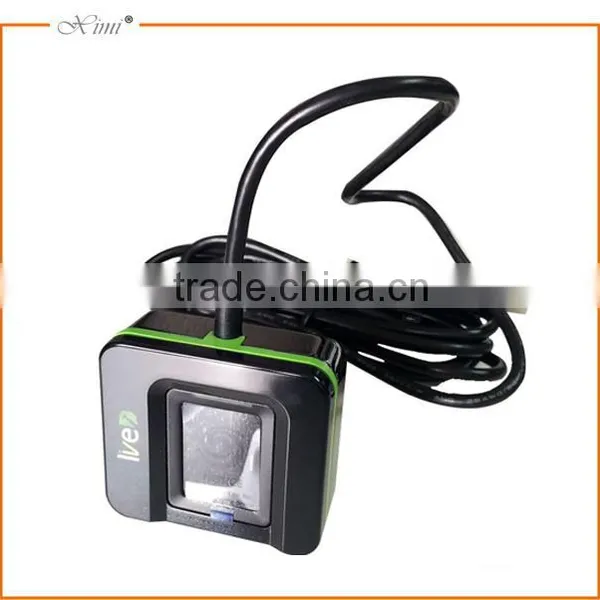

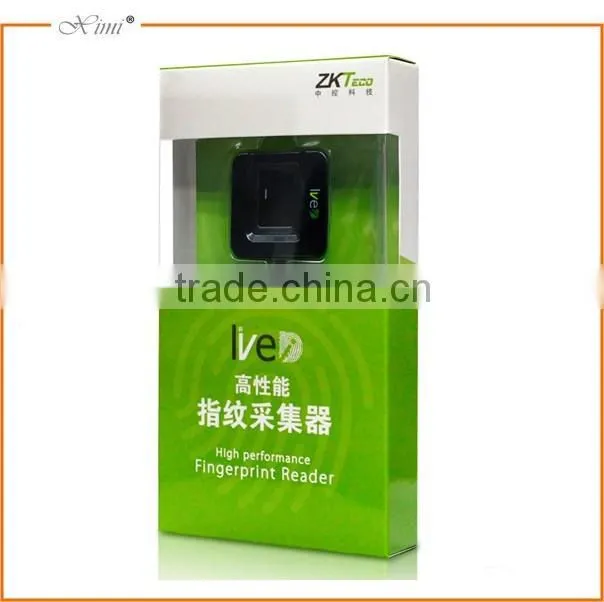

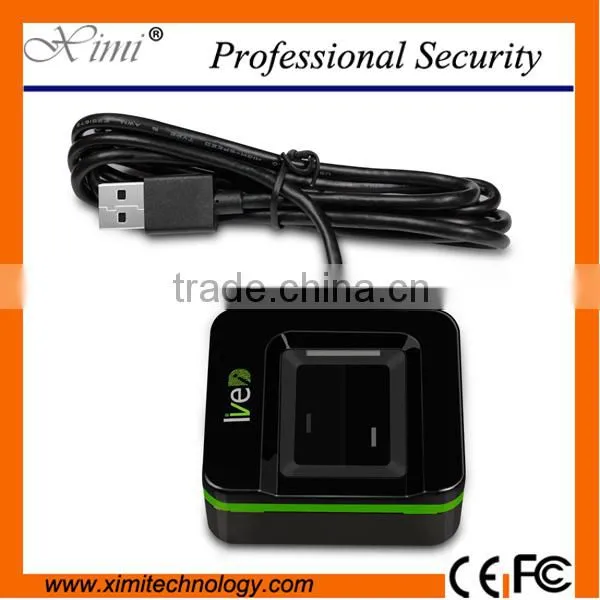

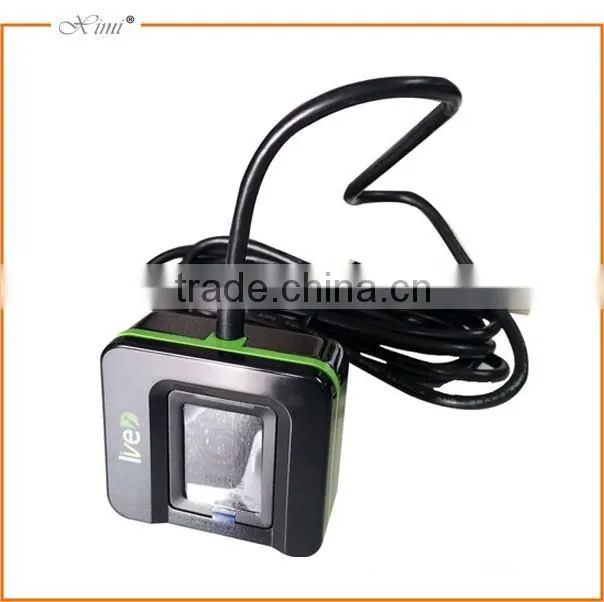

ZK Optical Sensor With Streng Fingerprint Reader 20R Fingerprint USB Reader Fingerprint USB Scanner Can Refuse Fake Fingerprint
US$ 30 - 48
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
XIMI
Model Number:
20R
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZK Ilve 500DPI Fingerprint Reader 20R Fingerprint USB Reader Fingerprint Scanner Support Free SDK for Secondary DevelopmentUS$ 30 - 48MOQ: 10 Pieces -
SMS, Webserver XM228 Fingerprint Time Attendance With Card Reader Fingerprint Recognition Machine TCP/IP Time ClockUS$ 110 - 130MOQ: 10 Pieces
-
3 Inch Touch Screen Fingerprint and ID Card Time Attendance XM228 Fingerprint Time Recording TCP/IP RS232/485 CommunicationUS$ 110 - 130MOQ: 10 Pieces
-
Biometric Fingerprint Recognition Time Attendance XM228 Fingerprint Time Recorder Optional ID Card Reader, IC Card ReaderUS$ 110 - 130MOQ: 10 Pieces
-
3''TFT High-definition Graphical Interface XM228 Fingerprint Time Attendance System Time Clock TCP/IP Fingerprint Time RecordingUS$ 110 - 130MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
XIMI
Model Number
20R
20R fingerprint is the latest instrument is more compact a fingerprint device, surface of the hard steel material, appearance is extremely elegant, the output images up to 500dpi, is a superior performance compared to the fingerprint input device, you can a wide range of applications in social security, public security, attendance, fingerprint encryption, embedded, and many other applications
1, Small size.
2, Excellent image qualit.
3, Encrypted image data.
4, Refused to subtle fingerprints.
5, Refused to fake the image.
6, Support the fingerprint rotation.
7, Rough fingerprint processing.
8, Support dry, wet, or rough fingerprin.
9, Driver support 10,Support free SDK for secondary development, support for language: CB, VB, VC, Delphi, PB8, VBdemo, VFP
2, Excellent image qualit.
3, Encrypted image data.
4, Refused to subtle fingerprints.
5, Refused to fake the image.
6, Support the fingerprint rotation.
7, Rough fingerprint processing.
8, Support dry, wet, or rough fingerprin.
9, Driver support 10,Support free SDK for secondary development, support for language: CB, VB, VC, Delphi, PB8, VBdemo, VFP
· Fingerprint sensor: ZK Optical Sensor with strengthen film
· Resolution: 500DPI/256 grayscale(8-bit)
· Scan size: 15.24*20.32mm(FAP20)
· Image size: 300*400
· Interface: USB1.1, compatible with USB1.0,1.1,2.0
· Registration speed: <0.5 sec
. Registration angle: 360°C
· Operating Temperature: -20°C - 50° C
· Operating Humidity: 0-90%
· Operating System: WINDOWS7/8/10/XP/VISTA(32/64BIT) linux(32/64bit)/android/IOS
· USB cable length: 180 CM
· Dimension (L*W*H): 124.5mm*102mm*34mm
· Power Supply: 5.0V +/- 0.25V ( USB interface power)
· Current : Capture fingerprint: max 250 mA
· Idle mode : max 25 mA
· Suspend mode : <0.5 mA
· Size:49*49*18mm(L*W*H)
