Home > Security & Protection > Access Control System > Access Control Card Reader > Waterproof Smart Card Reader Wiegand26 ID Card Reader ic Card Reader Writer

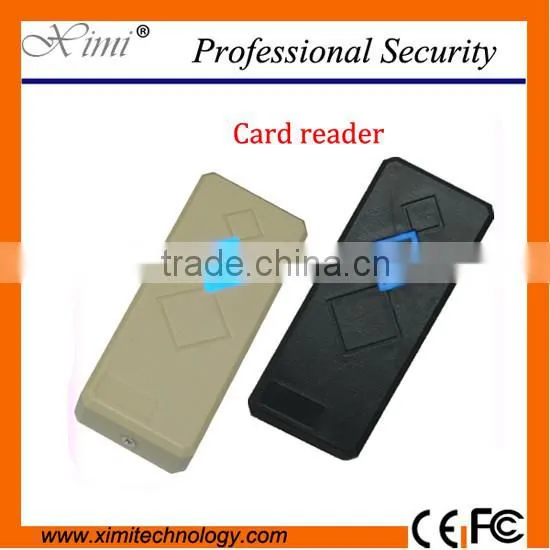

Waterproof Smart Card Reader Wiegand26 ID Card Reader ic Card Reader Writer
US$ 6 - 15
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
XIMI
Model Number:
N80
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Smart Card Reader for Access Control System Wiegand26 IC Card Reader Wiegand34 Rs485 Optional Card Reader IP65 WaterproofUS$ 6 - 15MOQ: 10 Pieces -
125KHZ RFID Card Reader Small Waterproof Good Quality Biometric Access Control Card Reader N80US$ 6 - 15MOQ: 10 Pieces
-
Proximity Card Access Control Card Reader Waterproof Red and Blue LED Right Wiegand Card ReaderUS$ 10 - 15MOQ: 10 Pieces
-
Smart Card Reader 125KHZ Rfid Reader Chip Card Reader Writer Wiegand26/34 Memory Card ReaderUS$ 10 - 15MOQ: 10 Pieces
-
Zk Access Control Card Reader Wiegand26/34 Smart Card Proximity Card ReaderUS$ 10 - 15MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
XIMI
Model Number
N80
Metal shielding and reader interference resistance ability.
Stable performance and advanced anti freezing circuit design, anti surge protection, prevent to misconnect.
Using pure digital rf base station chip imports, error free design.
Intelligent sound and light control mode (blue light instructions give you brand-new visual effect).
Buzzer sound is ringing loud and clear, not interference modulation.
Long transmission distance, up to 100 meters.
Card reader with resin sealant was imported from Japan, sealed type, is suitable for indoor and outdoor use.
The connection mode of international standard. (at the same time support WG26 and WG34, just put the line and ground sub WG26/34 switching can be realized, and convenient and applicable.)
Conform to the national standard GB/T17626.4 / IEC61000-4-4 standard electrical transient bursts of immunity test (4000 v, 5 KHZ supreme test parameters).
Connection mode
BEEP line (yellow) : low level buzzer sirens
Leds (blue) : the low level green light
Cable: D0 (green), D1 (white) output standard Wiegand26bit/Wiegand34bit data
The power cord input the positive black ground wire (red) : 9-16 VDC suggest 12 VDC
Work mode Weigand26
Read card speed < 0.2 seconds
Clock interval < 0.5 seconds
Induction distance 5-15 cm
Read the card type ID card
Frequency of 125 KHZ/card reader
Working temperature 25"C to 75"C
Working humidity 10% to 90%
Built-in antenna has a
Built-in LED red (blue) green double color LED
Built-in speaker buzzer
Support card ID card
Working voltage DC9-16 v
Working current < 60 ma
Weigand26 communication way
Communication distance d heptyl 100 meters, 1200 meters RS485 format, RS232 format 10 meters, 10 meters ABA format
Transmission way Real-time transmission
Device color Yellow/black/white/champagne/dark gray
Shell material of PVC and plastic spraying - > internal can be black resin adhesive (compliance with UL certification of environmental protection completely sealed, epoxy resin can effectively waterproof.)
