960P 1.3MP IP Camera CCTV Nework POE NVR kits Video Security Surveillance System 4Ch POE NVR Recorder IP Camera
Features of 4Ch POE NVR System:
- Power over Ethernet HD IP NVR Kit to simplify the installation;Plug and Play Technology
- H.264 Compression;High definition recording/playback in 1280x960P resolution
- Multiple video recording modes includes full time, schedule, motion detection, alarm event.
- HDMI / VGA simultaneous video output
- Supports 1x SATA HDD up to 4TB, 2x USB 2.0 ports
- Mouse operation, USB for video backup
- Aptina progressive scan CMOS image sensor to capture sharp images
- IEEE802.3af Power-over-Ethernet (PoE), 14Watt max/12V operation
- Onvif conformance to support third-party IP equipment and software
- Compact size bullet design with IP66 weatherproof housing
- Equipped with 3.6mm wide angle lens
- Equipped with 36pcs infrared LED illuminators with 30 meters Day and Night Vision.
- 3-axis bracket design for wall/ceiling mounted installation
- Remotely view through PC browsers, VMS software, smartphone or tablet
Specifications of 4Ch POE NVR System:
| Model No. | CS-NK01 | ||
| Camera | 1.3MP POE Bullet IP Camera | ||
| NVR System | 4CH 960P NVR POE | ||
| Camera | Effective Pixels | 1.3 Mega Pixels | |
| Main stream:1280*960 | |||
| Sub stream:704*576 | |||
| Frames Rates | PAL:25fps(1280*960) | ||
| NTSC:30fps(1280*960) | |||
| Image Sensor | 1/3" Aptina AR0130 CMOS Sensor | ||
| 1.3 megapixel resolution (1280*800) | |||
| DSP | Dual core 32-bit DSP | ||
| Hi3518C | |||
| Min. Illumination | Color 0.01Lux @ F1.2,B/W 0.001 Lux @ F1.2 | ||
| Compression | H.264 Main profile | ||
| NVR | Recording | 4x960P (1280x960P) | |
| Recording Mode | Manual> Alarm> Motion detection> Schedule | ||
| Video save | HDD. Network | ||
| Audio | 1CH RCA Input/1CH RCA Output | ||
| Video inquiry | Point-in-time retrieval, calendar search, event search, channel search | ||
| Backup mode | Network backup, USB mobile HDD, USB Burner, DVD-RAW burning | ||
| Video output | 1CH VGA,1CH HDMI (1920*1080P) | ||
| Network interface | RJ45 10M/100M/1000M | ||
| HDD | 1 SATA HDD (Max.4TB) | ||
| PTZ control | 1 RS485 PTZ control interface | ||
| USB interface | 2*USB interface | ||
| Power supply | DC48V POE Stardard power supply | ||
| Size | 390(W)x30(L)x100(H)mm | ||

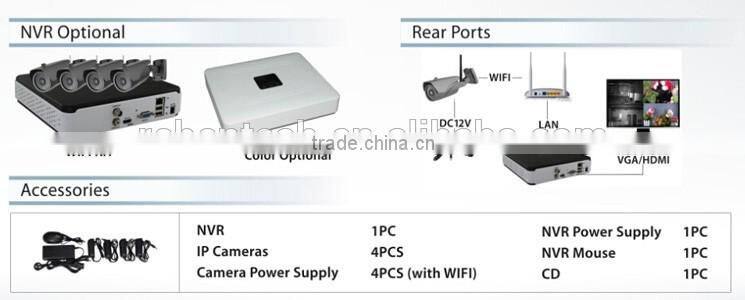

What is in the POE NVR Kits Box:
- 4x 1.3MP Bullet POE IP Camera
- 1x POE NVR
- 1x USB Mouse
- 5x Power Adapter(1 for NVR,4 for IP Camera)
- 4x 20 Meters Ethernet Cable
- 1x CD
- Scrws for Installation
The 1.3 Megapixel IP Security System adopts latest advances in IP camera technology. This NVR kit contains everything you need to monitor/secure your home and business. This video surveillance system includes 4 PoE IP cameras which support plug-and-play installation, it's easy to setup and install, extra power cables and power supply are not required. Connecting the IP camera to PoE NVR, then turn on the power of NVR, the system starts working.
Home and Business IP Surveillance 960P POE NVR Kits:
Offering you high definition monitoring with latest IP technology. Transmitting the video stream through network which allow you to broadcast video in anywhere. Comes with PoE technology which uses single Ethernet cable for video transmission and power supply, greatly reduce the need for additional cabling and power supply. IP cameras are capable of capturing megapixel resolution images to provide you detailed crisp images.
4 x 1.3 Megapixel Outdoor Bullet IP Cameras with POE:
The camera adopts 1.3MP progressive scan CMOS image sensor to provide you stunning and high definition, real time video footage. Comes with built-in IR-CUT filter to support true day/night monitoring. The camera's IP66 rated weatherproof housing makes it ideal for both indoor and outdoor surveillance applications. The included 3-Axis bracket allows user to get ideal installation angle, fully support wall and ceiling mounted installation.
1 Set 4 Channel 960P POE Network Video Recordor:
The included 4 channel network video recorder has capability to record/playback 4 channel video streaming in 1280x960 resolution at real time (25/30fps). It supports multiply recording modes, and giving your 24/7 monitoring. The NVR comes with four separate Ethernet PoE ports, built-in network switch for plug-and-play installation
Remote Access and Live View:
Rehentech Company focus on this field for sevral years.We mainly provide plug and play Indoor/outdoor IP Camera,wireless ip camera, 4 Channel 960P POE NVR Kits ,surveillance camera kits and distribute wireless network consumer products.
All of our staff members continue to provide our customers with high quality and perfect OEM/ODM manufacturing service as always.
We provide good services to make try our best make our customer 100% satifactory and Strive for "Win-Win"!
All our IP Camera products provide "Two Year Warranty"
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
1. Payment: T/T, PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 1pcs
3. Warranty : 2 years
