4Ch POE NVR Kit 4 1080P P2P IR Dome IP Camera Home Surveillance Monitor System
Features of 4Ch POE NVR Kit :

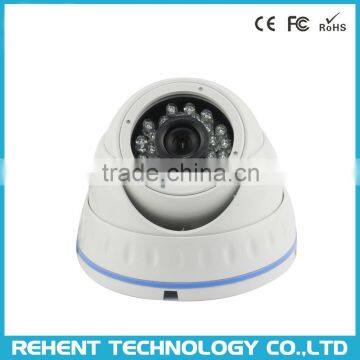

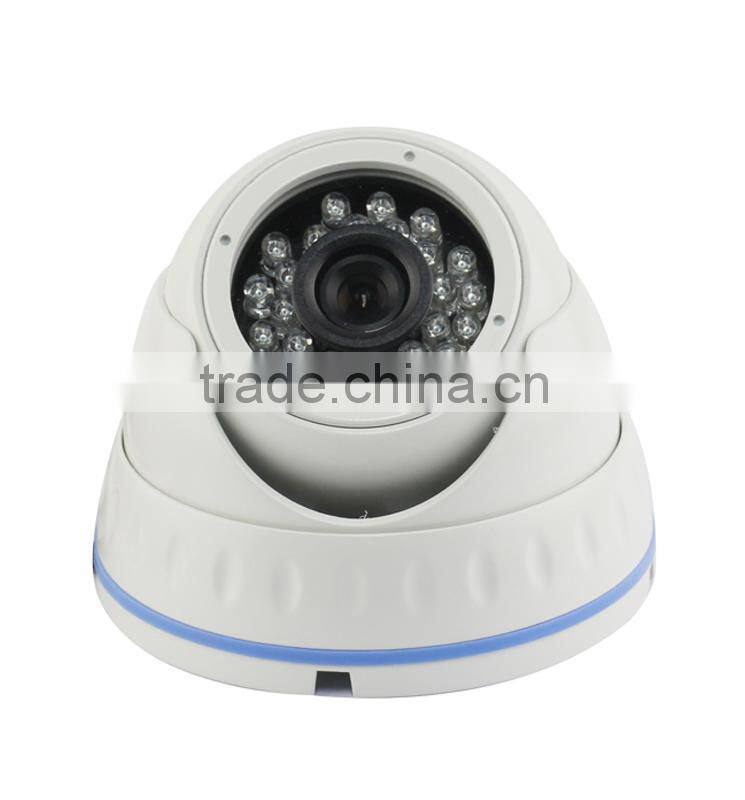

- 1/2.8" SONY 2.4MP High-resolution CMOS Sensor | H.264 |3MP HD Lens | With IR-CUT
- Ambarella A5S66, Low-stream, WDR
- Main Stream: 1080P/960P/720P@30fps | Motion Detection,Email Alarm
- IP Camera Input: 4CH (1920×1080, 1280×960, 1280×720, etc)
- Video Output: 1CH VGA Output, 1CH HDMI Output
- Recording Resolution: 4CH*1080P/4CH×960P/4CH×720P, etc (All Real Time)
- Preview Resolution: 4CHxD1 /1CHx1080P
- Playback Resolution: 1CHx1080P
- Hexaplex Operation Simultaneously: Preview, Recording, Playback, Live, Backup
- 1 RJ-45 Ethernet Connector, Static IP , P2P, Support IE and Special CMS
- 1 SATA Hard Disk Interface (2.5"/3.5" SATA, Up to 4TB), Backup: 2xUSB2.0
- Support Remote View by Smart Phone, With POE
- Power Adaptor: DC15V/6A
Specifications of the IP Camera,Pls check this link:

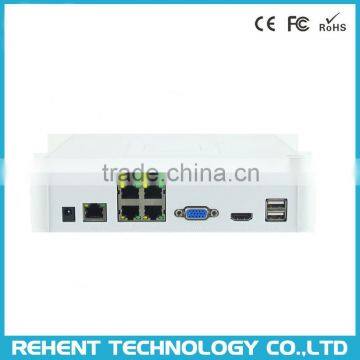

Specification of the 4Ch POE NVR:
| Model | CS-2004PD 4Ch POE NVR Kit | ||

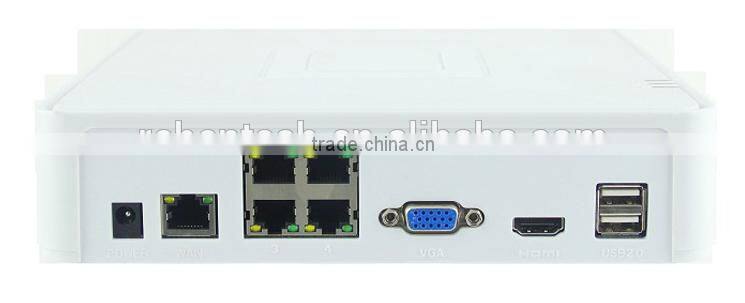

| Hardware | External Interface | RJ45 Interface | 1xRJ- 45 10 / 100 Mbps Ethernet Cable |
| 4x POE 10/100 Mbps Internet | |||
| SATA Interface | 1xSATA Interface,Max up to 4TB | ||
| VGA | 1xVGA,Support 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz | ||
| HDMI | 1XHDMI,Support1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz | ||
| USB2.0 | 2xUSB2.0 | ||
| Power Interface | 1x2.0V | ||
| System Features | System Info | Main Processor | HI3520D |
| Compression | H.264 | ||
| OS | Embedded LINUX | ||
| Language | Support 19 Languages | ||
| Priview Picture | 1/4 Picture | ||
| Operation | Hexaplex Operation Simultaneously: Preview, Recording, Playback, Live, Backup | ||
| Resolution | 1080P /960P /720P etc. | ||
| Record Playback | Record Model | Manual recording, motion recording, timer recording, alarm recording | |
| Video Loop | Support the drive cycle cover video | ||
| Video Queries | According time,channel,type to check | ||
| Play Back Model | Variety of slow-speed, a variety of fast forward speed, Manual single-frame playback, rewind, mode | ||
| Play Back | Single Channel | ||
| Back Up | Back Up Model | Support External USB | |
| Via Internet | |||
| Network Function | Network Control | Remote real-time preview camera pictures | |
| Remote set NVR Patameters | |||
| Support Customized software | |||
| Support Abouve IE8 Version | |||
| Support Static IP,DHCP | |||
| Support Remote View:iphone,android phone,ipad | |||
| Support DDNS,Including ORAY/NO-IP/DYNDNS | |||
| Support P2P Function | |||
| Alarm Function | Motion Detection | Detection sensitivity settings: area could be set up multi-level sensitivity; you can record video | |
| Upgrade Software | Local Update | Via USB to upgrade the software | |
| Remote Update | Via IE or Remote software to upgrage | ||
| Enviromental | Normal Parameter | Power | DC 15V 6000MA |
| Envirenment | -10℃~+55℃ | ||
| Humidity | 10%~90% | ||
Advantage of this 4Ch NVR POE Kit:
A) Small,Simple but with full function IPC Kits.

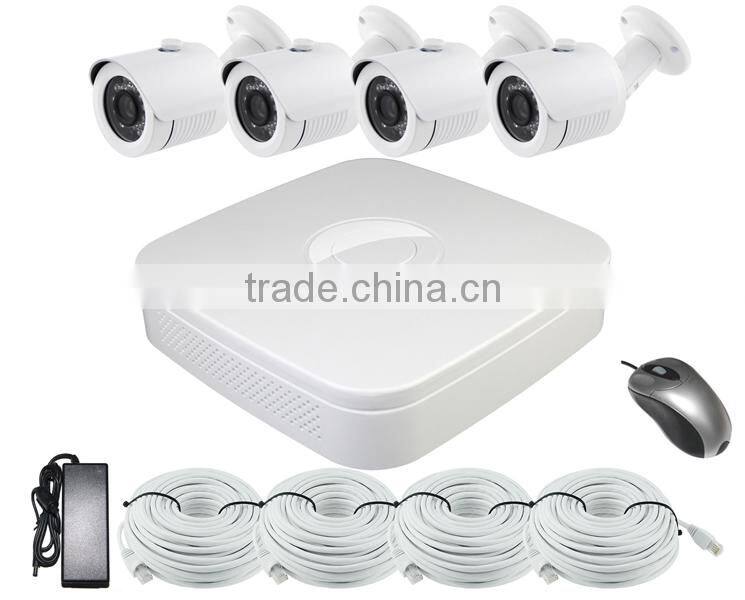

A set of 4ch NVR kits include all the accessories you are needed, (power supply, 4*20m cable etc.), you can apply to a project very conveniently.Best POE NVR Kits for Small office,restaurant,houses and other small project.

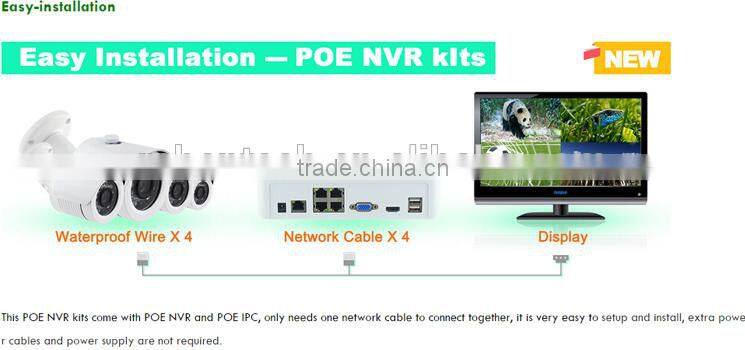

B) Very convenient to install.
The NVR have four connector, which can connect 4pcs IP Camera directly without additional power supply. In the whole set. One power supply DC15V6A for the NVR is enough.
C) More Economic Price:
You can save 4*20m network cable's fees if buy a full set.
Rehentech Company focus on this field for sevral years.We mainly provide plug and play Indoor/outdoor IP Camera,wireless ip camera,4Ch POE NVR Kit,surveillance camera kits and distribute wireless network consumer products.
All of our staff members continue to provide our customers with high quality,perfect OEM/ODM manufacturing service as always.
We provide good services to make try our best make our customer 100% satifactory and Strive for "Win-Win"!
All our IP Camera products provide "Two Year Warranty"
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
1. Payment: T/T, PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 1pcs
3. Warranty : 2 years
