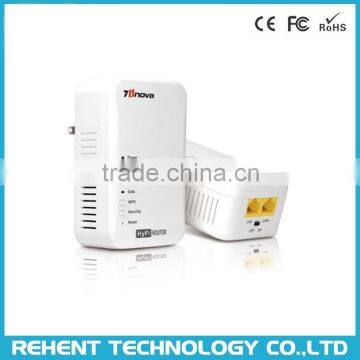

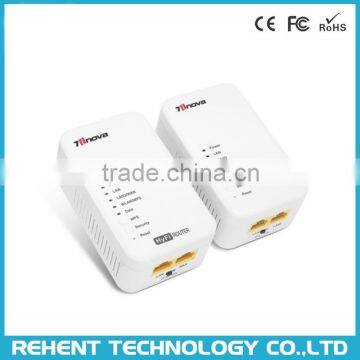

Smart Homeplug AV 500Mbps HyFi Powerline Ethernet Adapter Wireless Starter Kit 2016 New Product
Introduction:

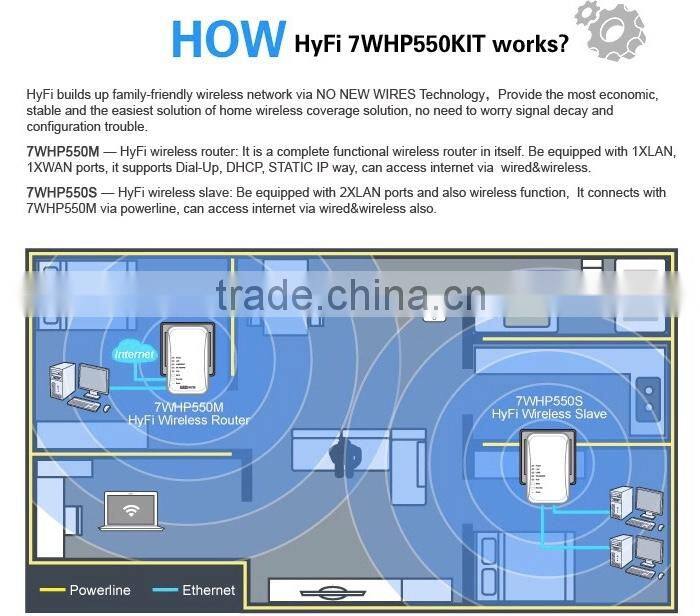

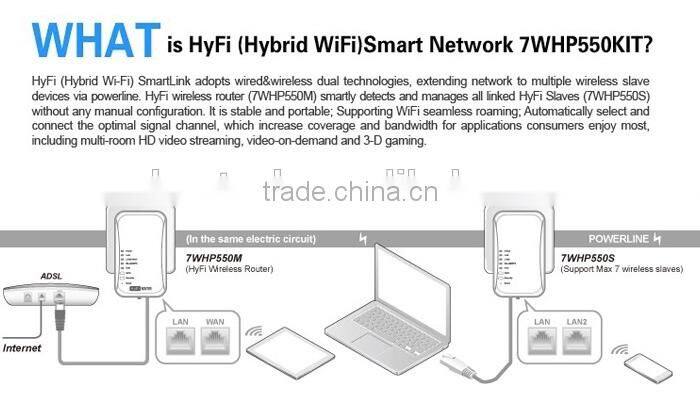

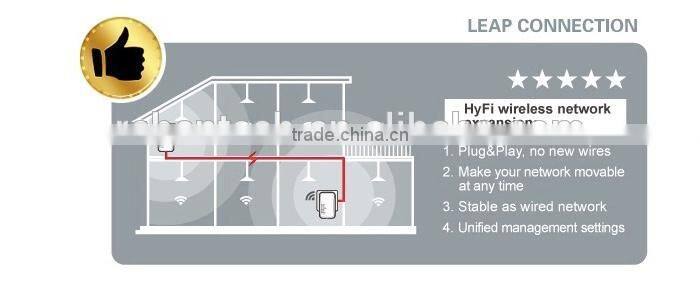

Rehentech(7inova)Powerline Wireless Adapter 7WHP550 Kit takes advantage of your home’s existing
powerline into a high-speed WiFi network. No additional wires required, no configuration required, user
cansimply plug the power line adapters into existing power sockets and establish networking

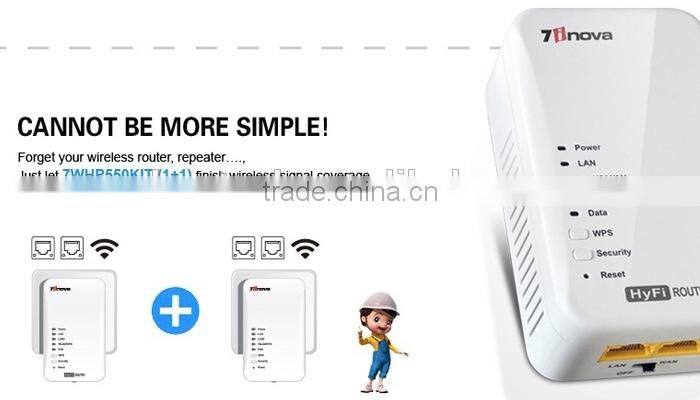

infrastructure in an ash. Just connect the 7WHP550Kit to PC by Ethernet cable, and plug it into the power
outlet. you can enjoy your Ethernet Wireless life.

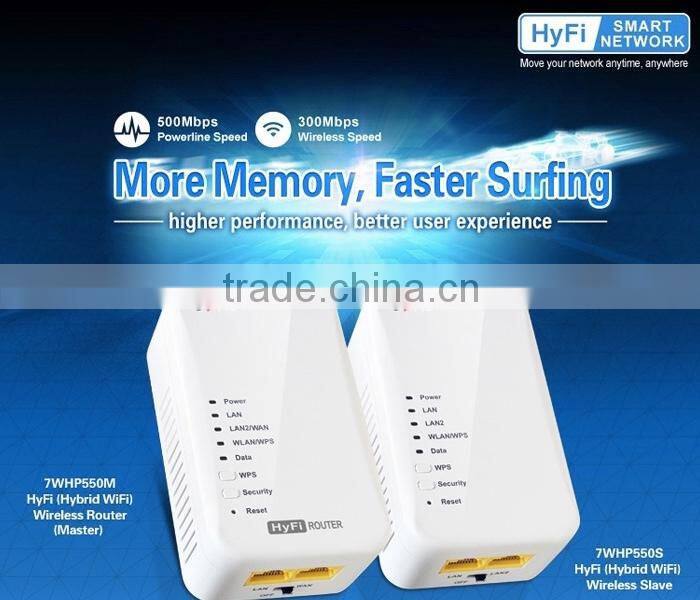

7WHP550Kit provides you with stable high speeds of up to 500Mbps, 300Mbps WiFi far beyond normal
11g wireless speeds, you can now use data, voice, online gaming, and HD Video streaming simultaneously.
Features of HyFi Powerline Kit:
- EuP (Power saving mode) support,reduces power consumption by up to 65%

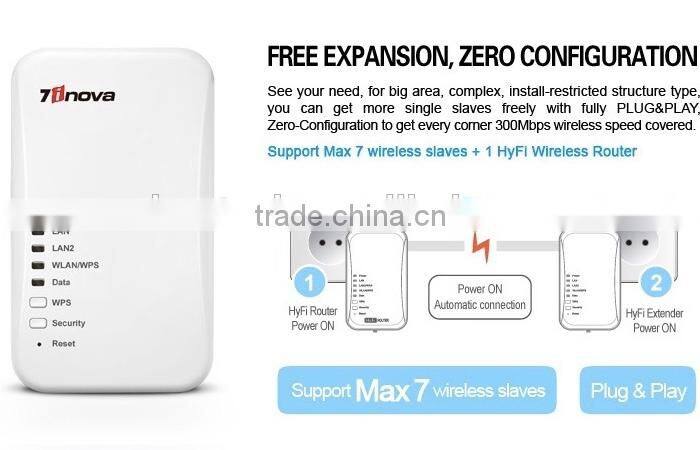

- Easy Plug and Play operation, No configuration required.Plug and Play Technology.
- Wide power range, AC 100-240V, 50/60Hz,ensures that it can be used nearly all over the world
- 500Mbps Powerline link rate and 300Mbps across wireless(802.11n) transfer speed, perfect for HD IPTV streaming.
- Data transfer range up to 200meter over powerline and 300meter via wireless.

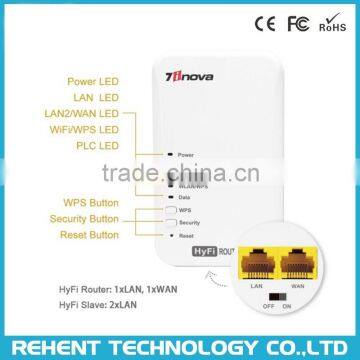

- Instant indication of PLC network bandwidth through LED
- Built-in QoS assures the quality of bandwidth sensitive applications
- Built-in 128-bit AES encryption assures data security
Specifications of Wireless Homeplug Powerline:
| HomePlug AV Wirless Powerline Specifications | ||||
| Model | CS-7WHP550 Kit 500M Homeplug Powerline Wireless Adapter | |||
| Ethernet | IEEE 802.3 10/100 Auto MDI/MDIX | |||
| Wireless | IEEE 802.11b/g/n | |||
| Energy Saving | EuP Compliance | |||
| Protocol |
Powerline : CSMA/CA over powerline in your home Wireless: CSMA/CA,EDCA |
|||
| MODULATION TECHNOLOGY |
PowerLine: 4096/1024/256/64/16/8-QAM,QPSK,BPSK and ROBO Wireless: 11b: CCK, DQPSK, DBPSK 11g: 64 QAM, 16 QAM, QPSK, BPSK 11n: 64 QAM, 16 QAM, QPSK, BPSK |
|||
| DATA TRANSFER RATE |
Powerline: Up to 500Mbps Wireless: Up to 300Mbps |
|||
| TRANSMISSION RANGE |
Powerline: Up to 200meter Wireless Up to 300meter |
|||
| FREQUENCY BAND |
Powerline:2Mhz to 30Mhz Wireless: 2.4GHz~2.484GHz |
|||
| SECURITY & PROTECTION |
Powerline: 128-bit AES encryption (enabled with Simple Connect button) Wireless: WEP, WPA, WPA2,WPS encryption |
|||
| POWER REQUIREMENT | AC 100 ~240V, 50~60Hz | |||
| POWER CONSUMPTION | 6.5Watt | |||
| OPERATING SYSTEM |
WIN8 32/64bit, Windows 2000, Windows XP 32/64bit Vista 32/64bit, WIN 732/64bit, Linux and MAC OS |
|||
| ENVIRONMENT REQUIREMENT |
Operating Temperature: 0° to 40° C Non-Operating Temperature: -25° to 70° C Operating Humidity:10%~90%, Non-condensing Non-Operating Humidity: 5%~90%, Non-condensing |
|||
| ACCESSORIES |
1 x AV500 + 300Mbps Wireless Powerline 1 x Ethernet cable 1 x User Manual |
|||
Rehentech Company focus on this field for sevral years.We mainly provide plug and play hd indoor outoodr wifi ip camera,
Full HD WiFi IP Camera,PIR IP Camera and also WiFi Network Consumer Electronics Products to provide whole solution for
you home security and Enjoy Convenienct Life Anytime Anywhere!
All of our staff members continue to provide our customers with high quality and perfect OEM/ODM manufacturing service as always.
We provide good services to make try our best make our customer 100% satifactory and Strive for "Win-Win"!
All our IP Camera products provide "Two Year Warranty"
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
1. Payment: T/T, PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 10pcs
3. Warranty : 2 years
