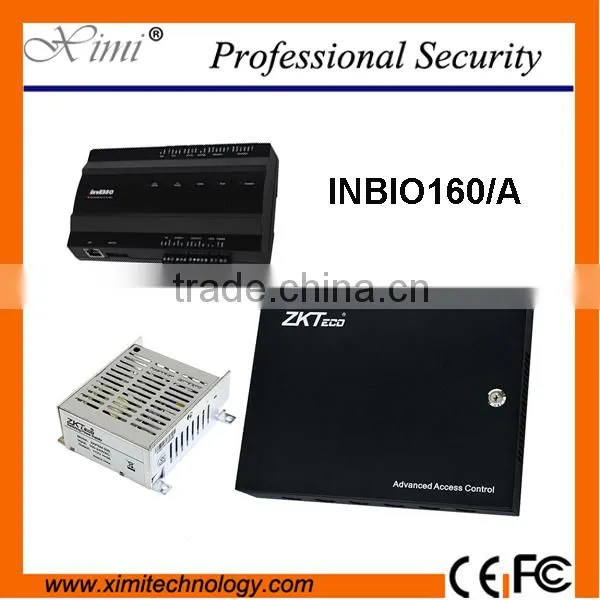

Help CenterInbio160 Packag A With Power Supply Box 1 Door Fingerprint and Card Access Controller Wiegand Connector Access Control Panel
Related Products
-
Free SDK 40000 Card User TCP/IP Single Door Design for Biometric Access Control Systen Door Control Panel Board LP01US$ 23 - 35MOQ: 10 Pieces -
Inbio460 Package A Access Controller With Power Supply Metal Box Fingerprint Access Control Board for 4 Doors Control System Supplier's ChoiceUS$ 140 - 200MOQ: 10 Pieces
-
Inbio460 Package B Access Controller With Power Supply Box and Battery Function for 4 Doors Fingerprint Access Control PanelUS$ 180 - 200MOQ: 10 Pieces
-
40000 Card User TCP/IP Free Software Free SDK Single for Biometric Door Lock Door Control Panel LP01US$ 23 - 35MOQ: 10 Pieces
-
4 Doors One Sides Rfid Access Control Board Panel C3-400 Wiegand Reader Access Control Linux Access Control BoardUS$ 65 - 70MOQ: 10 Pieces

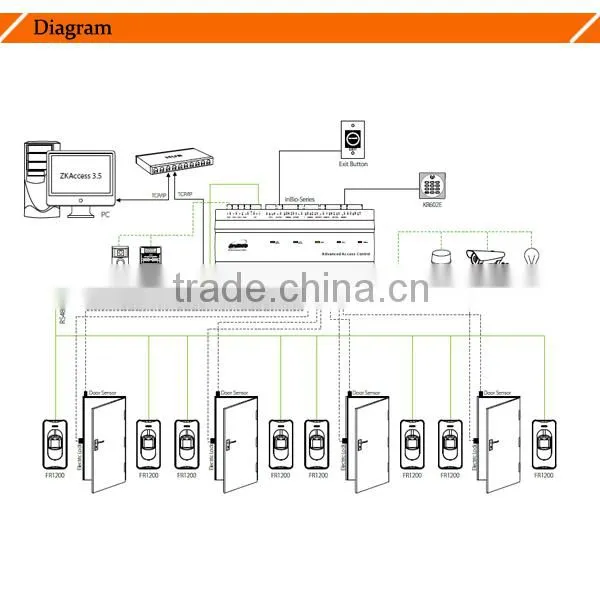

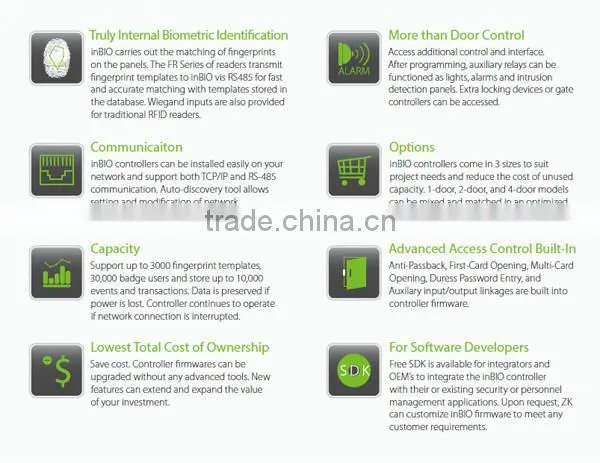

inBIO serious a new concept access controller based on biometric identification aims to improve the security of users’ life and information, it means that visitors need to place fingerprints on reader and the data collected is transferred to controller to verify. inBIO serious is specially designed for applications like home, offices and enterprises, users may choose from serial communication or Ethernet to get linked to software for central management, meanwhile, the distance between controller and RS485 readers could be more than 800m. inBIO serious is very convenient and safe for users to connect other security products for its groove socket, even quietly brilliant to see its working status through LED indicators on surface. Web-based management helps know about the local events on e-map and video remotely in real time control. We believe it will bring a big revolution of access control market in the world.
Model |
inBIO160 |
CPU |
32bit MIPS CPU |
RAM |
32M bits |
Flash Memory |
128M bits |
Fingerprint Capacity |
3000 |
Card Capacity |
30,000 |
Event Buffer |
100,000 |
SD card backup |
Support |
Power / Current |
DC 9.6V-14.4V, Rated Max.1A |
Wiegand Reader Port |
2ea (26bit Wiegand, 8bit Burst for PIN) |
RS485 Reader Port |
1ea Extended RS485 Port |
Communication |
RS485, TCP/IP |
Baud Rate |
38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable) |
Input Port |
2ea (Exit Button#1, Door Sensor#1; ) |
Output Port |
1ea (1FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC) |
1ea (1 Aux FORM-C Relay Output, SPDT 2A@30VDC) | |
LED Indicator |
Yes, LED indication for communication, power, status and punch card |
Operating Temperature |
0°to +55°C |
Operating Humidity |
10% to 80% relative humidity non-condensing |
Dimension (H*W*D)mm |
226*106*36(Single board) 400*330*90.5(with power supply and metal cabinet) |
Housing Material |
PVC |
Software |
ZKAccess5.0 |
