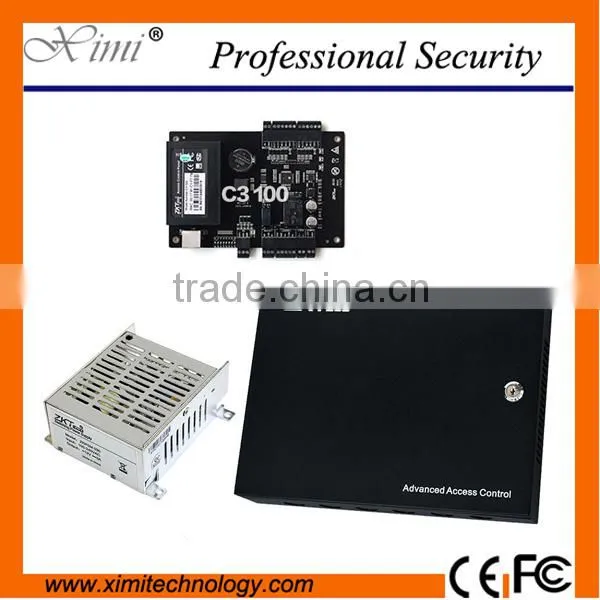

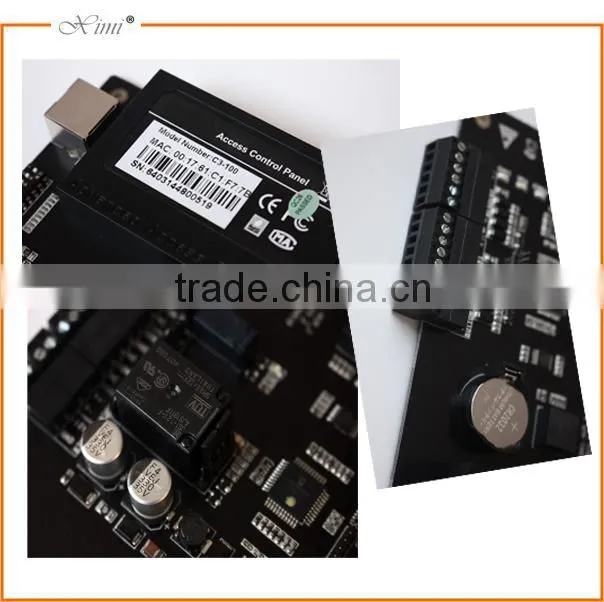

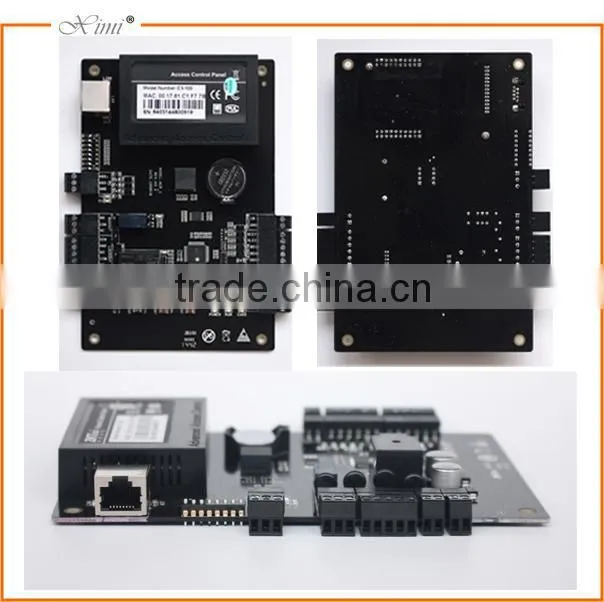

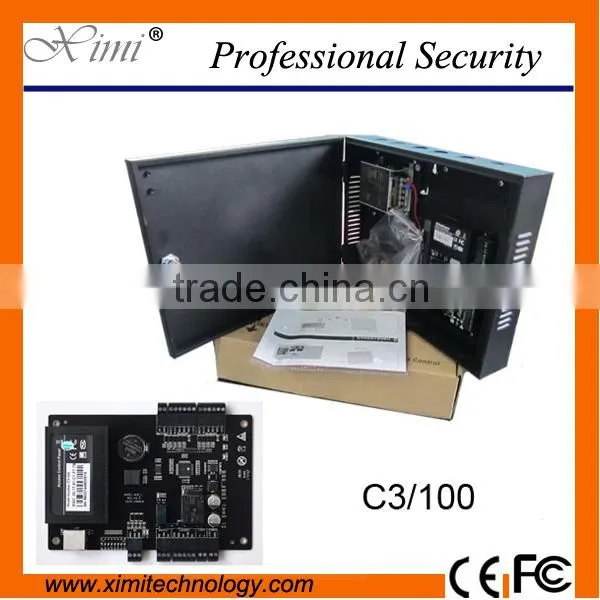

Help CenterC3-100 Package B Card Access Controller With Power Supply Metal Box and Battery Function 1 Door Wiegand Access Control Board Supplier's Choice
Related Products
-
C3-100 Package A 1 Door Access Control Panel Door Access Controller Wiegand Access Control Board With Power Supply Metal Box Supplier's ChoiceUS$ 40 - 50MOQ: 10 Pieces -
Inbio260 Package B Access Controller With Power Supply Metal Box and Battery Function Fingerprint and Card Access Control PanelUS$ 40 - 175MOQ: 10 Pieces
-
Inbio260 Package A Access Control Panel Fingerprint & Card Access Control Board TCP/IP Access Controlller With Power Supply Box Supplier's ChoiUS$ 40 - 165MOQ: 10 Pieces
-
TCP/IP RS485 Network for Biometric Access Controller 3000 User Fingerprint Control PanelUS$ 113 - 125MOQ: 10 Pieces
-
40000 Users Four Push Button Interface Tcp/ip Communication Interlocking for Door Lock Card Control Panel Access Control PaneUS$ 48 - 60MOQ: 10 Pieces
C3 serious Systems are built on flexible, open technology to provide management, real-time monitoring , and control of your access control system—all from a browser, with no additional software to install. Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. C3 serious versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features. The C3 serious can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.
1, Multiple hardware protection measure
There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
2, Integration with Other Security Systems
C3 serious can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.
3, Supports different wiegand reader
The controller support different wiegand format, and can connect to different reader, including ID card reader and Mifare card reader
4, Input/Output Ports to Control Doors
Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
5, Variety of Communication Function
Using either serial or TCP/IP communication, it provides reliable network system
6, B/S structure software
It is easy to manage the system by browser from client PC. There is no need to install software on each client.
7, Normal open after first punch card can be setup
8, Real-time Monitoring of Door status
Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
9, Simple Access Control System Configuration
10,Interlock function
Link different doors with special logic that one door is Open, others should be closed.
11,Multi-card operation
This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together.
12,Anti-Passback
13,Duress Mode
14,SDK available
The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.
Model |
C3-100 |
CPU |
32bit MIPS CPU |
RAM |
32M bits |
Flash Memory |
256M bits |
User |
30,000 |
Event Buffer |
100,000 |
Power / Current |
DC 9.6V-14.4V, Rated Max.1A |
Reader Port |
2ea (26bit Wiegand, 8bit Burst for PIN) |
Communication |
RS485, TCP/IP |
Baud Rate |
38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable) |
Input Port |
2ea (Exit Button#1, Door Sensor#1) |
|
Output Port
|
1ea (1 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC) 1ea (1 Aux FORM-C Relay Output, SPDT 2A@30VDC) |
LED Indicator |
Yes, LED indication for communication, power, status and punch card |
Operating Temperature |
0°to +55°C |
Operating Humidity |
10% to 80% relative humidity non-condensing |
Dimension (L*W)mm |
160(W)*106(H)(single board ) 345(W)*275(H)*70(D)(with power supply and metal box) |
Certification |
CE, FCC |
