Specifications
1. Full-automatic control system2. Good performance
3. Security can be ensure

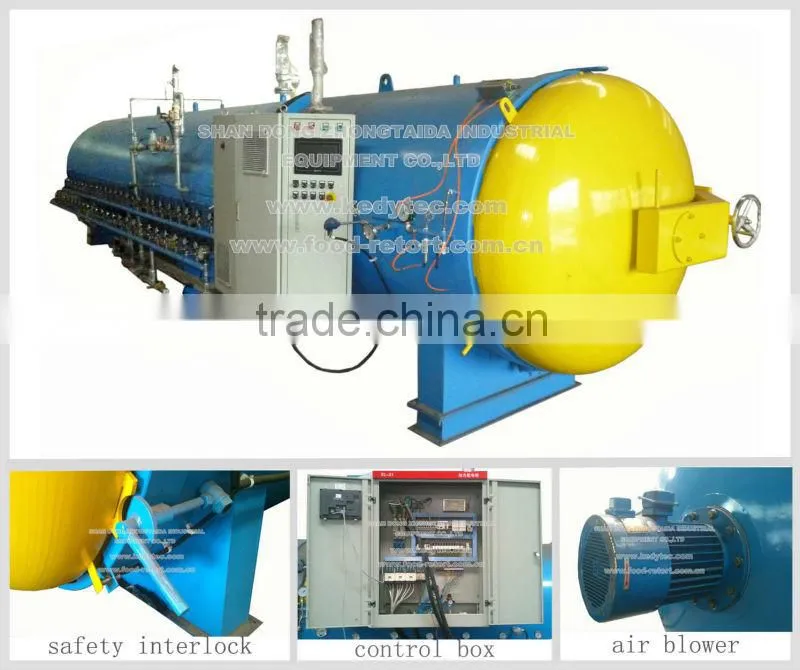

vulcanizing rubber cement machine
Features
1. Low energy consumption and low cost
2. Evenly heat distributed, vulcanizing effect is uniform
3. Vulcanizing time and working temperature can be pre-setted.
4. Using high quality thermal insulation material,which can protect workers and avoid the waste of energy .
5. High temperature silicone seal is used by the vessel door, good sealing.
Application
Raw Rubber and Products , such as rubber shoes,rubber tube. composite material, electric wire
Descriptions in detail

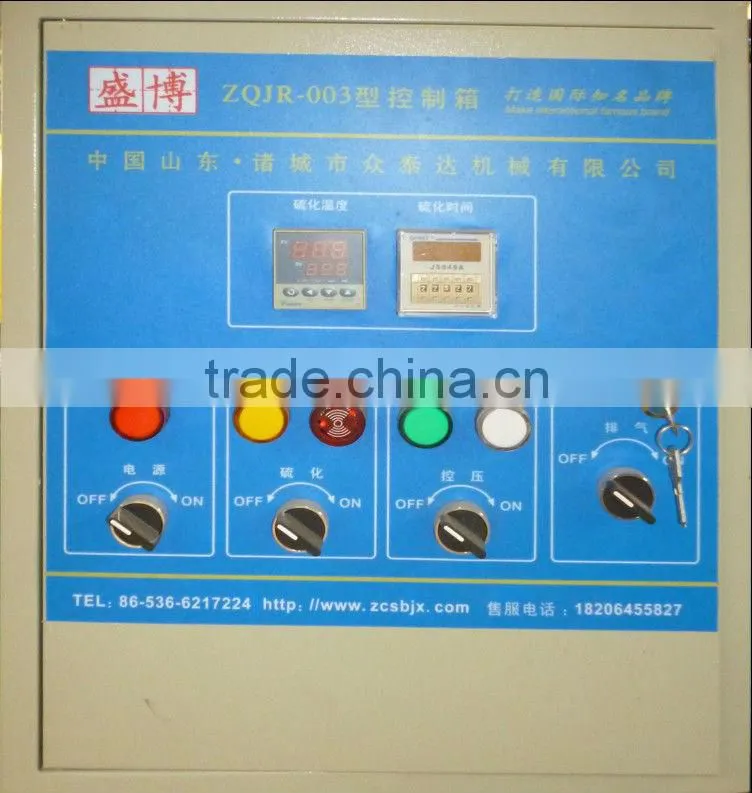

control system
1.The automatic control system and semi-automatic control system are adopt by vulcanization machine, which can designed according to different customs’ needs.
2.PLC control system can save more than 200 different processing technic, controlling the temperature, pressure and time accurately, so that achieve the desired effect.
3.Autoclave can be equipped with a printer to print the temperature-time curve and pressure-time curve, the vulcanizing process can be more audio-visual and controllable.

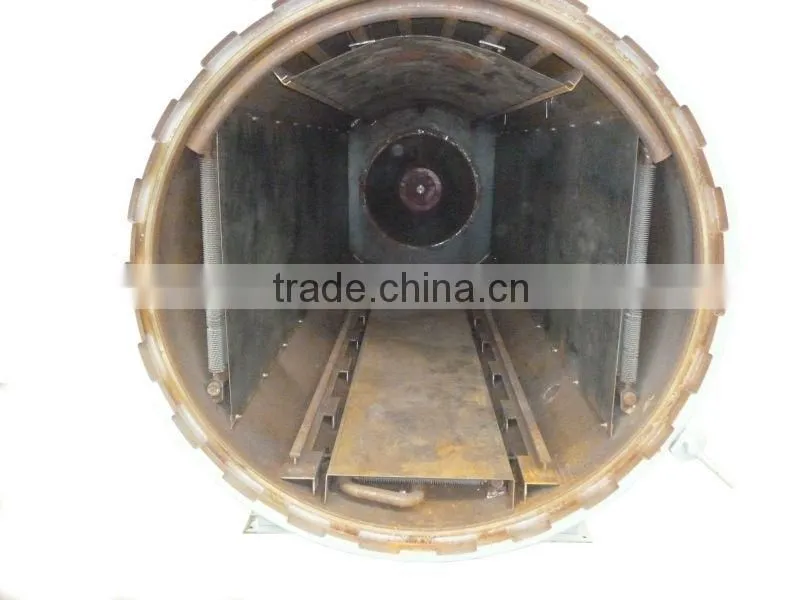

air blower
1. Equipped with blower and windshield, making air blowing products indirectly, so as to the tank is easy to clean up.
2. There is no dirty to pollute the rubber product which is processing, ensure the quality of the appearance of the product
3. Hot air evenly heating products at the same time, it is conducive to improve the quality of vulcanization
Technical parameters
MOLD |
CONTROL |
DIA (mm) |
LEN (mm) |
MDM |
PRE (Mpa) |
TEM (°C) |
|
DN1504B.3 |
Automatic |
1500 |
4,000 |
Air |
0.73~3.00
|
120~310 |
|
DN0206B.3 |
2000 |
6,000 |
120~310 |
||||
DN0304B.3 |
3000 |
4,000 |
120~310 |
||||
DN0410B.3 |
4000 |
10,000 |
120~310 |
||||
DN0509B.3 |
5000 |
9,000 |
120~310 |
||||
DN0610B.3 |
6000 |
10,000 |
120`310 |
||||
|
1. TYPE: Electic heating , steam curing , circulation oil 2. MEDIUM : air, water ,steaming, circulation oil 3. CONTROL MANNERS : Manual ,semi-automatic and fully automatic 4. Diameter, length ,design pressure and temperature done under customers requirements . | |||||||
