Automatic Vial /ampoule Packing Production Line
US$ 1,000 - 10,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Bottles, Cans, Capsule, Cartons, Film, Pouch, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Medicine Packaging Production LineUS$ 1 - 100,000MOQ: 1 Unit -
Medicine Packing Production LineUS$ 1,000 - 100,000MOQ: 1 Unit
-
Blister Packing Production LineUS$ 1,000 - 100,000MOQ: 1 Set
-
Fully Automatic Medicine Packaging Production LineUS$ 1 - 100,000MOQ: 1 Set
-
Packaging Production LineUS$ 1 - 100,000MOQ: 1 Unit
Condition
New
Application
Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type
Bottles, Cans, Capsule, Cartons, Film, Pouch, Stand-up Pouch
Packaging Material
Other, wooden
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V
Power
50HZ
Place of Origin
Zhejiang, China
Brand Name
HOPING, HOPING
Model Number
PBZ-260S, PBZ-260S
Weight
2900KG
Dimension(L*W*H)
7170*1200*1700
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas

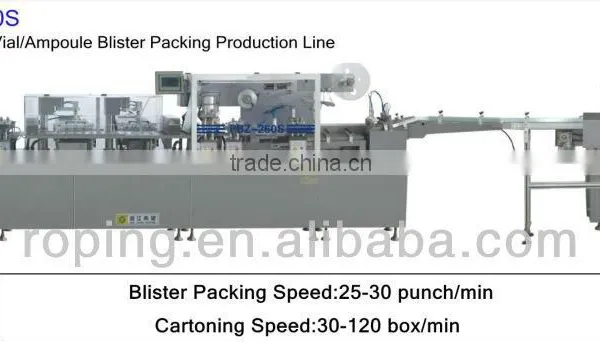

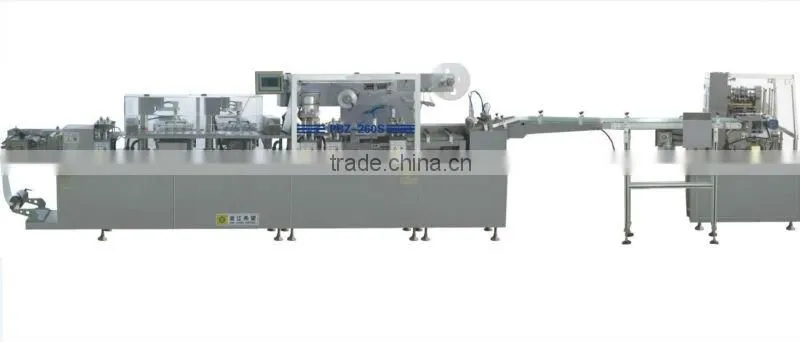

Automatic vial packing Production line
Specfication:

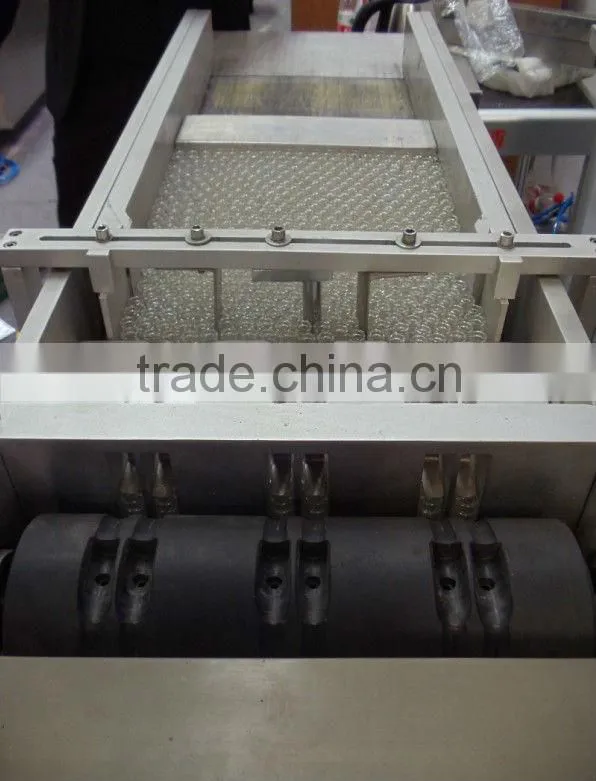

1,The line machine integrating blister ,vial/ampoule feeding together.
2, Detection, rejection and cartoning packing into an organic whole.
3,With compact structure, simple operation and PLC touch screen adopted.
4,Change parts can special designed by customer's requirement.

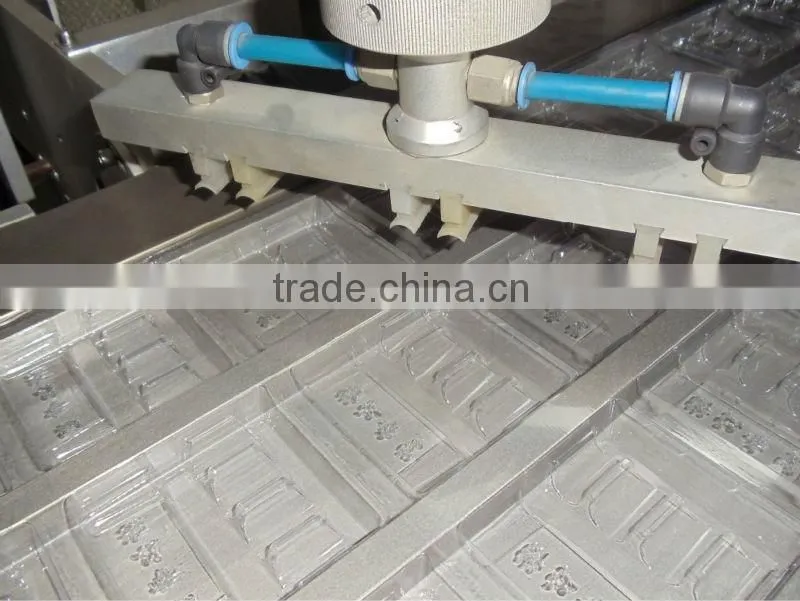

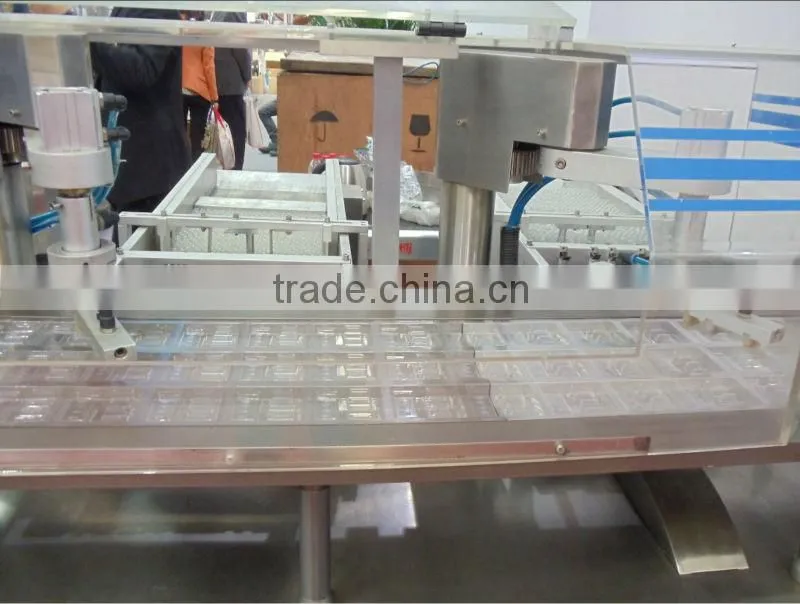

Ⅰ Vial/Ampoule Blister Packing Machine
Main Technical Parameter
| Capacity | 25-30 punch/min |
| Range of stroke(mm) | 40-120 |
|
Packing Material Pharmacy PVC(mm) PTP alu foil(mm) |
(0.2-0.4)*260 |
| (0.02-0.05)*260 | |
| Clean compressed air(pressure) | 0.5-0.7Mpa |
| Air consumption(m³/min) | ≥0.4 |
| Power | AC380V 50HZ 9KW |
| Water chiller for moulds | recyle water with 60L/h consumption |
| Overall dimensions(mm) | 4420*710*1700 |
| Net Weight(kg) | 1700 |

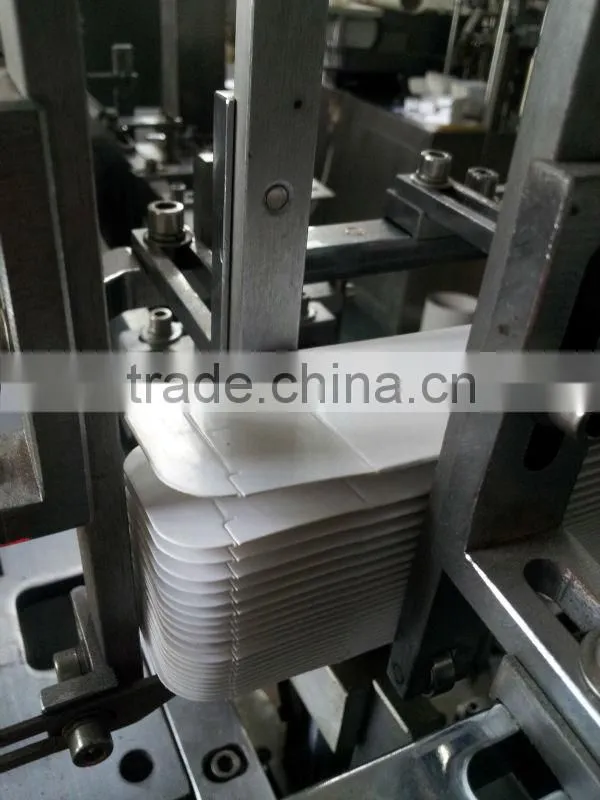

Ⅱ Cartoning Machine
Main Technical Parameter:
| Capacity(box/min) | 30-120 |
| Box dimension (mm) | (70-125)*(35-85)*(15*65) |
Leaflet dimension(mm) |
(80-260)*(80-180) |
| Clean compressed air(pressure) | 0.5-0.7Mpa |
| Air consumption(m³/min) | ≥0.3 |
| Power | AC220V 60HZ 1KW |
| Overall dimensions(mm) | 1750*1200*1700 |
| Net Weight(kg) | 1200 |
Packaging & Delivery
- Packaging details:exporting standard wooden case, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.
- Within 45 days after receipt of 30% payment by T/T.
Payment
- T/T
- L/C
- West Union
