Specifications
1) Medicine Packaging Production Line2)DPH-260H blister packing machine
3)XWZ-200 cartoning machine
4)Siemens PLC System

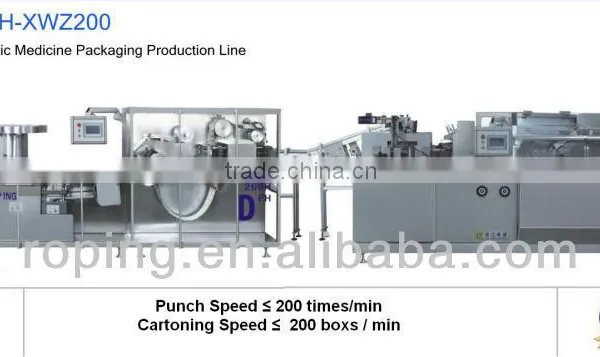

Fully Automatic Medicine Packing Production Line
***DPH-260H Blister Packing Machine+XWZ 200 Cartoning Machine
Ⅰ DPH-260H Blister Packing Machine
Specifications:
1) Suitable for packing tablet, capsule ,etc.
2) Max Punching speed :200times/min
3)High-end configuration
4)CE Certification
Main Technical Parameter:
| Capacity(punch/time) | 60-200 |
| Range of stroke (mm) | 20-120 |
| Clean compressed air | 0.5-0.7Mpa |
| Air consumption(m³/min) | ≥0.5 |
| Power | AC380V 50HZ 15.5KW |
| Water chiller for moulds | 1.5P with 60L/h consumption |
| Dimension(L-W*H)(mm) | 4860*1070*1750 |
| Net weight (kg) | 3000 |
Ⅱ XWZ 200 Cartoning Machine
According to the latest demand of the market, scientific research technicians of our company designed and
developed the line machine, which is specially for al/pl blister,pillow bag and packing into cartons.
Main Technical Parameter:
| Capacity(box/min) | 60-200 |
| Box dimension(mm) | (70-200)*(35-70)*(15-70) |
| Power | AC380V 50HZ 5KW |
| L*W*H(mm) | 4070*1680*1680 |
| Weight(kg) | 3000 |
Packaging & Delivery
- Packaging details:exporting standard wooden case, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.
- Within 45 days after receipt of 30% payment by T/T.
Payment
- T/T
- L/C
- West Union
