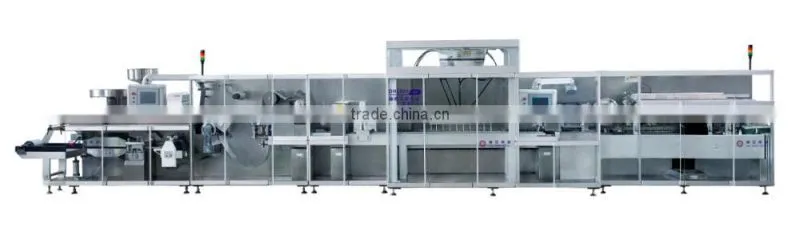

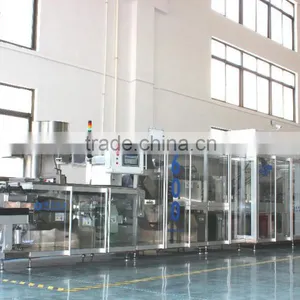

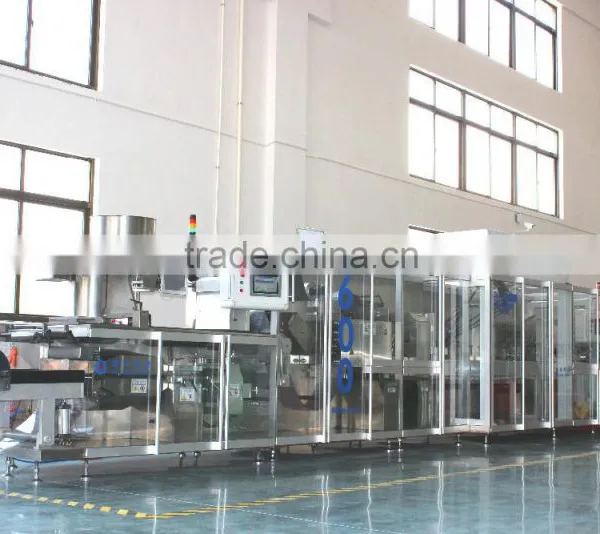

The production capacity of DHL600 High-Speed Blister-Cartoning Link Machine can reach 600 blisters/min and 300 boxes/min, suitable for mass production. The whole production line with the concept of advanced technology , original create link machine (1-5) blister cartoning production new pattern, can complete switchover (1-5) blister cartoning within one minute, high speed transferred by intelligent flex picker, complete blister cartoning; Leaflet folder can accomplish 300 pages/min (A4 paper); Human
-Machine Interface can be industrial control network, remote monitoring, complete data transmission, parameter modification, collection, storage and printing; High-Speed Blister-Cartoning Link Machine adopts the balcony type structure design, the drive device installed in the rear of machine, easy to clean and conform to GMP requirements
Main Technical Parameter
| Capacity |
300-600 blisters/min 100-300 boxes/min |
| Range of stroke | 20-120 mm |
| Packing Material |
Pharmacy PVC(mm) (0.2-0.4)×320 PTP alu foil(mm) (0.02-0.05)×320 |
|
Box dimension (70-190)×(35-75)×(15-70) mm Carboard of box required 300-350 g/m2 Leaflet dimension (100-260)×(100-190) mm | |
| Clean compressed air (pressure) | 0.5~0.7 Mpa |
| Air consumption | ≥0.6 m3/min |
| Power | AC380V 50HZ 27KW |
| Water chiller for moulds | 1.5P with 60L/h consumption |
| Overall dimension (L×W×H) | 11000 ×1800 × 2150 mm |
| Net weight | 9200 kg |

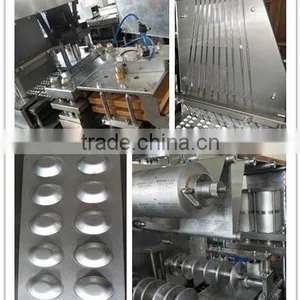

Machine parts

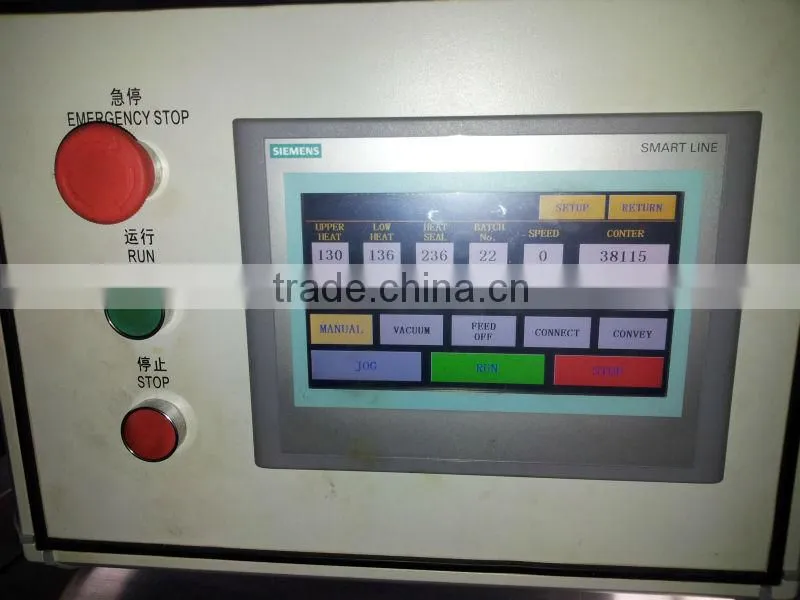

1)Touch Screen-SIEMENS

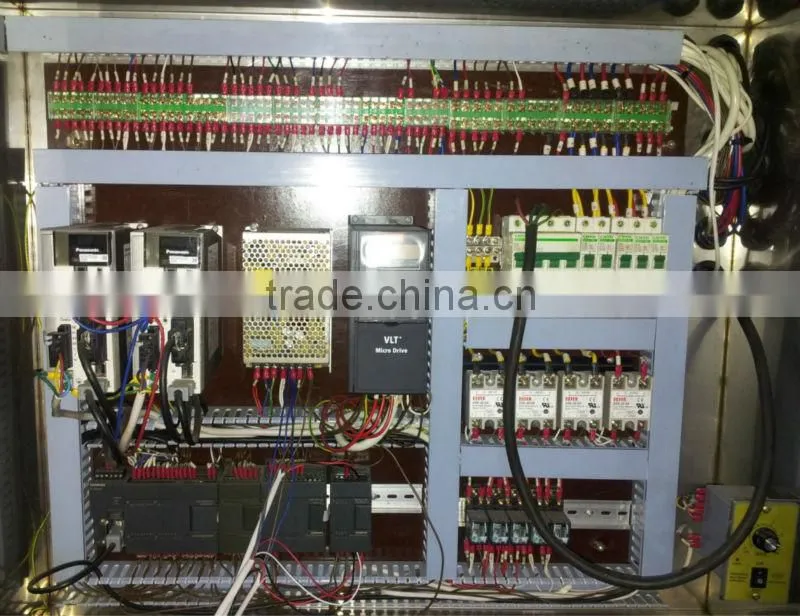

2) Circuit board

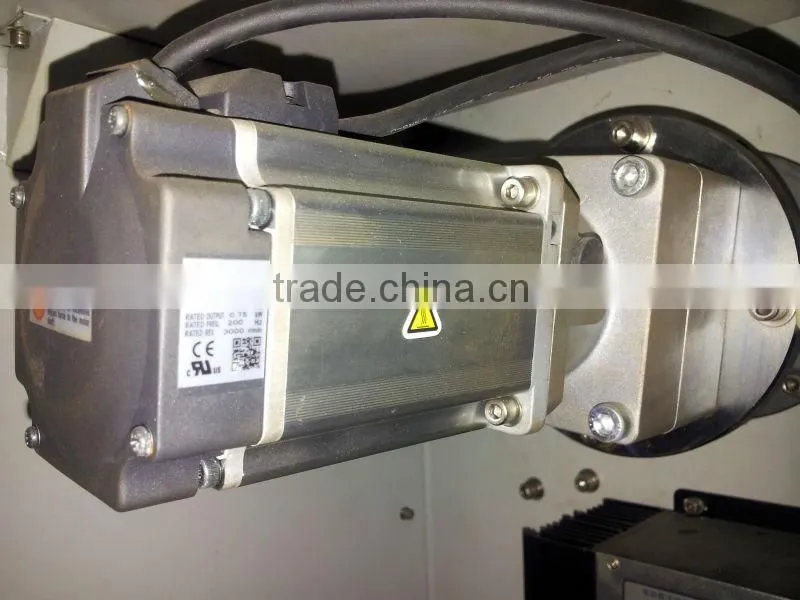

3)Servo motor
4)Others
Moulds /change parts
