Specifications
automatic planetary stirring pot/cooking mixer/jacketed kettle
1. steam, gas, electric conduction oil
2. material: stainless steel 304
3. types: tiltable and vertical
4. with or without agitator 5. automatic tilting the pot and lifting the arm/manually tilting the pot
Gas/Steam Jacketed Kettle with Agitator Large Scale Food Processing Jacketed Kettle
General Introduction:
Our jacketed kettles are made of food grade stainless steel 304 both inside and outside and have smooth and shiny appearance. It can be manually tilted by using a handle on the side making it easier and safer to pour the contents inside the pot.
The jacketed kettle is widely adopted in various food processing industries, such as sugar, sauce, curry, dishes, beverage, liquor, dairy, cake, chemical and medicine, etc., also can be used in large restaurants and canteens for boiling, cooking, frying and stewing large quantities of food.
Features:
This kind of jacketed kettle has the following features:
1. Easy to install and operate;
2. Uniform Heating;
3. Large heating area;
4. Short boiling time;
5. Easy control of heating temperature;
6. Mixing scrapers can touch the bowl thoroughly avoids burning;
7. Stirring speed is adjustable;
8. Corrosion & abrasion resistance;
9. Longer service life;
Classification of Jacketed Kettle:
By heating method:
1. Electric heating type;
2. Steam heating type;
3. Gas(pls indicate LPG or natural gas) heating type
By configuration of the Jacketed Kettle:
1. Tilting type / vertical type;
2. With agitator / without agitator;
3. Ordinary stirring type / planetary stirring type;
4. With lid / without lid;
Technical Parameters:
Model No. |
Capacity (L) |
Heating Area (m2) |
Inner Diameter (mm) |
Depth (mm) |
Width (mm) |
Height (mm) |
Weight (kg) |
JE-50A.2 |
50 |
0.39 |
550 |
400 |
880 |
820 |
80 |
JE-100A.2 |
100 |
0.77 |
710 |
480 |
1000 |
870 |
106 |
JE-200A.2 |
200 |
1.29 |
840 |
530 |
1050 |
915 |
121 |
JE-300A.2 |
300 |
1.34 |
930 |
600 |
1100 |
960 |
139 |
JE-400A.2 |
400 |
1.98 |
1000 |
640 |
1120 |
1050 |
193 |
JE-500A.2 |
500 |
2.3 |
1080 |
680 |
1150 |
1090 |
251 |
JE-600A.2 |
600 |
2.7 |
1200 |
790 |
1280 |
1110 |
274 |

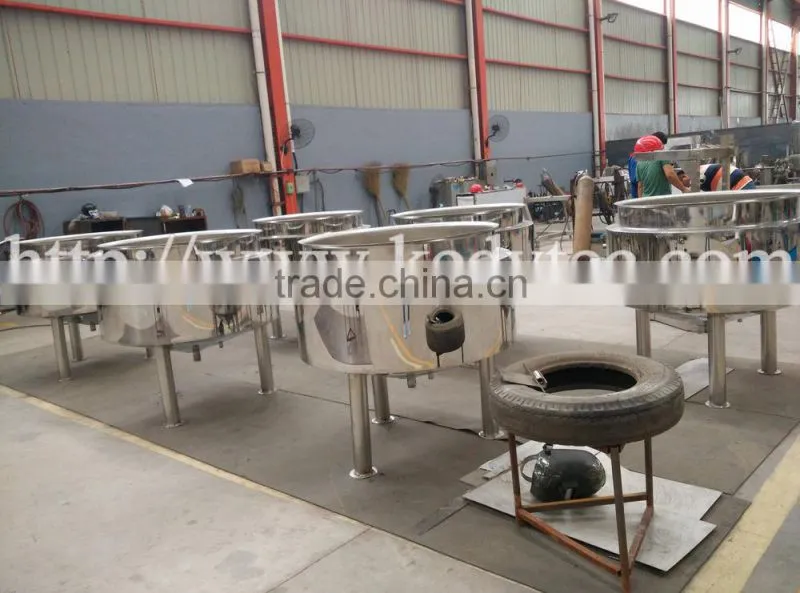

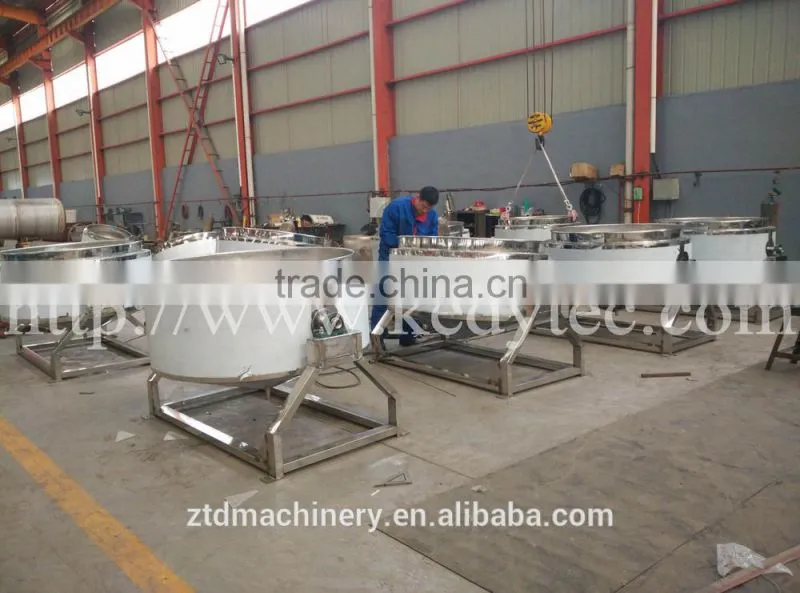

Vertical type without mixer jacketed cooking kettle:

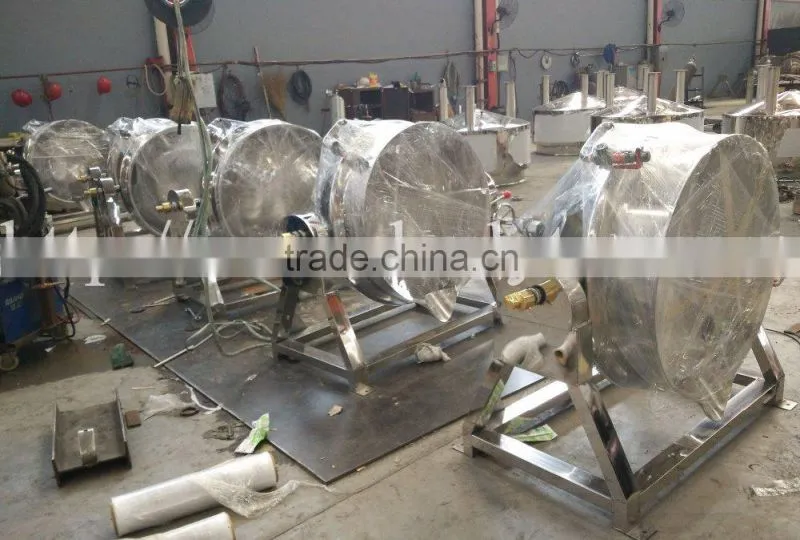

Tilting type and without mixer jacketed cooking kettle:
steam jacketed cooking kettle

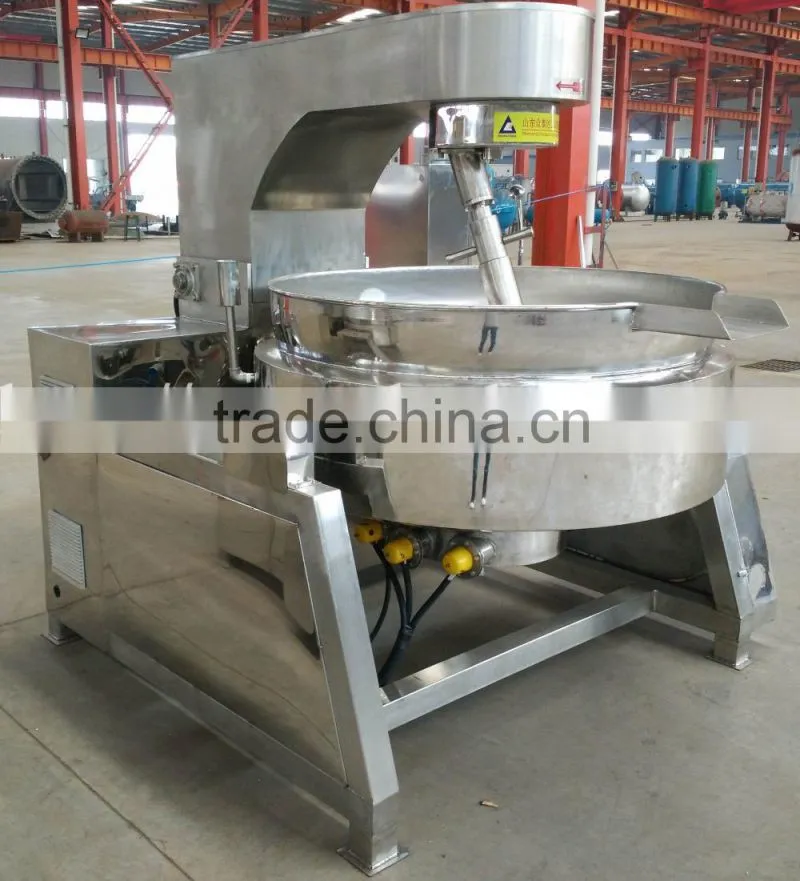

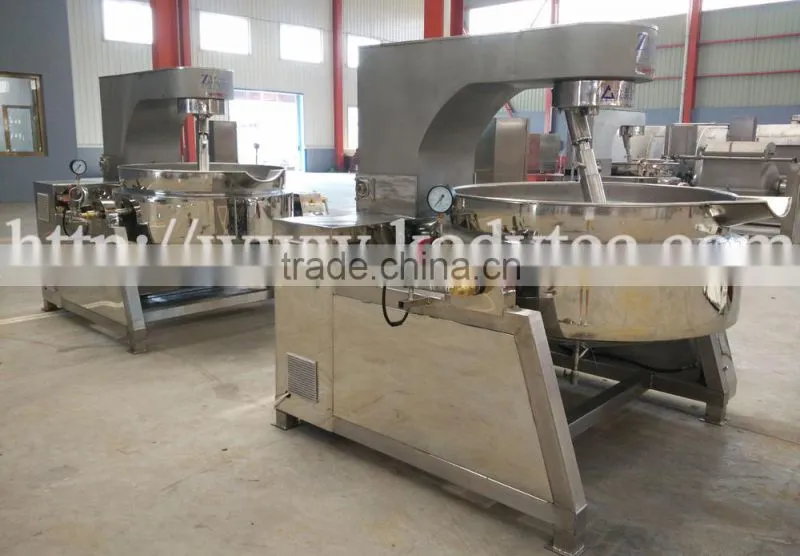

full automatic steam jacketed cooking kettle with planetary agitator

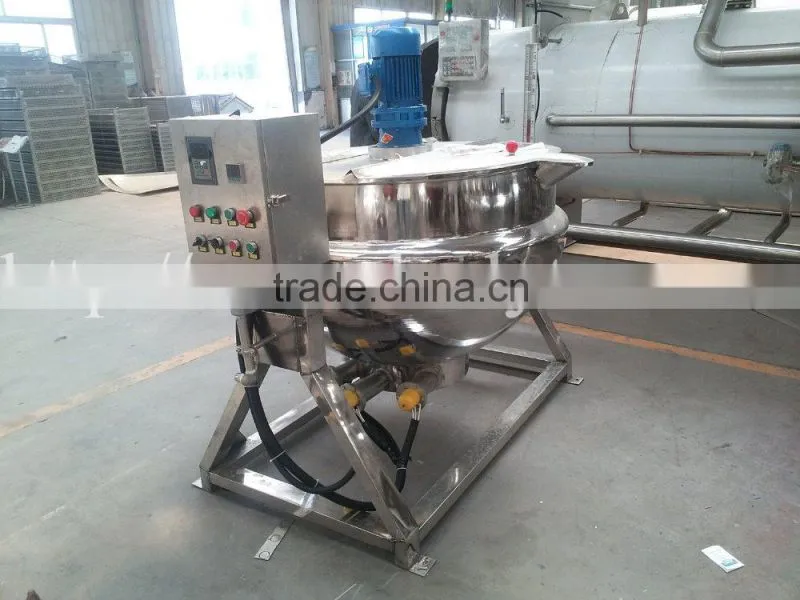

electric heating conduction oil cooking pot with ordinary mixer and cover
full automatic electric conduction oil jacketed jacketed cooking kettle with planetary agitator

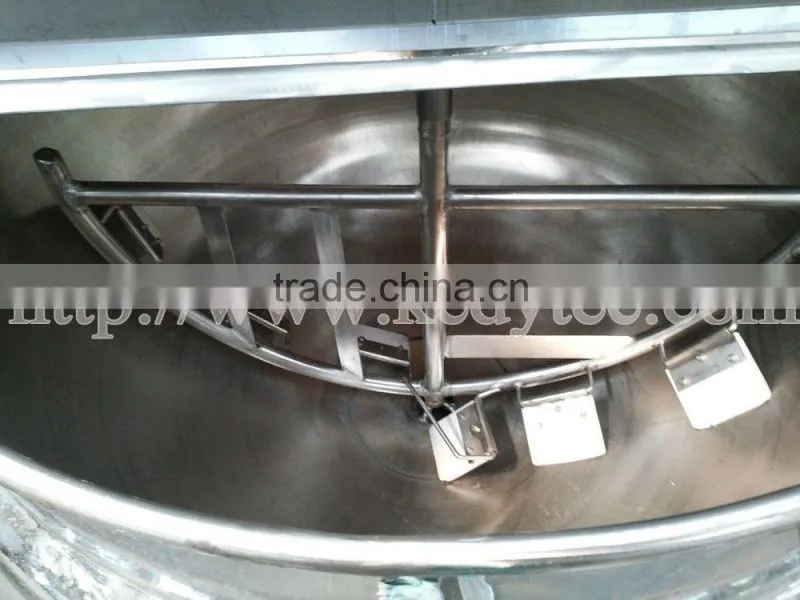

ordinary teflon scraper

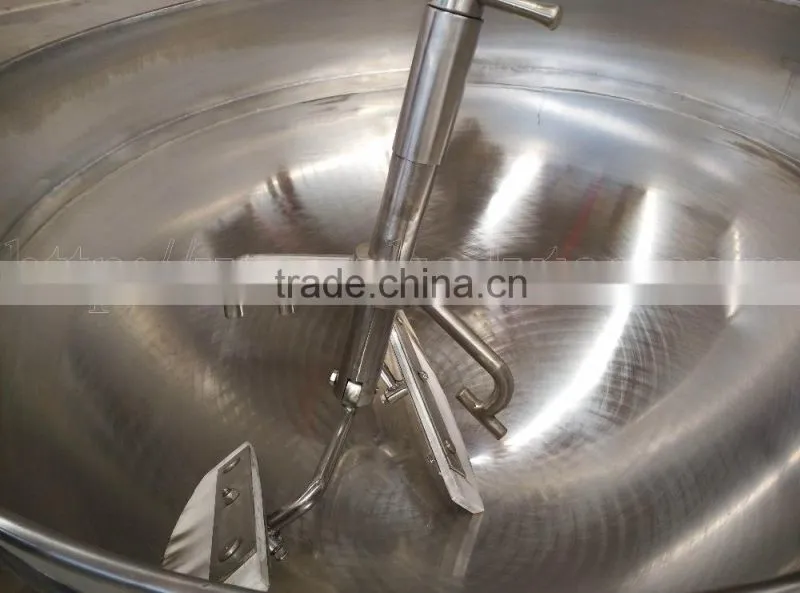

planetary teflon scraper
Test to make chilli sauce by customer before delivery:
If you are interested in our products want to consult us, you can freely call us or send us Email at any time, we will be very glad to serve you. Welcome to visit our factory in Zhucheng City of China.
