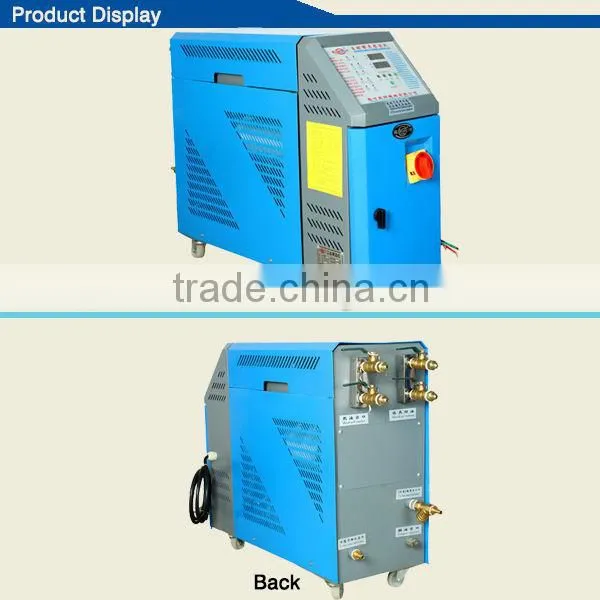

water-type mold temperature controller thermostat 6kw Quality Choice
- 200 Set / Sets per Month
- Guangzhou
- T/T L/C D/P D/A Credit Card
-
Oil Type Hot runner mold temperature controller/Injection molding temperature control system
-
injection machine water-heating high temperature mold temperature controller
-
Oil Type Hot runner mold temperature controller/Injection molding temperature control system
-
Oil Type Mold Temperature Controller
-
Water Type Mould Water Heating Plastic Injection Mold Temperature Controller
-
Water Heating Mold/Mould Temperature Controller MTC for Plastic Injection
Product Details
| Condition: | New | Type: | Water Temperature Machine | Application: | temperature controller |
| Place of Origin: | Guangdong, China | Brand Name: | LongHe | Model Number: | AT-6KW |
| Temperature Range: | 1-98° C | Temperature Control Accuracy: | 0.5° C | Dimension(L*W*H): | 860x300x660mm |
| Weight: | 45kg | Internal Piping Size: | 1cm | Voltage: | 380v |
| Power(W): | 6000w | Certification: | ISO9001 /CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
APPLICATION AND PROPERTIES:
1.Plastic injection mold temperature controller is mainly applied for heating and maintaining the temperature of mould,and is also applicable for fields of same demands.
2.It adopts most advanced microcomputer control principle with precise electronic thermometer for dual temperature control with the precision reaching ±0.5°c.
3.It is adopts oil or water as heat conducting medium,safe and reliable.Two sets of heating wires assure stable temperature in oil tank,save time and power.
4.The product is installed with tank oil,over temperature and water pump overload automatic alarm system,automatically cut off loop for assuring safety.
5.It applies stainless steel tank which features corrosion resistance and long service life.
6.It adoprs microcomputer control and imported digital precise temperature control and independent cooler for assuring stable temperature.
Technical parameters:
Water Base
Model | Water Pump(kw) | Output Capacity(L/min) | Heating Power(kw) | Heat Conducting Medium | Highest Temperature | Dimension(mm) | Weight(kg) |
AT-6KW | 0.37 | 60 | 6 | water | 98°C | 860x300x660 | 45 |
Model | Water Pump(kw) | Output Capacity(L/min) | Heating Power(kw) | Heat Conducting Medium | Highest Temperature | Dimension(mm) | Weight(kg) |
AT-9KW | 0.37-0.75 | 85 | 9 | water | 98°C | 1100x300x660 | 65 |
Model | Water Pump(kw) | Output Capacity(L/min) | Heating Power(kw) | Heat Conducting Medium | Highest Temperature | Dimension(mm) | Weight(kg) |
AT-12KW | 0.75 | 98 | 12 | water | 98°C | 1100x300x660 | 65 |
ECO Base
Model | Water Pump(kw) | Output Capacity(L/min) | Heating Power(kw) | Heat Conducting Medium | Highest Temperature | Dimension(mm) | Weight(kg) |
AT-6KW | 0.37 | 60 | 6 | oil | 180°C | 860x300x660 | 55 |
Model | Water Pump(kw) | Output Capacity(L/min) | Heating Power(kw) | Heat Conducting Medium | Highest Temperature | Dimension(mm) | Weight(kg) |
AT-9KW | 0.37-0.75 | 85 | 9 | oil | 180°C | 1100x300x660 | 75 |
Model | Water Pump(kw) | Output Capacity(L/min) | Heating Power(kw) | Heat Conducting Medium | Highest Temperature | Dimension(mm) | Weight(kg) |
AT-12KW | 0.75 | 95 | 12 | oil | 180°C | 1100x300x660 | 85 |
