INTRODUCTION:
Cabinet Dryer is applicable for drying all kinds polymer materials and can simultaneously
dry different materials,and is very suitable for diversified raw materials of low amount or
testing mould,and is aslo applicable for preheating or drying related products such as
electtonics,motor,electroplating,coat baking,printing and tea.
PROPERTIES:
1.Adopt computerized temperature control with even drying effect;
2.The high temperature seal door keeps accordant temperature and drops heat loss;
3.Stainless steel baking plate and internal wall can prevent pollution during the drying the
drying process;
4.Optimized design,convenient for repair and maintenance;
5.Air inlet and outlet are adjustable,convenient for adjusting the air quantity;
6.24h timing device,convenient for operation and over temperature protector,avoid over
temperature drying;
7.Motor overload protection;
8.Alarm indicator,immediately react when there's fault;
9.Baking plate or entire machine are customized according to client's demands.
TECHNICAL PARAMETERS:
Model |
Electric Heating Power(kw) |
Fan Motor(kw) |
Highest Temperature(°C) |
Number of Platerack(plate) |
Material Feeding Capacity(kg) |
External Dimension(mm) |
Internal Dimension(mm) |
Net weight(kg) |
MCD-5 |
4 |
0.37 |
250 |
5 |
50 |
1200x800x610 |
660x600x550 |
150 |
MCD-9 |
4.5 |
0.37 |
250 |
9 |
90 |
1440x800x610 |
900x600x550 |
180 |
MCD-20 |
9 |
1.5 |
250 |
20 |
200 |
1700x1210x860 |
1000x990x800 |
415 |
MCD-20L |
18 |
1.5 |
250 |
20 |
350 |
1865x1800x1060 |
1200x1600x1000 |
550 |

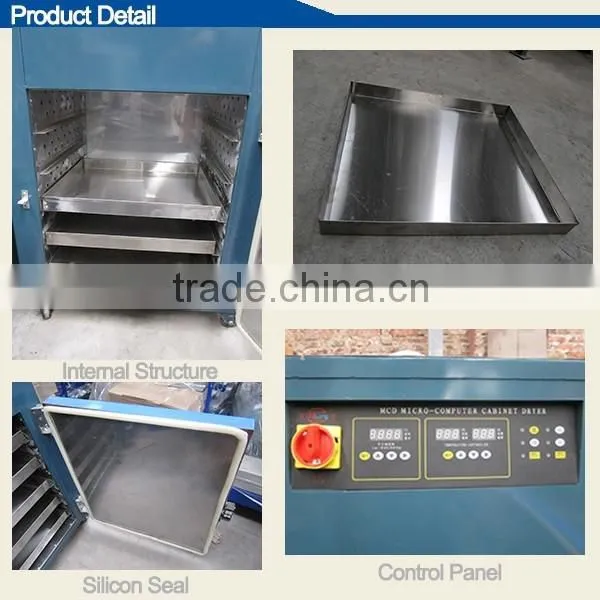

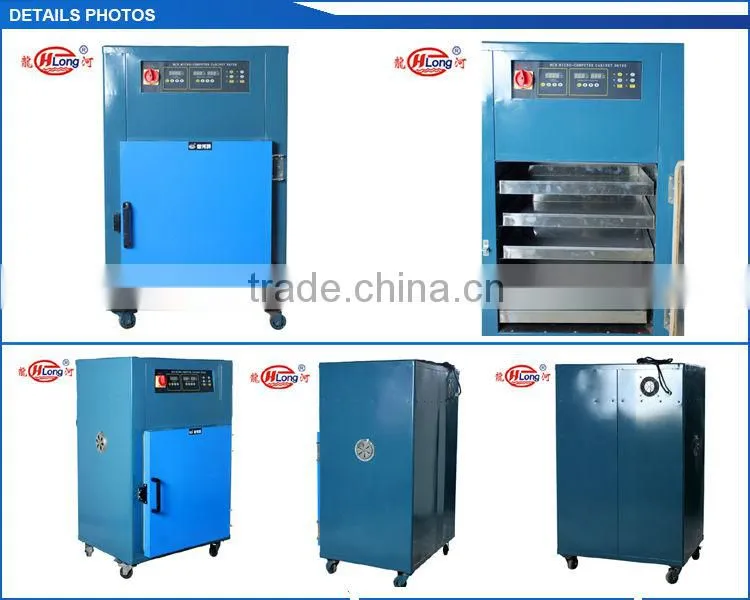

Picture detail:
