Help CenterWater Chiller Scroll Compressor 15HP for Sale
Related Products
-
15-HP Water Cooled Scroll Water Chiller for SaleUS$ 5,300 - 6,300MOQ: 1 Set -
Blow Machine Chiller Cooling MachineUS$ 1,400 - 2,000MOQ: 1 Set
-
5HP Chillers Industrial High Efficiency and Good PriceUS$ 1,400 - 2,000MOQ: 1 Set
-
5HP Industrial Air Cooler Chiller Used for Injection MachineUS$ 1,500 - 2,000MOQ: 1 Set
-
Good Efficiency Industrial Water Cooling MachineUS$ 1,400 - 2,000MOQ: 1 Set
APPLICATION AND PROPERTIES:
1.Industrial Water Chiller is mainly applicable for working according to heat exchange principle.
2.Applicable for cooling field in modern industry without influence from environmental temperature as the necessary equipment.
3.It adopts quality and newly designed compressor and famous brand water pump and features low noise,power saving and long service life.
4.It is equipped with precise electric temperature controller and is capable of precisely controlling the water temperature at +7°c-+35°c.

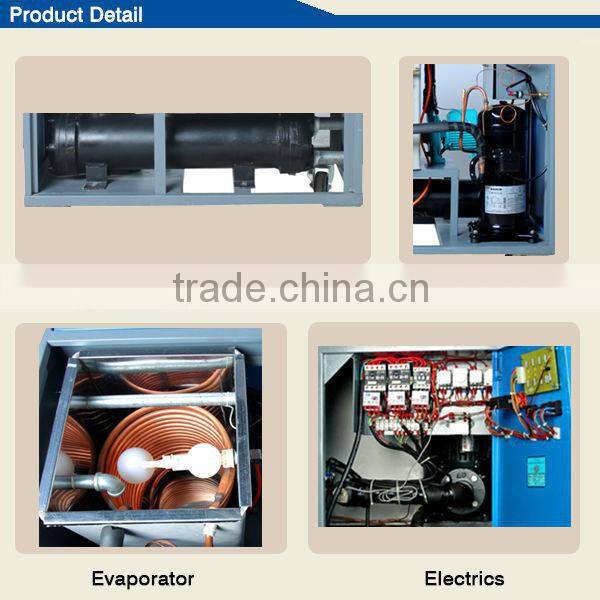

5.The condenser and heat radiator with unique design features best heat exchange efficiency.
6.The stainless steel open water tank is convenient for cleaning and maintaining .
7.The product is installed with over current protective device,high and low voltage switch and time delay devices.
8.Automatically alarm and display the fault reason when there's fault.
Technical parameters:
Model | Freezing Capacity (kcal/hr) | Water Tank Capacity(L) | Flow Rate(L/min) | Water Pump Power(kw) | Mechanical Dimension(mm) | Weight(kg) |
IC-5HP | 11300 | 75 | 80 | 0.37 | 970x580x920 | 120 |
Model | Freezing Capacity (kcal/hr) | Water Tank Capacity(L) | Flow Rate(L/min) | Water Pump Power(kw) | Mechanical Dimension(mm) | Weight(kg) |
IC-7.5HP | 16800 | 100 | 100 | 0.75 | 1270x660x1170 | 210 |
Model | Freezing Capacity (kcal/hr) | Water Tank Capacity(L) | Flow Rate(L/min) | Water Pump Power(kw) | Mechanical Dimension(mm) | Weight(kg) |
IC-10HP | 22600 | 160 | 160 | 0.75 | 1270x660x1170 | 315 |
Model | Freezing Capacity (kcal/hr) | Water Tank Capacity(L) | Flow Rate(L/min) | Water Pump Power(kw) | Mechanical Dimension(mm) | Weight(kg) |
IC-15HP | 33600 | 200 | 300 | 1.5 | 1520x635x1680 | 600 |
Model | Freezing Capacity (kcal/hr) | Water Tank Capacity(L) | Flow Rate(L/min) | Water Pump Power(kw) | Mechanical Dimension(mm) | Weight(kg) |
IC-20HP | 45200 | 240 | 450 | 2.2 | 1680x710x1680 | 750 |
