Plastic Vacuum Feeder for Loading Powder and Pellets 400kg/h

FOB Price

US$ 400 - 800 / Set

1 Set(Min. Order)

Port Guangzhou
Payment TermsT/T L/C D/P D/A Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	material loader
Place of Origin	Guangdong, China	Brand Name	LongHe
Model Number	AS-400G	Voltage	230V
Power(W)	750w	Dimension(LWH)	400X300X500mm
Weight	28kg	Certification	ISO9001 /CE
Warranty	One year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

APPLICATION AND PROPERTIES:

1, Vacuum Feeding Machine is applicable for conveying raw materials and granulated materials for avoiding pollution.

2, It features microcomputer control, simple operation and easy repair, and may automatically alarm when there isn’ t material.

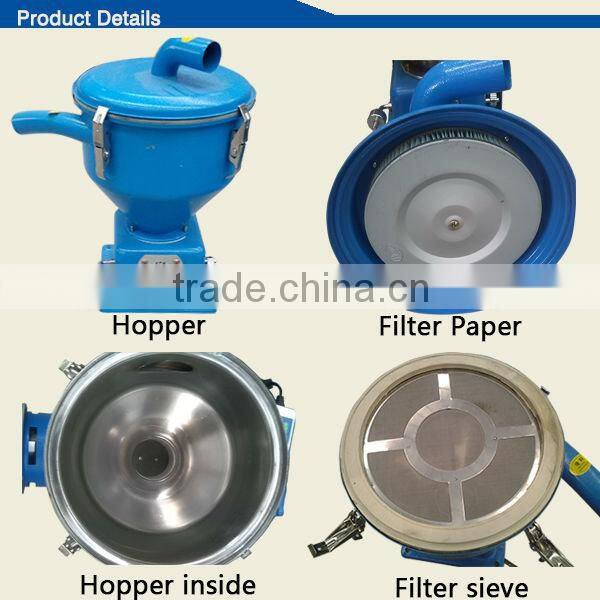

3, Stainless steel material chamber door for protecting the materials from pollution, independent filtering device.

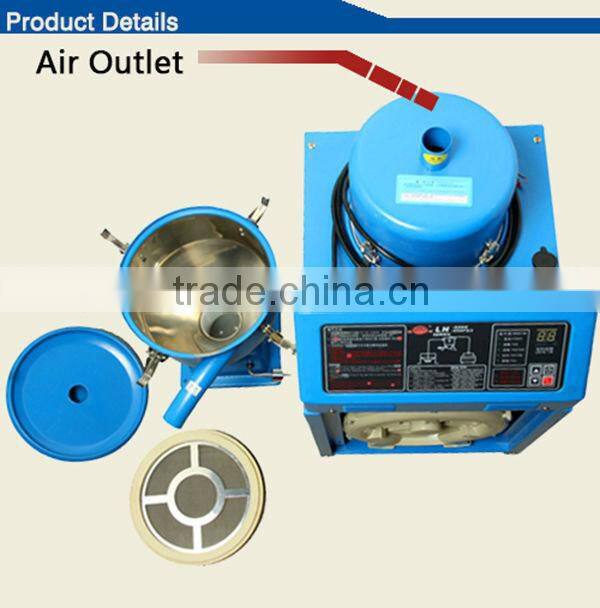

4,Convenient for removing dust, adopt double elecrtic-eye switch to control the feeding action (optional), motor protective device, filter observing window.

5,Two-Material Proportional Valve is optional for mixing new material with granulated material or immediately recycling granulated material.

TECHNICAL PARAMETERS:

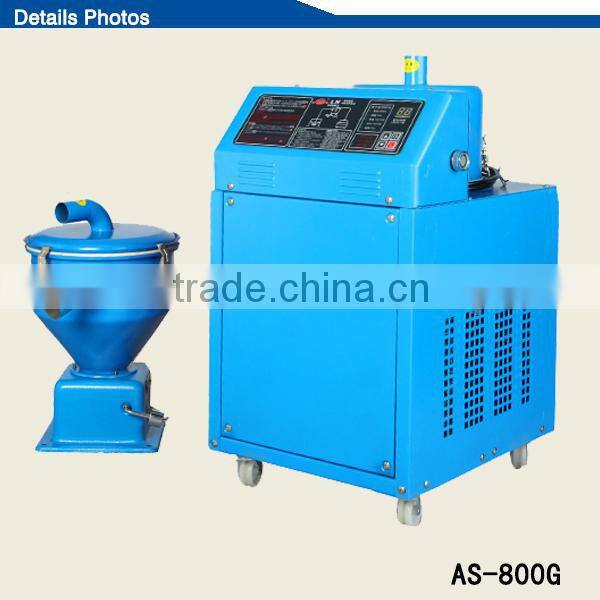

Model			AS-300G	AS-400G	AS-700G	AS-800G	AS-800G2

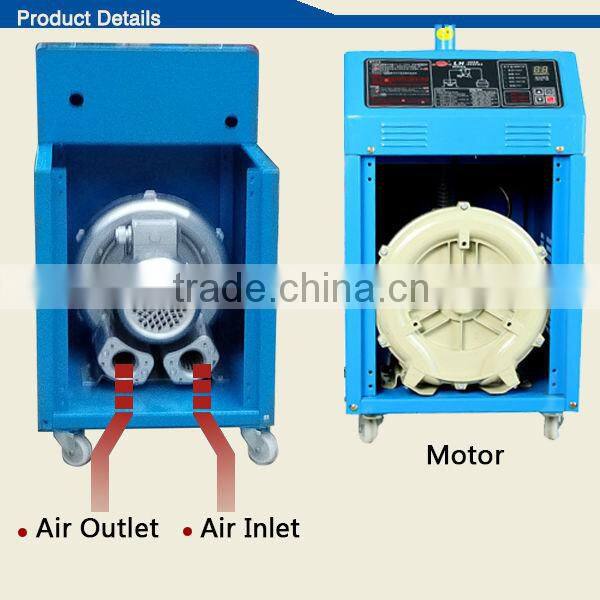

Motor power(w)	Type		Carbon Brush Type	Induction Type	Carbon Brush Type	Induction Type	Induction Type
Motor power(w)	Specification		950	750	950	750	1500
Voltage Specification			1Φ,230v,50HZ	3Φ,400v,50HZ	1Φ,230v,50HZ	3Φ,400v,50HZ	3Φ,400v,50HZ
Material Feeding Capacity(kg/h)			300	400	300	400	550
Suction Lift(M)			4	4	4	4	4
Static Air Pressure(MAX)			1500mm/HZO	1800mm/HZO	1800mm/HZO	1800mm/HZO	2400mm/HZO
Storage Tank Capacity(L)			6	10	7.5	7.5	10
Internal Diameter of Conveying Pipe(mm)			Φ38	Φ38	Φ38	Φ38	Φ38
Overall Diamension(mm)		Hopper	/	/	370x300x550	460x380x550	460x380x700
Overall Diamension(mm)		Main Unit	400x360x600	400x300x500	400x300x440	400x300x440	400x300x500
Weight(kg)			11	28	25	55	65
