Vacuum Powder Conveyor
LH series Vacuum Powder Conveyor is designed and manufactured by our company on the basis of absorbing the international technology. The simple positive pressure or ‘Blowing’ system is the most elementary of all the pneumatic conveying systems with the product being totally suspended in the air stream. These systems generally comprise a blower or fan delivering air into the pipeline, a feed device to entrain the product into the conveying air and a filter or air separator to remove the product from the air at the receiving hopper.
Technical parameters:
Model |
Motor power(kw) |
Material Feeding Capacity(kg/h) |
Suction lift(M) |
Static air pressure(MAX) |
Storage Tank Capacity(L) |
Internal Diameter of Conveying Pipe(mm) |
Overall dimension(mm) |
Weight(kg) |
LH-3.8 |
3.8kw |
600kg/h |
4m |
4500mm/HZO |
12L |
45mm |
800x400x1100mm |
60kg |

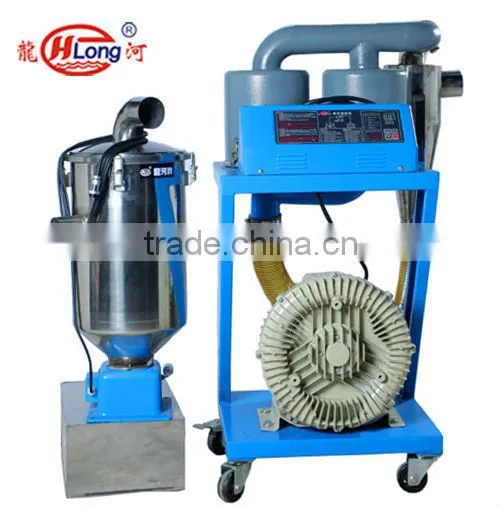

Product picture:
