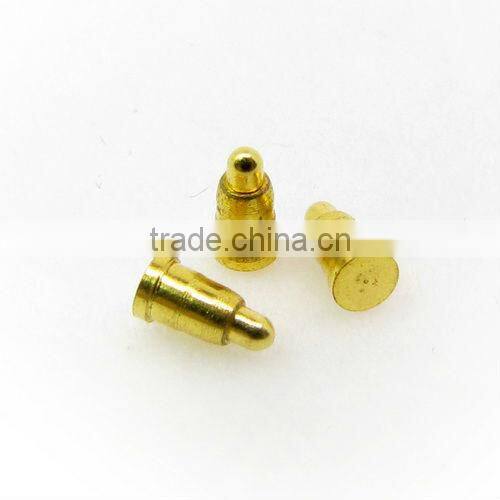

precision brass connector pogo pin test pin gold-plated
- 100000 Piece / Pieces per Month
- HK
Product Details
Place of Origin: | Guangdong, China | Brand Name: | customized | Model Number: | OEM-046 |
Type: | Other, Adapter, Spherical Radius | Application: | Power | Gender: | Male |
Product Description
Advantage of pogo pin:
Spring Loaded Pogo Pin, test pin, contact probe and receptacle are developed especially for testing electrical requirements in a veriety of applications. They provide a reliable means to test in bare or loaded printed circuit boards and other circuitries where a number of contact points must be accessed.

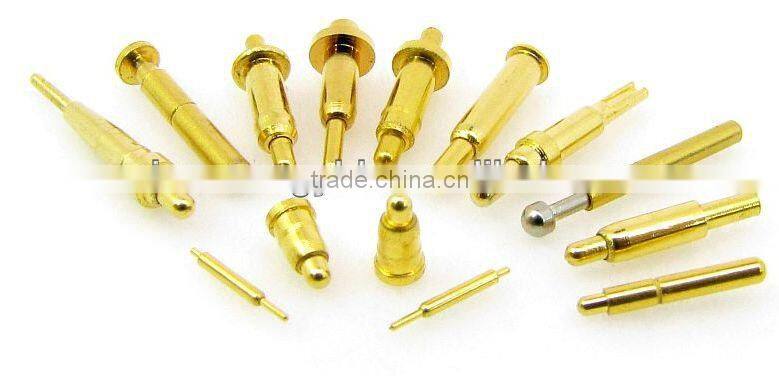

Photo of pogo pin:
Material and Plating Treatment:
Barrel: Brass, Bronze, Beryllium Copper
Plunger: Brass, Bronze, Beryllium Copper
Spring: Stainless steel, Music wire
Pleating Treatment: Nickel-plated or gold-plated over nickel
Technical Specification:
Head Style: Concave, Convex, Flat, Spear Point, Serrated, Star, Spherical Radius
Diameter of Barrel: 0.68mm, 1.01mm, 1.37mm, 2.02mm, 2.36mm
Spring Pressure: 80g, 100g, 150g, 200g, 250g
Reference: Pogo Pin connector, Test Probe, Contact Probe, pin connector, cnc machining pogo pin and probe
***********************************************************************************
<<Model: OEM-038>>
Material
Material of Plunger: Brass, gold-plated
Material of Barrel: Brass, gold-plated
Material of Spring: Stainless steel
Technical Specification
Size: 2.5x6mm
Full Travel: 2.0mm
Spring Pressure(+/- 20%): 40g
Current Rating: 2A, continuous
***********************************************************************************
<<Model: OEM-036>>
Material
Material of Plunger: Brass, gold-plated
Material of Barrel: Brass, gold-plated
Material of Spring: Stainless steel
Technical Specification
Size: 3x8mm
Full Travel: 3mm
Spring Pressure(+/- 20%): 60g
Current Rating: 5A, continuous
Contact Resistance: <40m ohm
Why Select us:
1. Good quality stainless steel product
2. Unique design
3. Professional manufacturer
4. Immediate quotation
5. Competitive price offer
6. prompt delivery
7. More than 30years experiences
What we guarantee:
F.A.Q.:
1.Q: what kind of payments do you use?
A: we accept Paypal, T/T ONLY
2.Q: how do you deliver the goods to my country?
A: we can provide international express, such as DHL, EMS, UPS, Fedex, etc. We select air freight and sea freight upon your request if the weight of goods are heavy. All the freight charge will be debit to you and your account.
3.Q: I want to buy your products, but i like another style, can you make it for me? What is your MOQ?
A: Since we are manufacturer, we can special made according to your drawing provided or actual samples, MOQ is depend.
4.Q: I want to buy your products, but i like another style, can you make it for me? What is your MOQ?
A: Since we are manufacturer, we can special made according to your drawing provided or actual samples, MOQ is 5,000pcs or above.
If you have any inquiry, please do not hesitate to contact our sales team
