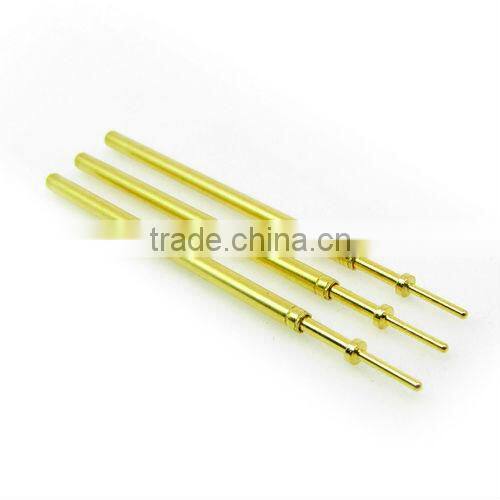

Spring Contact Probes Test Pin

Contact Probes and receptacle are developed especially for testing electrical requirements in a veriety of applications. They provide a reliable means to test in bare or loaded printed circuit boards and other circuitries where a number of contact points must be accessed.

Brass Assembly components - Test Probe, Pogo Pin and Pin Interconnect

Material: Brass, Bronze, Beryllium Copper

Request Parts: Plunger, Barrel and Spring

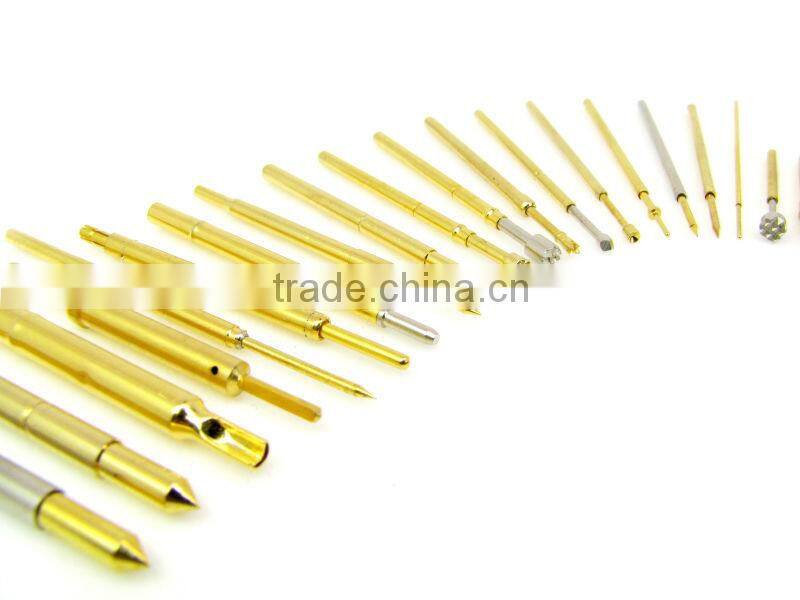

Head Style: Concave, Convex, Flat, Spear Point, Serrated, Star, Spherical Radius

Diameter of Barrel: 0.68mm, 1.01mm, 1.37mm, 2.02mm, 2.36mm

Treatment: Nickel-plated or gold-plated over nickel

Spring Pressure: 80g, 100g, 150g, 200g, 250g

Reference: Pogo Pin, Test Probe, Contact Probe, pin connector, cnc machining pogo pin and probe

***********************************************************************************

<<Model: OEM-012 - Spherical Radius >>

Material

Material of Plunger: Full-hard Beryllium Copper, gol-plated over Nickel-plated

Material of Barrel: Brass, gold-plated

Material of Spring: Stainless steel

Material of Receptacle: Brass-plated

Technical Specification

Recommend min. Center: 2.54mm (10mil)

Full Travel: 6.30mm

Spring Pressure(+/- 20%): 150g

Current Rating: 3A, continuous

Contact Resistance: 50m ohm

Mounting Hole Size: Dia. 1.75mm

***********************************************************************************

<<Model: OEM-011 - Spherical Radius >>

Material

Material of Plunger: Full-hard Beryllium Copper, gol-plated over Nickel-plated

Material of Barrel: Brass, gold-plated

Material of Spring: Stainless steel

Material of Receptacle: Brass-plated

Technical Specification

Recommend min. Center: 1.90mm (75mil)

Full Travel: 2.54mm

Spring Pressure(+/- 20%): 80g

Current Rating: 3A, continuous

Contact Resistance: 50m ohm

Mounting Hole Size: Dia. 1.35mm

*******************************************************************************************

Group Pin:

 ********************************************************************************************************

Why you select us:

1. Good quality stainless steel product
2. Unique design
3. Immediate quotation
4. Competitive price offer

5. prompt delivery

****************************************************************************************
