Specifications
AMS4928 Titanium disc/disk for IndustryMaterial:Gr1,Gr2,Gr5,Gr7,Gr9,Gr12
Size: Dia(50~900) X Height(40~100)mm

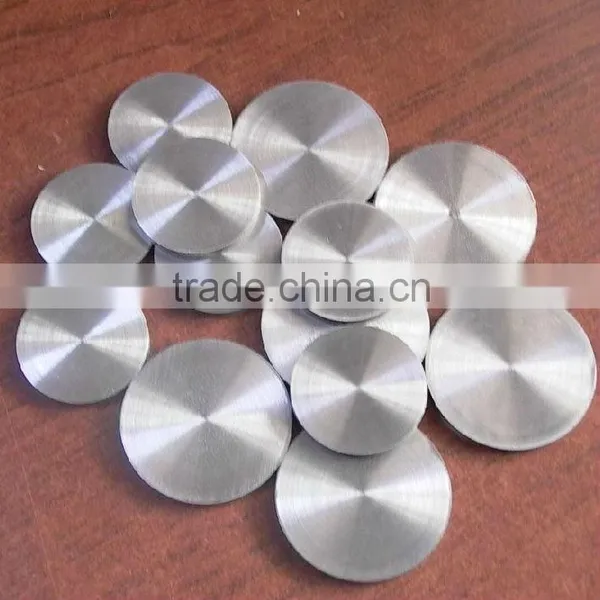

AMS4928 Titanium disc /disk for Industry
1. Specification
Item name |
Titanium Disc |
Standard |
ASTM B381/348,F67/136,AMS 4928,DIN,JIS |
Material |
Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr12 |
Quality control |
Ultrasonic testing |
Packaging |
Plywood case lined with foam or as per clients requirements |
Payment |
T/T in advance or Irrevocable L/C at sight |
MOQ |
10Kg |
Leadtime |
Within 10~15 days after deposit |
2. Manufacturable Scope
Product Names |
Dimensions |
Grade |
Standards |
||
Outer Diameter |
Inner Diameter |
Height |
|||
(mm) |
(mm) |
(mm) |
|||
Disc |
50~150 |
/ |
20~140 |
GR1,GR2,GR5,GR7,GR9,GR12,GR23 |
ASTM B381 |
150~300 |
/ |
20~140 |
|||
300~500 |
/ |
25~150 |
|||
500~600 |
/ |
30~110 |
|||
3.Chemical requirements
|
N |
C |
H |
Fe |
O |
Al |
V |
Pa |
Mo |
Ni |
Ti |
Gr 1 |
0.03 |
0.08 |
0.015 |
0.20 |
0.18 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr 2 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
/ |
/ |
bal |
Gr 5 |
0.05 |
0.08 |
0.015 |
0.40 |
0.20 |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
bal |
Gr 7 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
0.12~0.25 |
/ |
/ |
bal |
Gr 9 |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
2.5~3.5 |
2.0~3.0 |
/ |
/ |
/ |
bal |
Gr12 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
/ |
/ |
/ |
0.2~0.4 |
0.6~0.9 |
bal |
