Specifications
Titanium finned tube(Gr1,Gr2)Base tube:titanium tube
Outside diameter:25-219mm
Length :less than 18000mm
W.T.:1.5-25mm

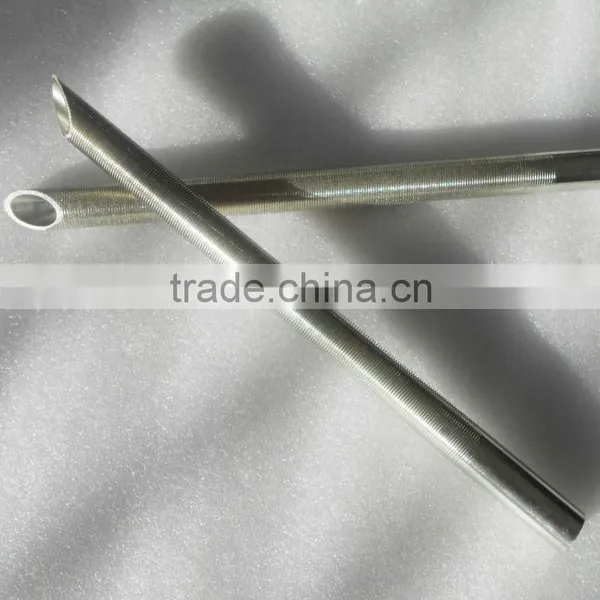

Titanium fin tube is processed into fin shape, using titanium as material.
Titanium and titanium alloy high efficiency heat exchange tube
It has larger surface area than bare tube. It can be processed spiral fins to increase heat transfer area and form secondary flow of turbulance, so that the heat transfer efficiency inside the tube and the total heat transfer efficiency is improved largely. And the heat transfer efficiency of the titanium fin tube is 2 times than the titanium bare tube. Titanium tube can be used in bad water quality, for example, polluted wayer and seawater, or used in the occasions which requires the tube have longer application life and higher safety, because its strong corrosion resistance.
Ti fin tube Parameter
| bare tube | Processing section outside Parameter | Processing section inside Parameter | ||||||
| O.D | Thk | O.D | Fin height | Fin Bottom Thk | Fpi | Inner Fin Height | Inner Fin No | Helix angel |
| 19 | 1.2 | 18.75 | 0.58 | >0.65 | 33 | 0.25 | 30 | 45 |
| 19 | 1.3 | 18.80 | 0.58 | > 0.70 | 33 | 0.25 | 30 | 45 |
TB fin tube Parameter
| bare tube | Processing section outside Parameter | Processing section inside Parameter | ||||||
| O.D | Thk | O.D | Fin height | Fin Bottom Thk | Fpi | Inner Fin Height | Inner Fin No | Helix angel |
| 19 | 1.3 | 18.75 | 0.6 | >0.60 | 33 | / | / | / |
| 19 | 1.5 | 18.80 | 1.0 | >0.60 | 26 | / | / | / |
We can process according to customer's required drawing.
